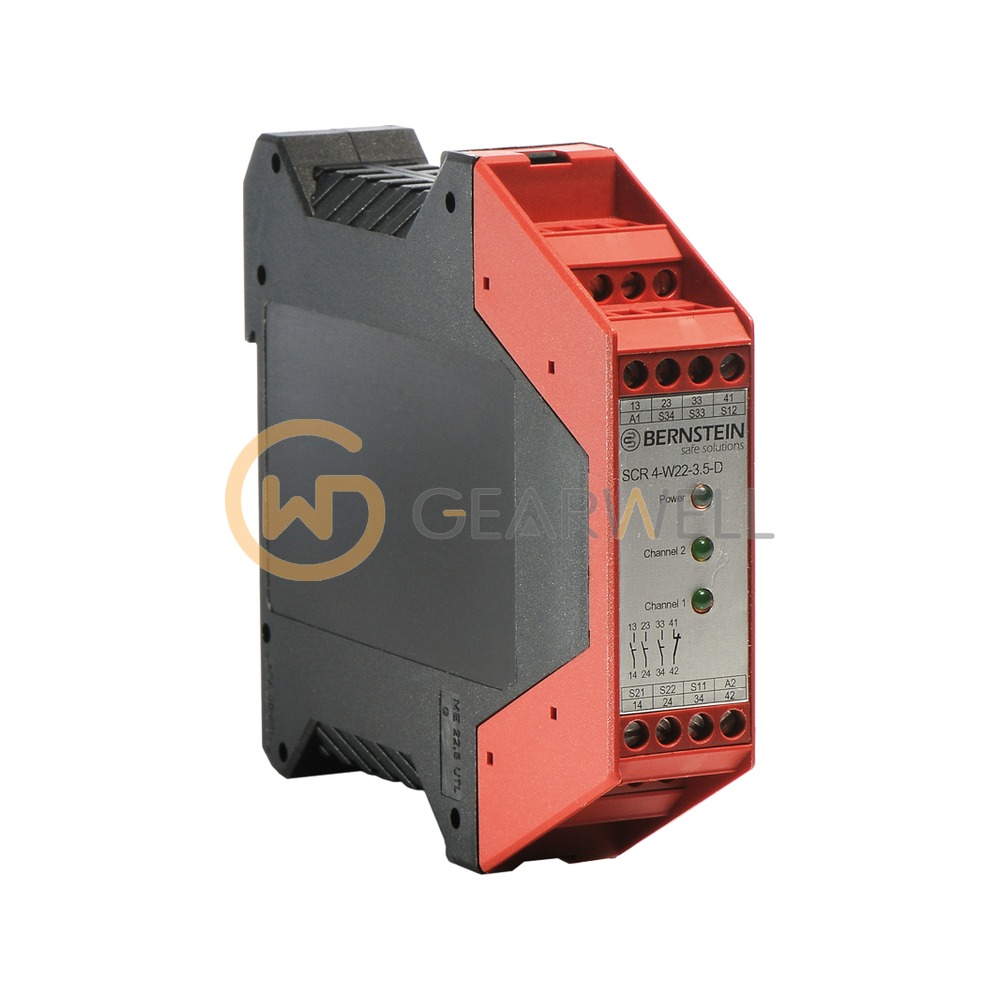

BERNSTEIN SCR 4-W22-3.5-D 6075111074 SCR Series Safety Relay
- Brand
- BERNSTEIN
- Model
- SCR 4-W22-3.5-D
- GEARWELL SKU
- GWP-000009560
- Category
- Machine Safety & Vision
Key specifications
- Supply voltage
- 24 V AC/DC
- Power consumption
- 24 V DC: 3 W; 24 V AC: 5 VA
- Dimensions (W x H x D)
- 22.5 x 114.5 x 99 mm
- Contact configuration
- 3 N.O. / 1 N.C.
- Operating temperature
- -25 to +55 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BERNSTEIN SCR 4-W22-3.5-D 6075111074 SCR Series Safety Relay |
|---|---|
| Brand | BERNSTEIN |
| Model | SCR 4-W22-3.5-D |
| Category | Machine Safety & Vision |
| Supply voltage | 24 V AC/DC |
| Power consumption | 24 V DC: 3 W; 24 V AC: 5 VA |
| Dimensions (W x H x D) | 22.5 x 114.5 x 99 mm |
| Contact configuration | 3 N.O. / 1 N.C. |
| Operating temperature | -25 to +55 °C |
| Safety level (EN ISO 13849-1) | PL e, Cat. 4 |
| Degree of protection (enclosure) | IP40 |
