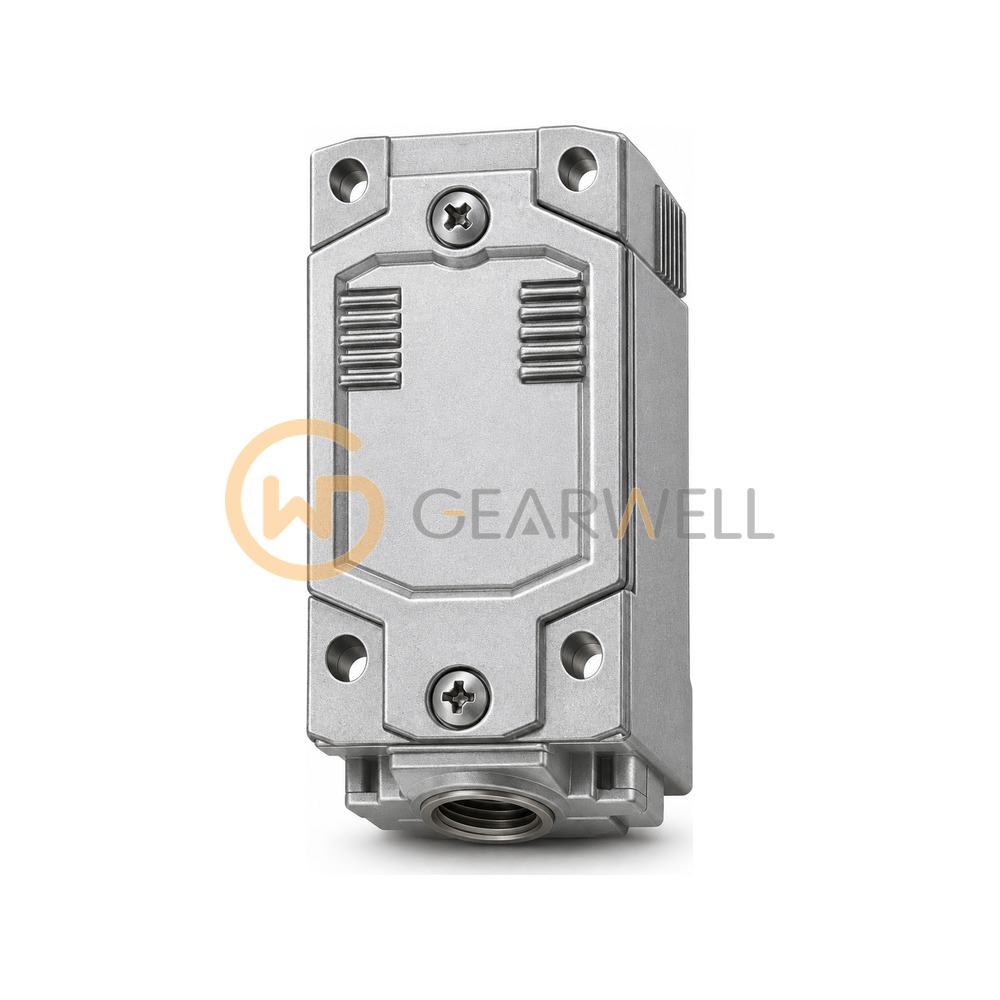

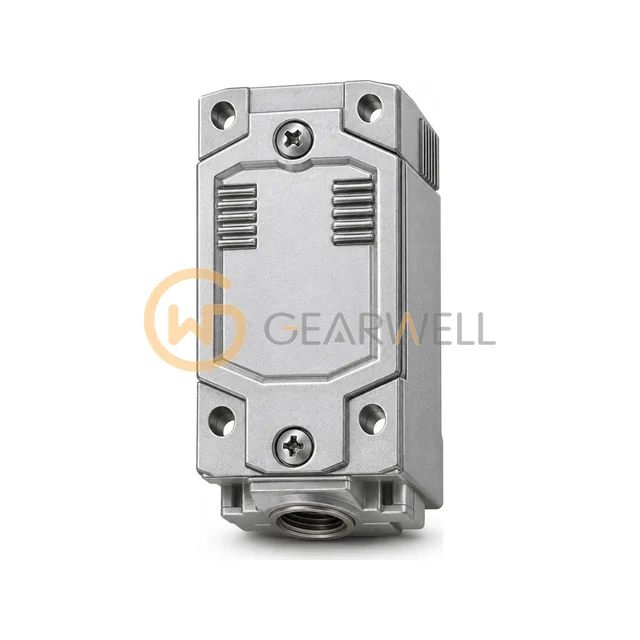

BERNSTEIN MN78-20 M20 MN78 Metal Body Limit Switch
- Brand
- BERNSTEIN
- Model
- MN78-20 M20
- GEARWELL SKU
- GWP-000016509
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Enclosure
- Die-cast aluminium, sheet aluminium cover
- Protection
- IP66 / IP67, Type 4X
- Cable entry
- 1 x M20 x 1.5
- Contact type
- 2 N.C. (direct opening action)
- Article number
- 6087000105
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BERNSTEIN MN78-20 M20 MN78 Metal Body Limit Switch |
|---|---|
| Brand | BERNSTEIN |
| Model | MN78-20 M20 |
| Category | Proximity & Photoelectric Sensors |
| Enclosure | Die-cast aluminium, sheet aluminium cover |
| Protection | IP66 / IP67, Type 4X |
| Cable entry | 1 x M20 x 1.5 |
| Contact type | 2 N.C. (direct opening action) |
| Article number | 6087000105 |
| Type designation | MN78-20 M20 |
| Utilization category | AC-15 240 V / 3 A; DC-13 24 V / 1.5 A |
| Operating temperature | -30 to +75 °C |
| Rated operational voltage Ue | 240 V AC / 24 V DC |
| Conventional thermal current Ithe | 5 A |
