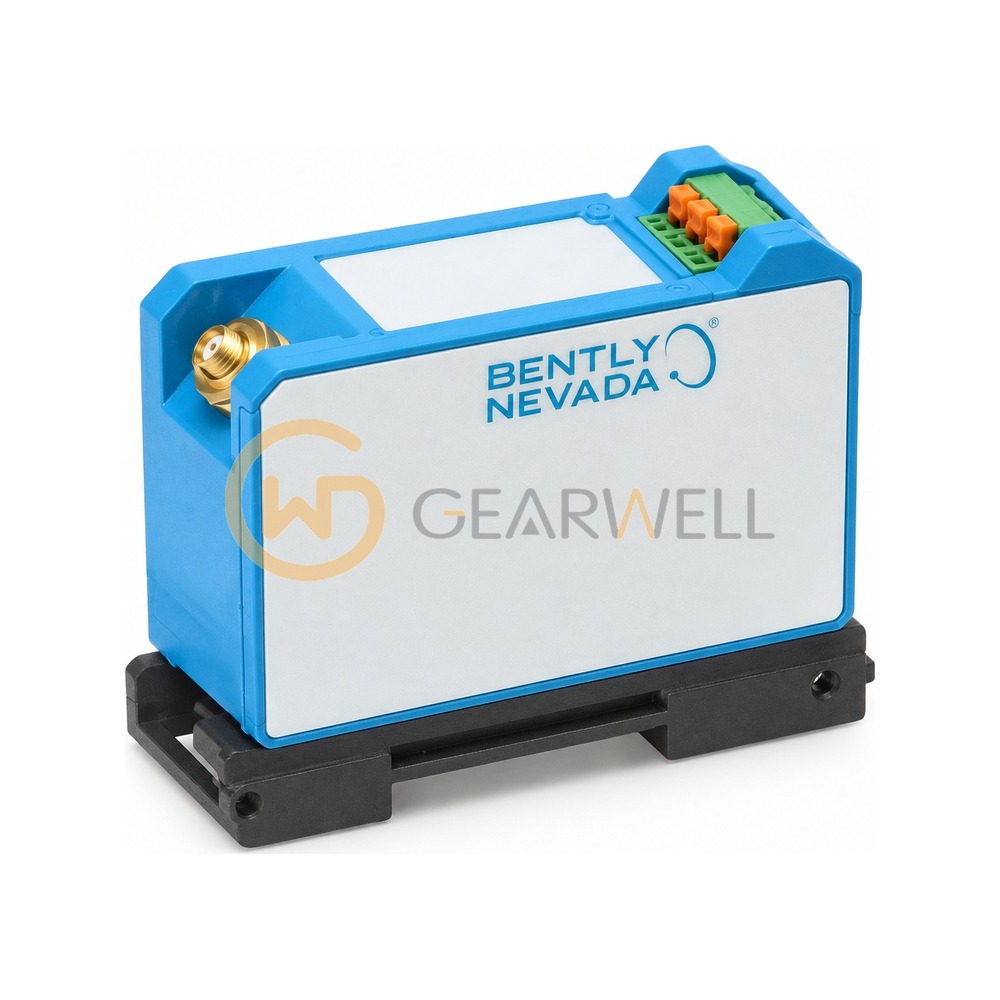

Bently Nevada 330180-90-05 3300 XL Proximitor Sensor
- Brand
- Bently Nevada
- Model
- 330180-90-05
- GEARWELL SKU
- GWP-000033478
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Power
- -17.5 to -26 Vdc (non-incendive); -23 to -26 Vdc with barriers
- Evidence
- Bently Nevada datasheet 141194 Rev. AN
- Base part
- 330180 (3300 XL Proximitor Sensor)
- Linear range
- 2 mm (80 mils)
- Scale factor
- 7.87 V/mm (200 mV/mil)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Bently Nevada 330180-90-05 3300 XL Proximitor Sensor |
|---|---|
| Brand | Bently Nevada |
| Model | 330180-90-05 |
| Category | Proximity & Photoelectric Sensors |
| Power | -17.5 to -26 Vdc (non-incendive); -23 to -26 Vdc with barriers |
| Evidence | Bently Nevada datasheet 141194 Rev. AN |
| Base part | 330180 (3300 XL Proximitor Sensor) |
| Linear range | 2 mm (80 mils) |
| Scale factor | 7.87 V/mm (200 mV/mil) |
| Output resistance | 50 Ω |
| Agency approval (BB=05) | CSA, ATEX, IECEx Approvals |
| Proximitor sensor weight | 246 g |
| Total length and mounting (AA=90) | 9.0 meters system length, panel mount |
