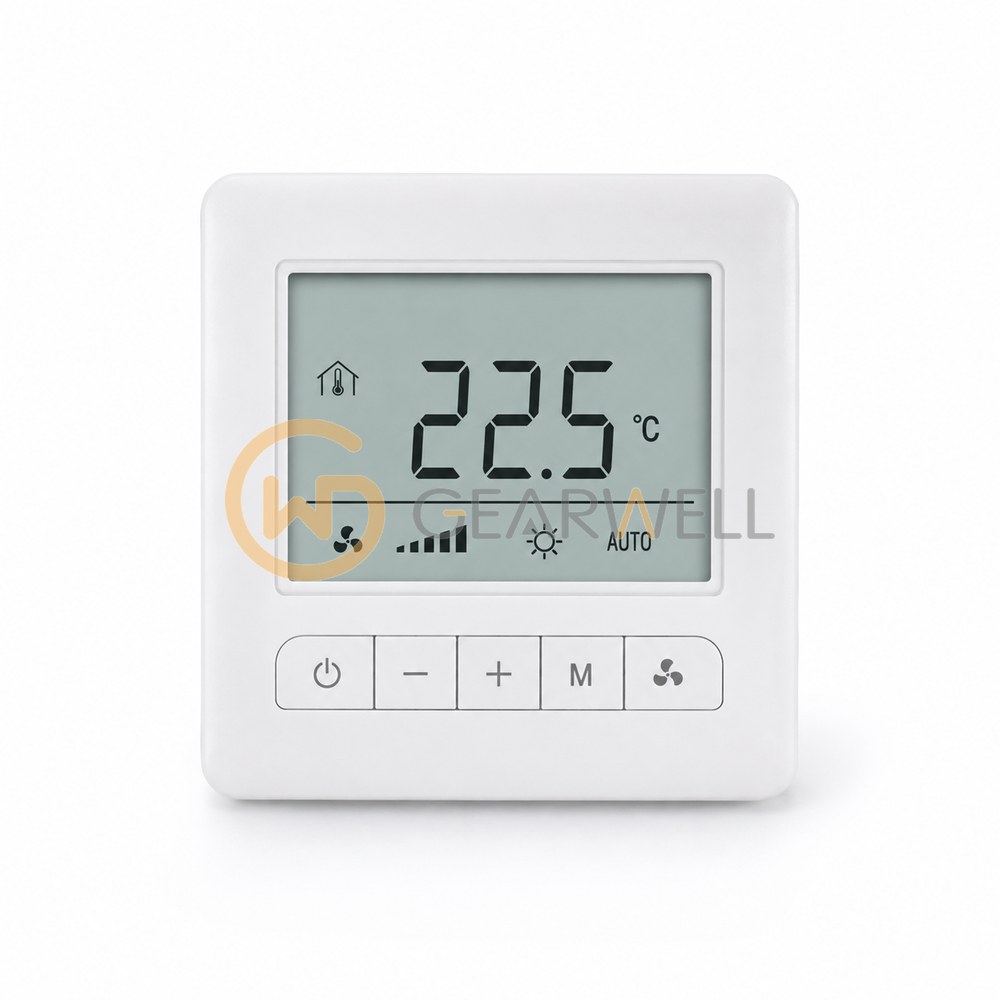

BELIMO EXT-T24-D201 LCD Temperature Controller
- Brand
- BELIMO
- Model
- EXT-T24-D201
- GEARWELL SKU
- GWP-000002458
- Category
- Equipment Spare Parts
Key specifications
- Temperature sensor
- 10 kΩ NTC at 25 °C, built-in and external
- Dimensions
- 86 × 86 × 23 mm
- Product type
- LCD temperature controller
- Control output
- 2–10 VDC, 0–10 VDC, 4–20 mA or 0–20 mA selectable
- Nominal voltage
- 24 VAC, 50/60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BELIMO EXT-T24-D201 LCD Temperature Controller |
|---|---|
| Brand | BELIMO |
| Model | EXT-T24-D201 |
| Category | Equipment Spare Parts |
| Temperature sensor | 10 kΩ NTC at 25 °C, built-in and external |
| Dimensions | 86 × 86 × 23 mm |
| Product type | LCD temperature controller |
| Control output | 2–10 VDC, 0–10 VDC, 4–20 mA or 0–20 mA selectable |
| Nominal voltage | 24 VAC, 50/60 Hz |
| Power consumption | Less than 1 W |
| Display and setpoint range | 0–99.5 °C |
| Degree of protection | IP20 |
