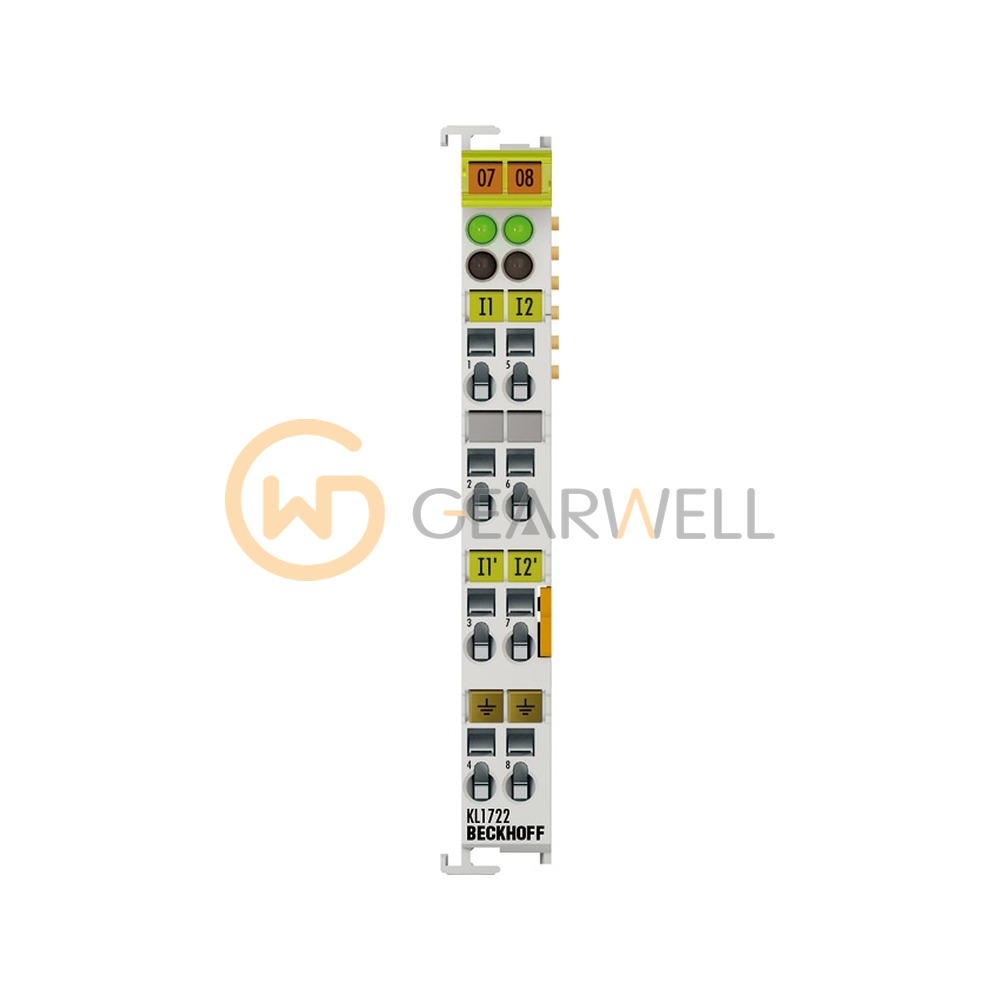

BECKHOFF KL1722 2-Channel Digital Input Bus Terminal
- Brand
- BECKHOFF
- Model
- KL1722
- GEARWELL SKU
- GWP-000008175
- Category
- PLCs & I/O
Key specifications
- Input filter
- typ. 10 ms
- Input current
- > 3 mA, typ. 6 mA
- Nominal voltage
- 120/230 V AC
- Switching times
- 10 ms
- Number of inputs
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff KL1722 is a 2-channel digital input Bus Terminal (K-bus) for 120/230 V AC signals, with 2-wire connection and a typical 10 ms input filter. It has no power contacts. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF KL1722 2-Channel Digital Input Bus Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | KL1722 |
| Category | PLCs & I/O |
| Input filter | typ. 10 ms |
| Input current | > 3 mA, typ. 6 mA |
| Nominal voltage | 120/230 V AC |
| Switching times | 10 ms |
| Number of inputs | 2 |
| Electrical isolation | 500 V (K-bus/mains voltage); 3750 V AC, 1 min. |
| Connection technology | 2-wire |
| Current consumption K-bus | typ. 3 mA |
