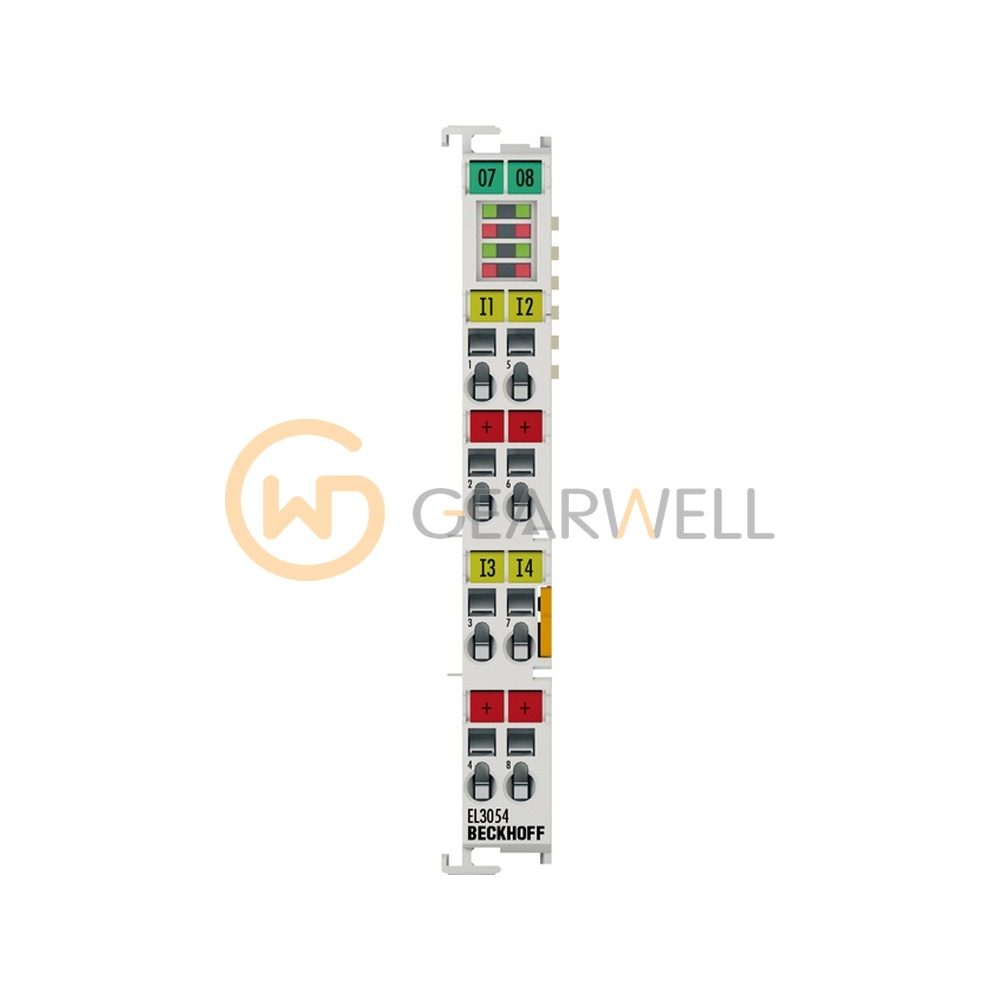

BECKHOFF EL3054 EtherCAT 4-Channel Analog Input Terminal
- Brand
- BECKHOFF
- Model
- EL3054
- GEARWELL SKU
- GWP-000007995
- Category
- PLCs & I/O
Key specifications
- Resolution
- 12 bit (16 bit presentation incl. sign)
- Signal current
- 4…20 mA
- Conversion time
- 0.625 ms default setting, configurable, multiplex
- Number of inputs
- 4 (single-ended)
- Dielectric strength
- max. 30 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL3054 is a 4-channel analog input terminal for EtherCAT for 4 to 20 mA single-ended signals, with 12-bit resolution and an error below ±0.3 % of full scale. FIR/IIR filters and limit value monitoring can be activated. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL3054 EtherCAT 4-Channel Analog Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL3054 |
| Category | PLCs & I/O |
| Resolution | 12 bit (16 bit presentation incl. sign) |
| Signal current | 4…20 mA |
| Conversion time | 0.625 ms default setting, configurable, multiplex |
| Number of inputs | 4 (single-ended) |
| Dielectric strength | max. 30 V |
| Internal resistance | typ. 85 Ω |
| Measurement error/uncertainty | < ±0.3% (relative to full scale value) |
| Input filter cut-off frequency | 1 kHz |
