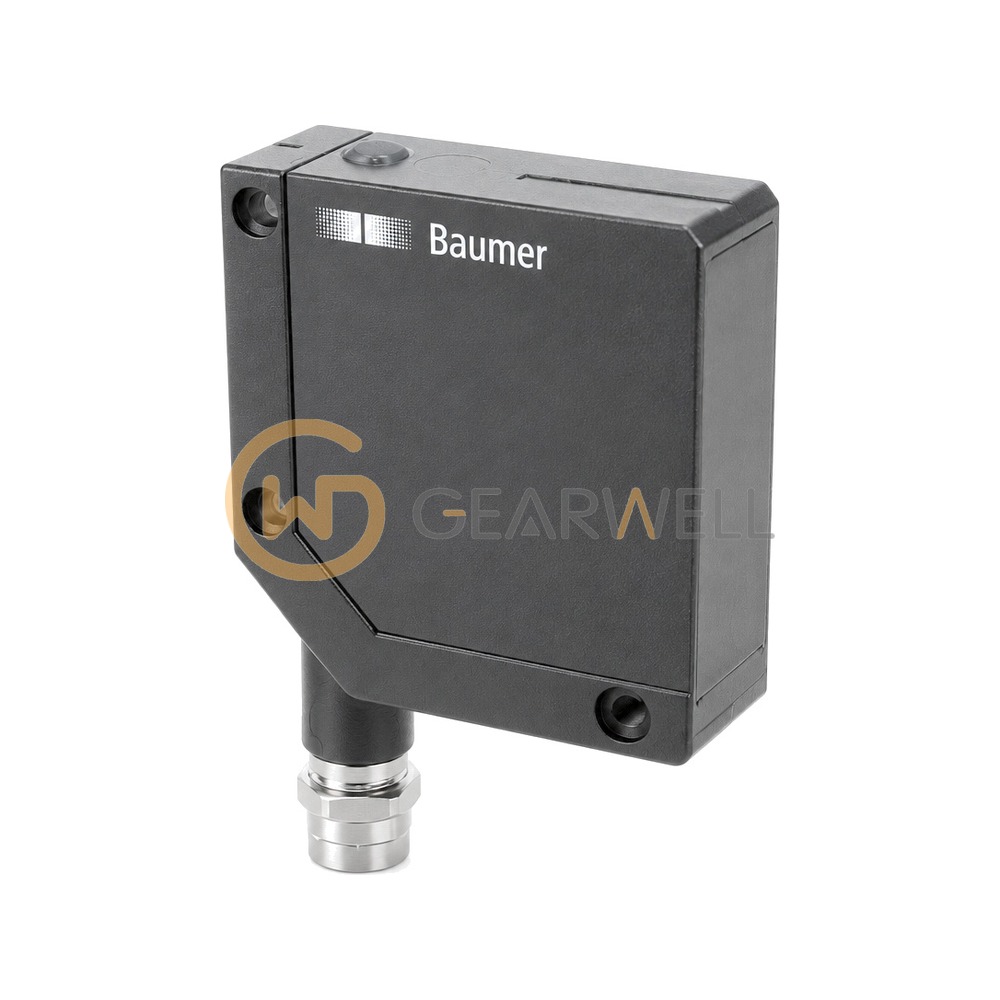

BAUMER FPDM 12P5102/S35A Retro-Reflective Photoelectric Sensor
- Brand
- BAUMER
- Model
- FPDM 12P5102/S35A
- GEARWELL SKU
- GWP-000033411
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Type
- Retro-reflective sensor with polarization filter
- Connection
- Connector M8 4 pin
- Dimensions
- 12.4 x 35 x 35 mm
- Light source
- Pulsed red LED, 660 nm
- Response time
- < 1 ms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BAUMER FPDM 12P5102/S35A Retro-Reflective Photoelectric Sensor |
|---|---|
| Brand | BAUMER |
| Model | FPDM 12P5102/S35A |
| Category | Proximity & Photoelectric Sensors |
| Type | Retro-reflective sensor with polarization filter |
| Connection | Connector M8 4 pin |
| Dimensions | 12.4 x 35 x 35 mm |
| Light source | Pulsed red LED, 660 nm |
| Response time | < 1 ms |
| Article number | 10243264 |
| Output circuit | PNP, 100 mA |
| Nominal range Sn | 5.5 m |
| Protection class | IP 67 |
| Type designation | FPDM 12P5102/S35A |
| Voltage supply range | 10 … 30 VDC |
