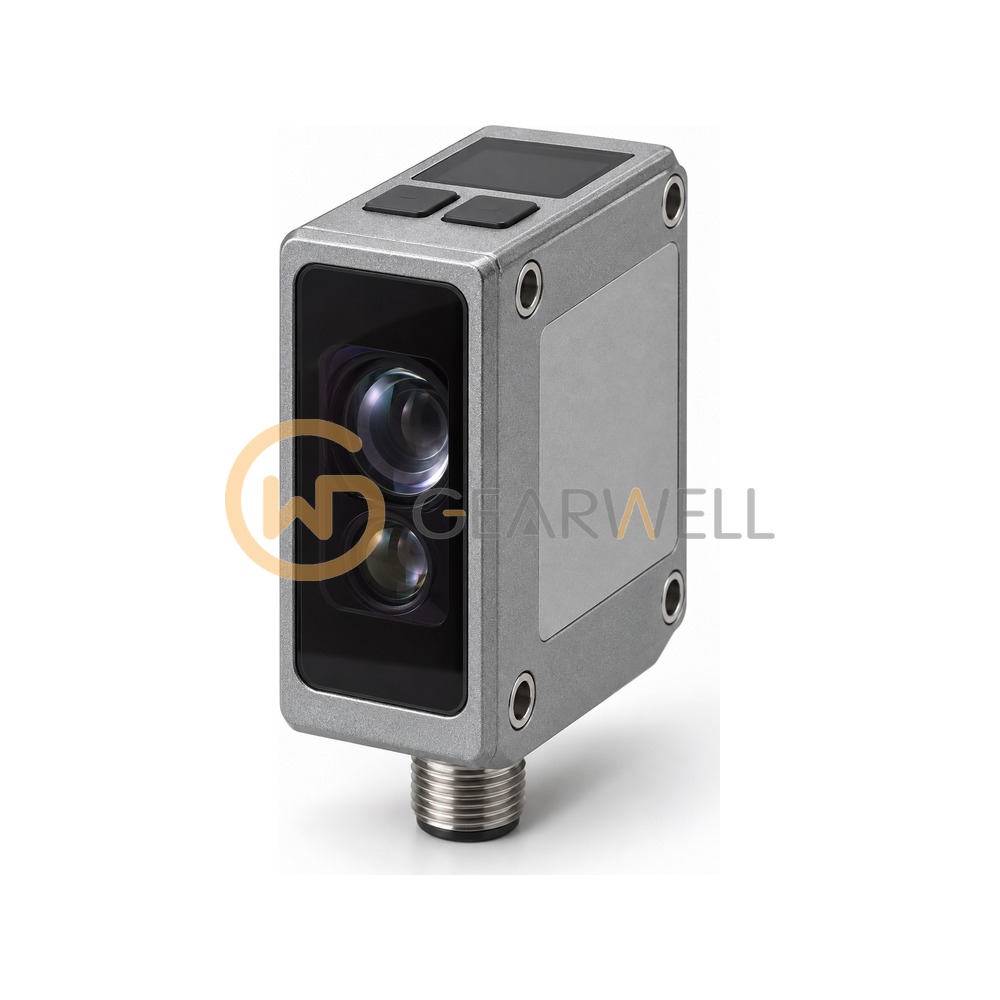

BALLUFF BOD 63M-LA02-S115 BOD000U Laser Distance Sensor
- Brand
- BALLUFF
- Model
- BOD 63M-LA02-S115
- GEARWELL SKU
- GWP-000012711
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Principle
- Light time-of-flight, red laser
- Connection
- M12 male, 8-pin
- Order code
- BOD000U
- Analog output
- 0...10 V
- Measuring range
- 200...2000 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BALLUFF BOD 63M-LA02-S115 BOD000U Laser Distance Sensor |
|---|---|
| Brand | BALLUFF |
| Model | BOD 63M-LA02-S115 |
| Category | Proximity & Photoelectric Sensors |
| Principle | Light time-of-flight, red laser |
| Connection | M12 male, 8-pin |
| Order code | BOD000U |
| Analog output | 0...10 V |
| Measuring range | 200...2000 mm |
| Housing material | Aluminium |
| Type designation | BOD 63M-LA02-S115 |
| Operating voltage | 15...30 VDC |
| Switching outputs | 2 x PNP NO |
