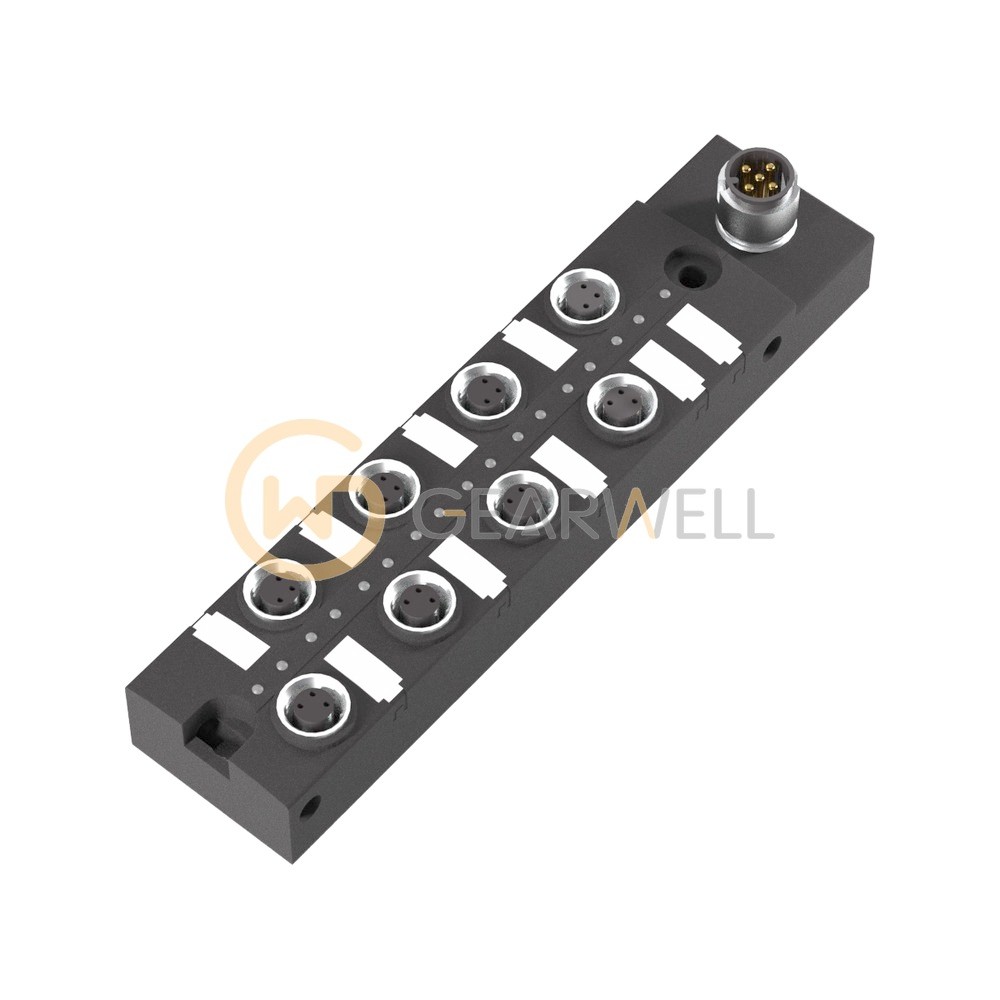

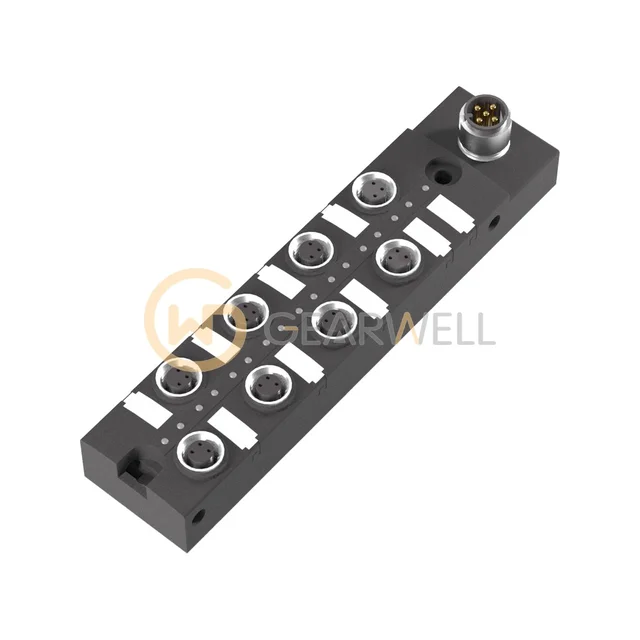

BALLUFF BNI IOL-102-000-K019 BNI000R IO-Link Sensor/Actuator Hub
- Brand
- BALLUFF
- Model
- BNI IOL-102-000-K019
- GEARWELL SKU
- GWP-000013505
- Category
- Industrial Communication
Key specifications
- Dimension
- 30 x 24 x 129.5 mm
- Interface
- IO-Link 1.0
- Order code
- BNI000R
- Digital inputs
- 8x PNP, Type 2
- Connection (COM 1)
- M12x1-Male, 4-pin, A-coded
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BALLUFF BNI IOL-102-000-K019 BNI000R IO-Link Sensor/Actuator Hub |
|---|---|
| Brand | BALLUFF |
| Model | BNI IOL-102-000-K019 |
| Category | Industrial Communication |
| Dimension | 30 x 24 x 129.5 mm |
| Interface | IO-Link 1.0 |
| Order code | BNI000R |
| Digital inputs | 8x PNP, Type 2 |
| Connection (COM 1) | M12x1-Male, 4-pin, A-coded |
| Connection slots | 8x M8x1-Female, 3-pin |
| Housing material | PBT, GF |
| Operating voltage Ub | 18...30.2 VDC |
| Configurable inputs/outputs | no, Current sum US, sensor: 4 A |
