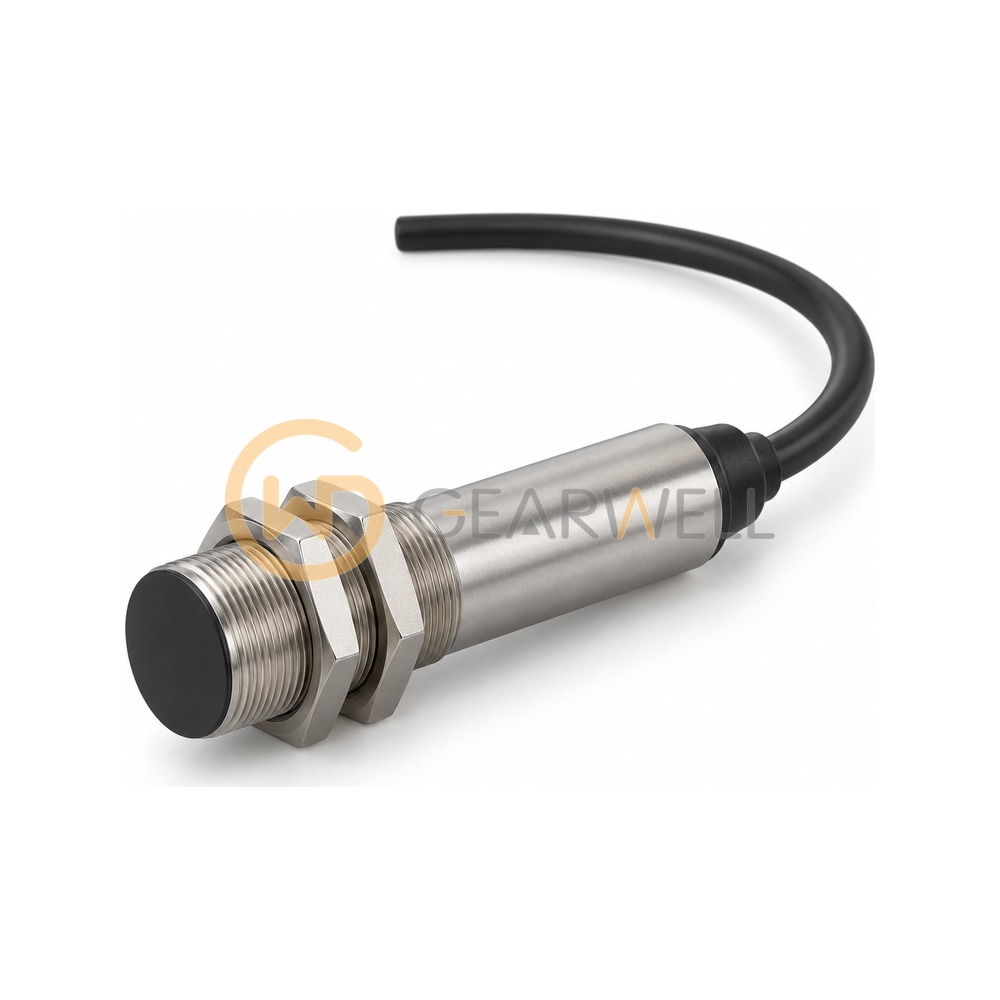

BALLUFF BES 516-3019-BO-C Inductive Proximity Sensor
- Brand
- BALLUFF
- Model
- BES 516-3019-BO-C
- GEARWELL SKU
- GWP-000012693
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- 4 mm
- Dimensions
- Ø 12 x 60 mm
- Order code
- BES018P / BES018T
- Installation
- non-flush
- Housing style
- M12x1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BALLUFF BES 516-3019-BO-C Inductive Proximity Sensor |
|---|---|
| Brand | BALLUFF |
| Model | BES 516-3019-BO-C |
| Category | Proximity & Photoelectric Sensors |
| Range | 4 mm |
| Dimensions | Ø 12 x 60 mm |
| Order code | BES018P / BES018T |
| Installation | non-flush |
| Housing style | M12x1 |
| Switching output | PNP NC |
| Type designation | BES 516-3019-BO-C-02 / -05 |
| Operating voltage | 10...30 VDC |
| Switching frequency | 1200 Hz |
| Cable length options | -02 = 2 m PVC (BES018P) / -05 = 5 m PVC (BES018T) (specify on order) |
