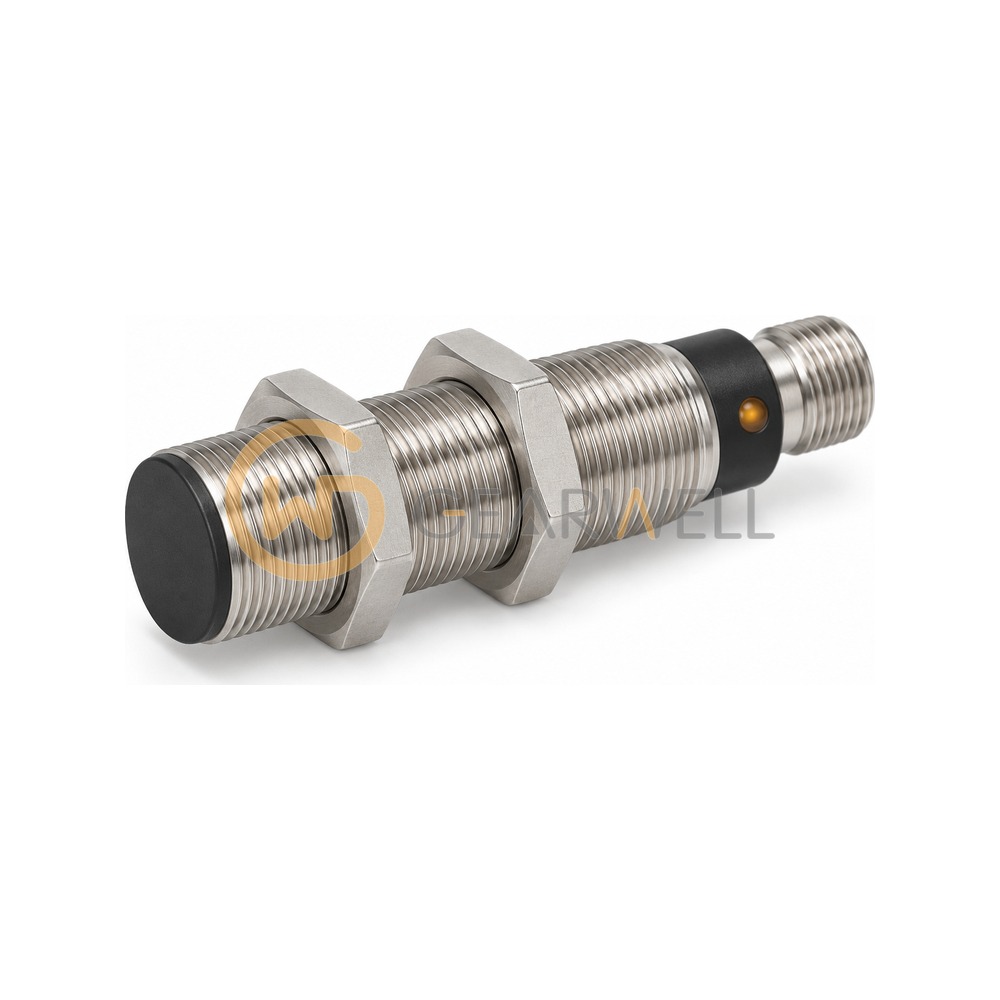

BALLUFF BCS M12B4G2-PSC40D-S04K BCS00P0 Capacitive Proximity Sensor
- Brand
- BALLUFF
- Model
- BCS M12B4G2-PSC40D-S04K
- GEARWELL SKU
- GWP-000012681
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- 1...4 (adjustable) mm
- Connection
- M12x1 male, 3-pin
- Dimensions
- Ø 12 x 75 mm
- Order code
- BCS00P0
- Installation
- flush
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BALLUFF BCS M12B4G2-PSC40D-S04K BCS00P0 Capacitive Proximity Sensor |
|---|---|
| Brand | BALLUFF |
| Model | BCS M12B4G2-PSC40D-S04K |
| Category | Proximity & Photoelectric Sensors |
| Range | 1...4 (adjustable) mm |
| Connection | M12x1 male, 3-pin |
| Dimensions | Ø 12 x 75 mm |
| Order code | BCS00P0 |
| Installation | flush |
| Switching output | PNP NO |
| Type designation | BCS M12B4G2-PSC40D-S04K |
| Operating voltage | 10...30 VDC |
| Switching frequency | 100 Hz |
| Housing / sensing face | Stainless steel 1.4305 / PBT |
