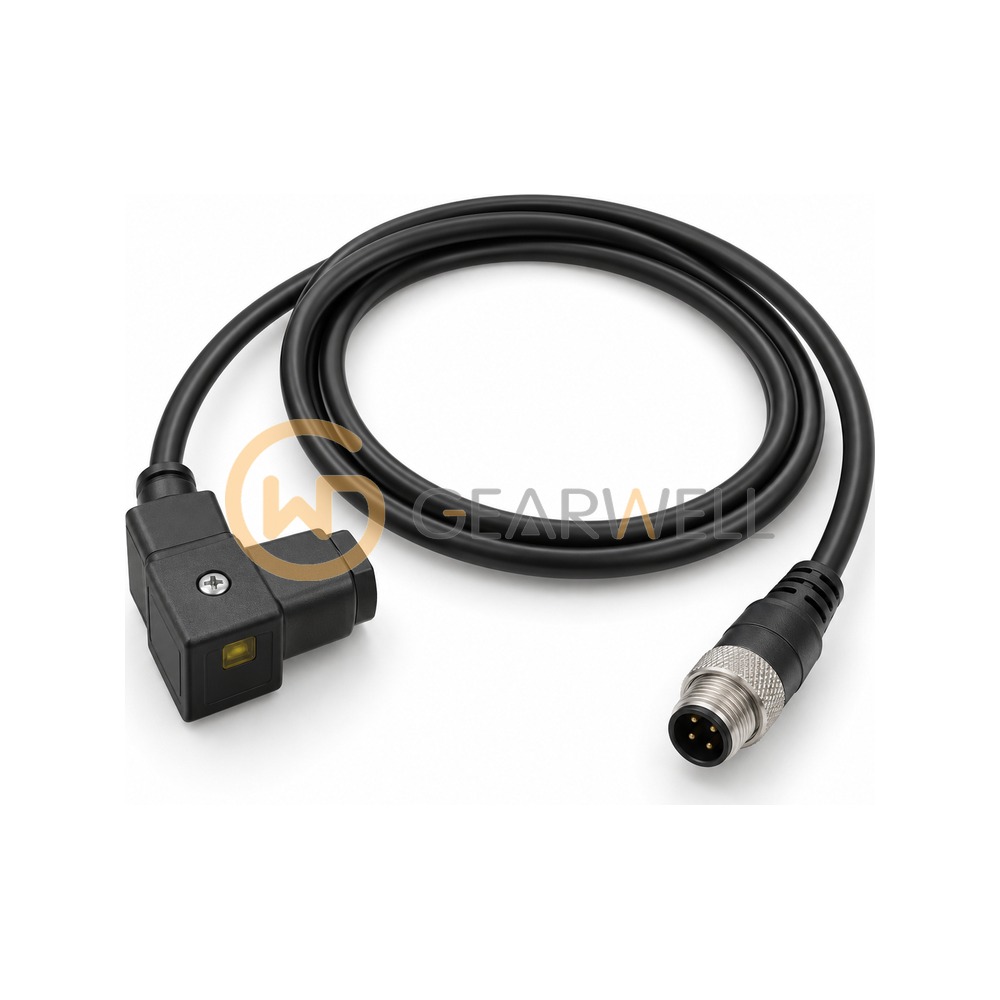

BALLUFF BCC VA04-M413-3E-664-PX0350-020 Valve Connector Cordset
- Brand
- BALLUFF
- Model
- BCC VA04-M413-3E-664-PX0350-020
- GEARWELL SKU
- GWP-000012678
- Category
- Terminals, Cables & Connectors
Key specifications
- Cable
- 2 m PUR, black
- IP rating
- IP67 / IP69K
- Order code
- BCC04WK
- Connector 1
- Valve connector, 4-pin, angled
- Connector 2
- M12x1 male, 3-pin, A-coded
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BALLUFF BCC VA04-M413-3E-664-PX0350-020 Valve Connector Cordset |
|---|---|
| Brand | BALLUFF |
| Model | BCC VA04-M413-3E-664-PX0350-020 |
| Category | Terminals, Cables & Connectors |
| Cable | 2 m PUR, black |
| IP rating | IP67 / IP69K |
| Order code | BCC04WK |
| Connector 1 | Valve connector, 4-pin, angled |
| Connector 2 | M12x1 male, 3-pin, A-coded |
| Rated current | 4.0 A |
| Type designation | BCC VA04-M413-3E-664-PX0350-020 |
| Operating voltage | 24 VDC / 24 VAC |
