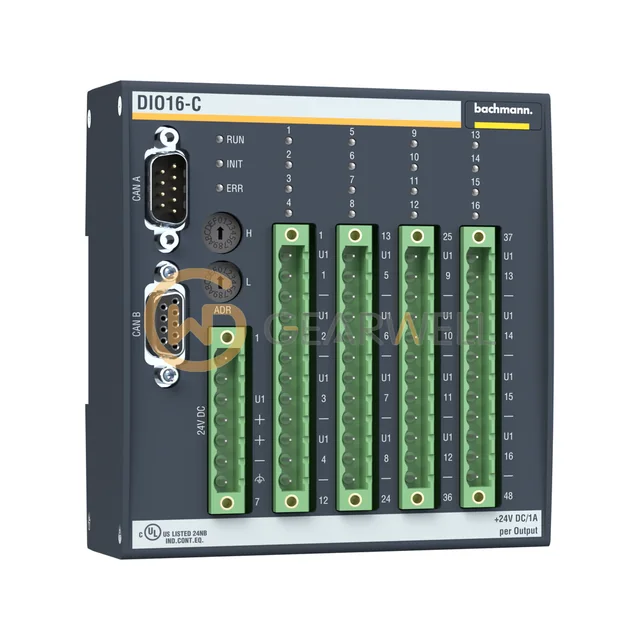

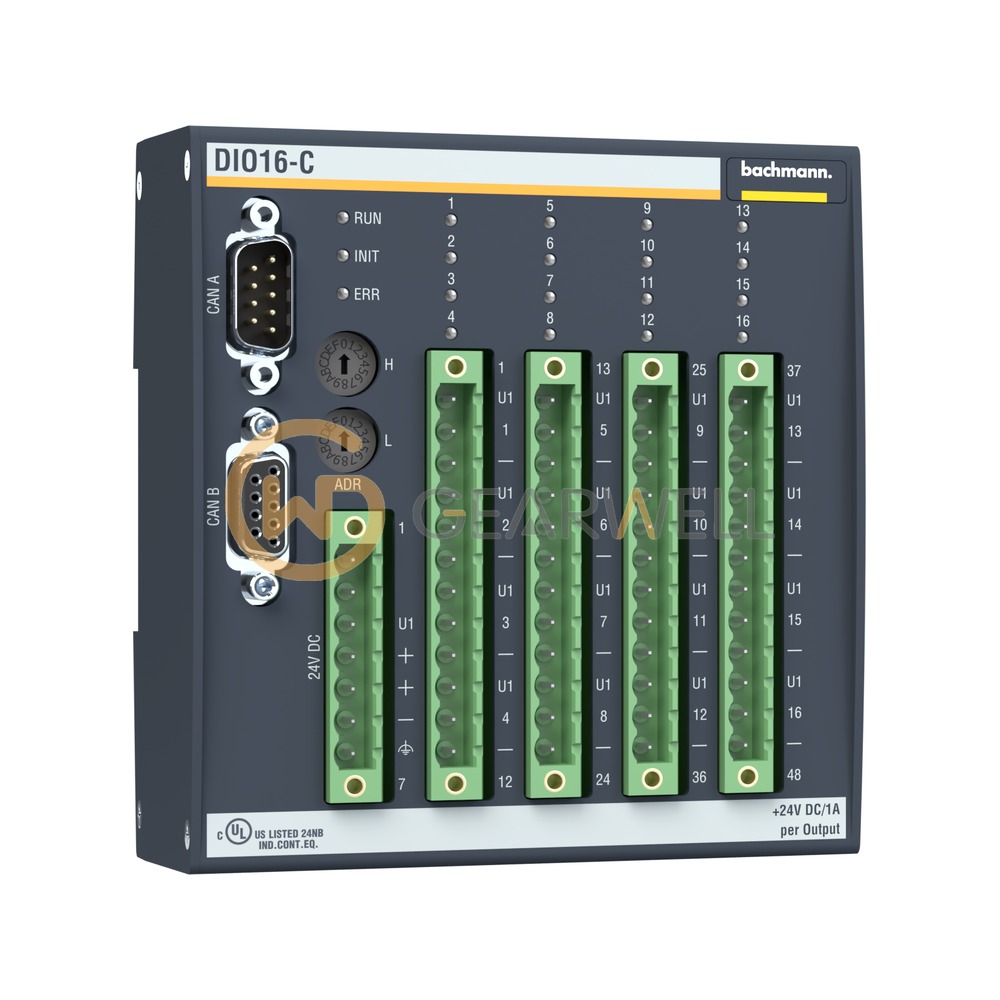

BACHMANN DIO16-C M200 CAN Slave Digital I/O Module
- Brand
- Bachmann
- Model
- DIO16-C
- GEARWELL SKU
- GWP-000010416
- Category
- PLCs & I/O
Key specifications
- Part number
- 00010285-00
- CAN connection
- 2x 9-pin D-sub
- Supply voltage
- 18 to 34 V DC
- CAN transfer rate
- 10 to 1000 kBaud
- Operating temperature
- -30 to +60 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BACHMANN DIO16-C M200 CAN Slave Digital I/O Module |
|---|---|
| Brand | Bachmann |
| Model | DIO16-C |
| Category | PLCs & I/O |
| Part number | 00010285-00 |
| CAN connection | 2x 9-pin D-sub |
| Supply voltage | 18 to 34 V DC |
| CAN transfer rate | 10 to 1000 kBaud |
| Operating temperature | -30 to +60 °C |
| Output current per channel | 1 A |
| Digital channels (configurable I/O) | 16 |
