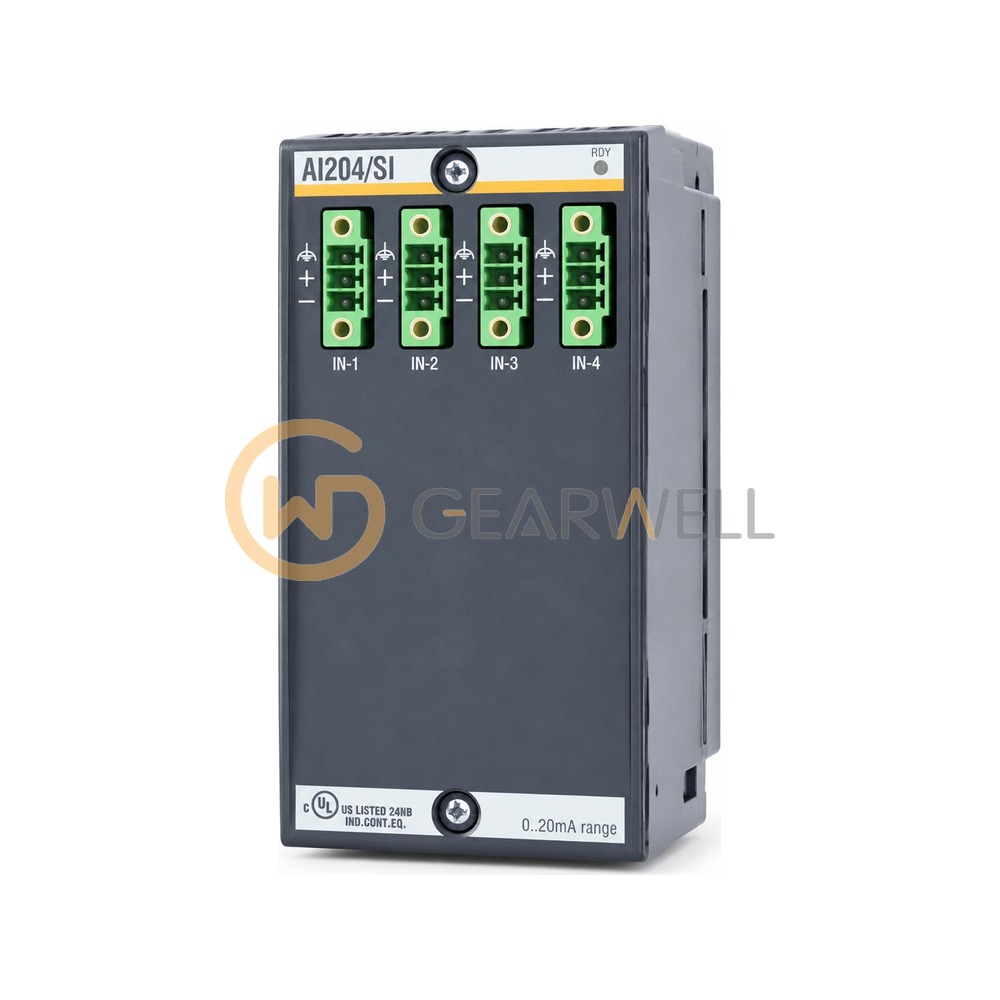

Bachmann AI204/SI M200 Analog Input Module
- Brand
- Bachmann
- Model
- AI204/SI
- GEARWELL SKU
- GWP-000033388
- Category
- PLCs & I/O
Key specifications
- Inputs
- 4 current inputs
- Sampling
- 4 measurements per second per channel
- Resolution
- 16 bit
- Part number
- 00012245-00
- Error at 25 °C
- ±0.1 %
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Bachmann AI204/SI M200 Analog Input Module |
|---|---|
| Brand | Bachmann |
| Model | AI204/SI |
| Category | PLCs & I/O |
| Inputs | 4 current inputs |
| Sampling | 4 measurements per second per channel |
| Resolution | 16 bit |
| Part number | 00012245-00 |
| Error at 25 °C | ±0.1 % |
| Input impedance | 75 Ω |
| Code as collected | BACHMANNAI204/SI (brand word removed) |
| Galvanic isolation | 500 V between channels and from the system |
| Input current range | 0 to 20 mA |
| Operating temperature | -30 to +60 °C |
