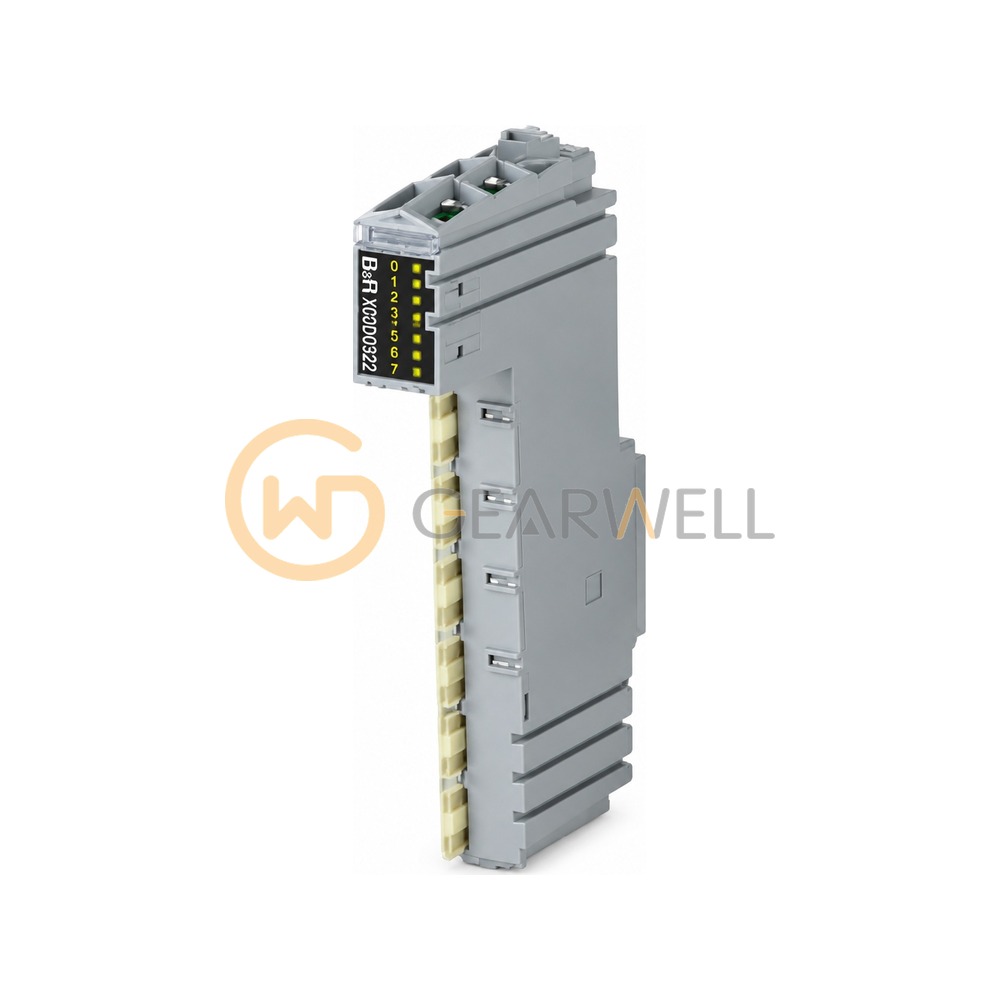

B&R X20DO9322 X20 Digital Output Module, 12 DO 24 VDC 0.5 A
- Brand
- B&R
- Model
- X20DO9322
- GEARWELL SKU
- GWP-000033387
- Category
- PLCs & I/O
Key specifications
- Outputs
- 12 digital outputs, 1-wire connections
- Evidence
- B&R official product page (br-automation.com)
- Output type
- Current-sourcing FET (source)
- Material number
- X20DO9322
- Nominal voltage
- 24 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | B&R X20DO9322 X20 Digital Output Module, 12 DO 24 VDC 0.5 A |
|---|---|
| Brand | B&R |
| Model | X20DO9322 |
| Category | PLCs & I/O |
| Outputs | 12 digital outputs, 1-wire connections |
| Evidence | B&R official product page (br-automation.com) |
| Output type | Current-sourcing FET (source) |
| Material number | X20DO9322 |
| Nominal voltage | 24 VDC |
| Output protection | Thermal shutdown on overcurrent or short circuit; internal freewheeling diode |
| Degree of protection | IP20 |
| Total nominal current | 6 A |
| Nominal output current | 0.5 A |
| Switching frequency (resistive load) | Max. 500 Hz |
