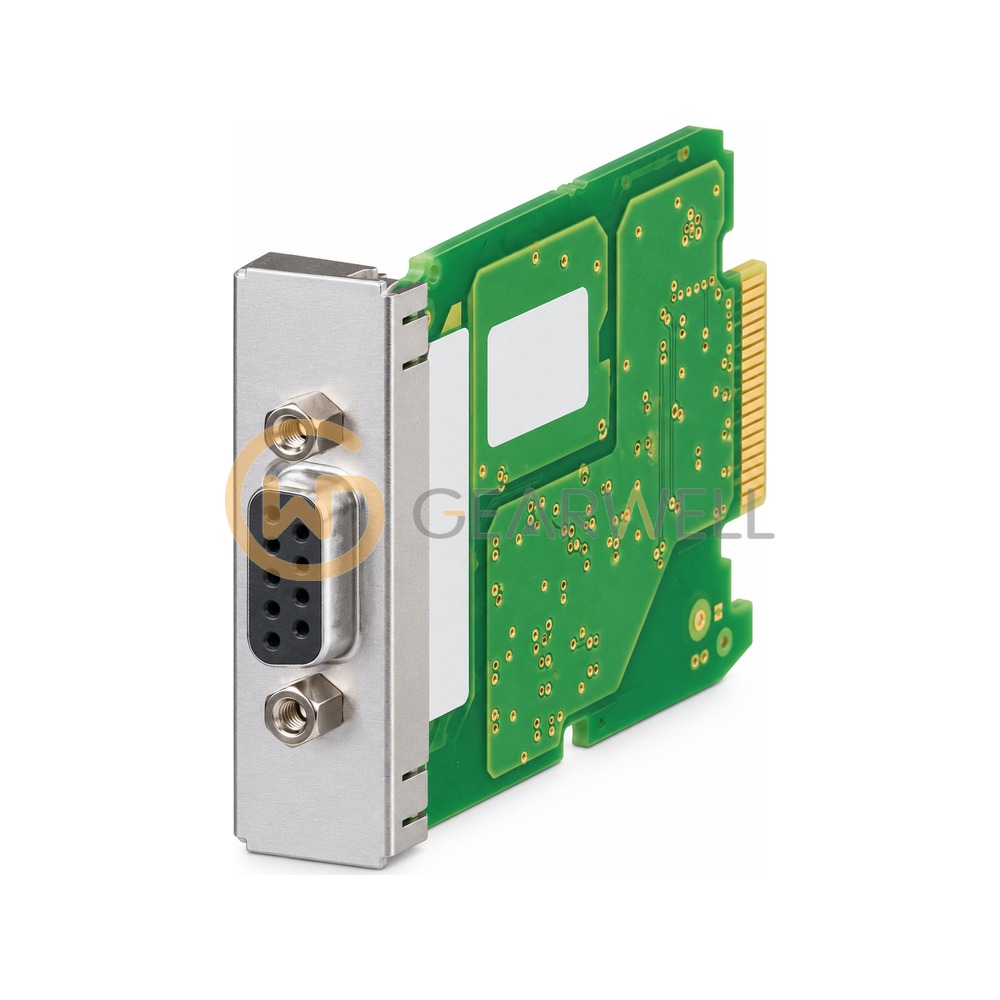

B&R 8BAC0120.001-2 ACOPOSmulti EnDat 2.2 Encoder Plug-in Module
- Brand
- B&R
- Model
- 8BAC0120.001-2
- GEARWELL SKU
- GWP-000012958
- Category
- Servo Systems
Key specifications
- Slot
- Slots 1 and 2
- Module type
- ACOPOSmulti plug-in module
- Encoder supply
- Typ. 12.5 V, 350 mA
- Encoder interface
- EnDat 2.2
- Signal transmission
- RS485, 6.25 Mbit/s
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | B&R 8BAC0120.001-2 ACOPOSmulti EnDat 2.2 Encoder Plug-in Module |
|---|---|
| Brand | B&R |
| Model | 8BAC0120.001-2 |
| Category | Servo Systems |
| Slot | Slots 1 and 2 |
| Module type | ACOPOSmulti plug-in module |
| Encoder supply | Typ. 12.5 V, 350 mA |
| Encoder interface | EnDat 2.2 |
| Signal transmission | RS485, 6.25 Mbit/s |
| Module-side connection | 9-pin male DSUB connector |
| Max. encoder cable length | 100 m |
| Operating temperature (nominal) | 5 to 40 °C |
