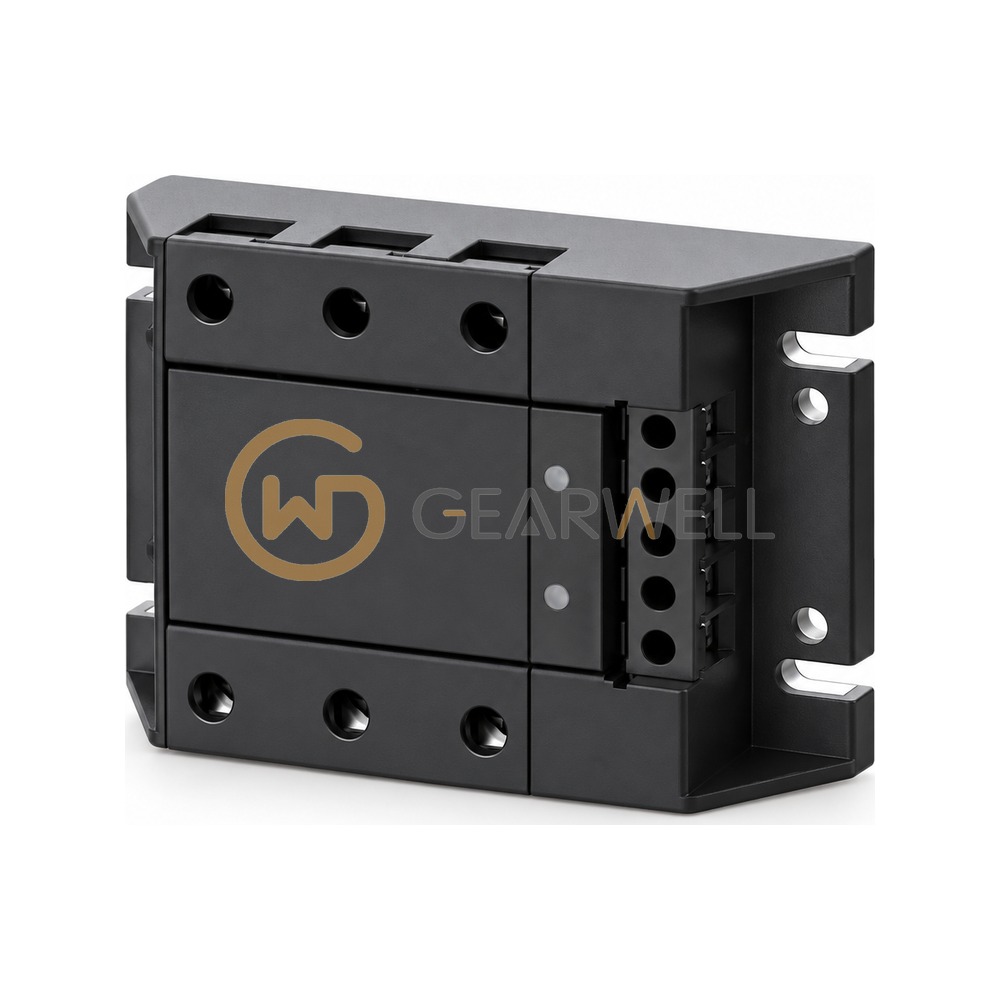

AUTONICS SR3-4475 SR3 Three-Phase Solid State Relay 75 A
- Brand
- AUTONICS
- Model
- SR3-4475
- GEARWELL SKU
- GWP-000015360
- Category
- Contactors & Starters
Key specifications
- Function
- Zero cross turn-on
- Heatsink
- Detachable type
- Control phase
- 3-phase
- Rated load current
- 75 A
- Rated load voltage
- 48-480 VAC (50/60 Hz)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | AUTONICS SR3-4475 SR3 Three-Phase Solid State Relay 75 A |
|---|---|
| Brand | AUTONICS |
| Model | SR3-4475 |
| Category | Contactors & Starters |
| Function | Zero cross turn-on |
| Heatsink | Detachable type |
| Control phase | 3-phase |
| Rated load current | 75 A |
| Rated load voltage | 48-480 VAC (50/60 Hz) |
| Dielectric strength | 2,500 VAC 50/60 Hz for 1 min |
| Rated input voltage | 90-240 VAC |
