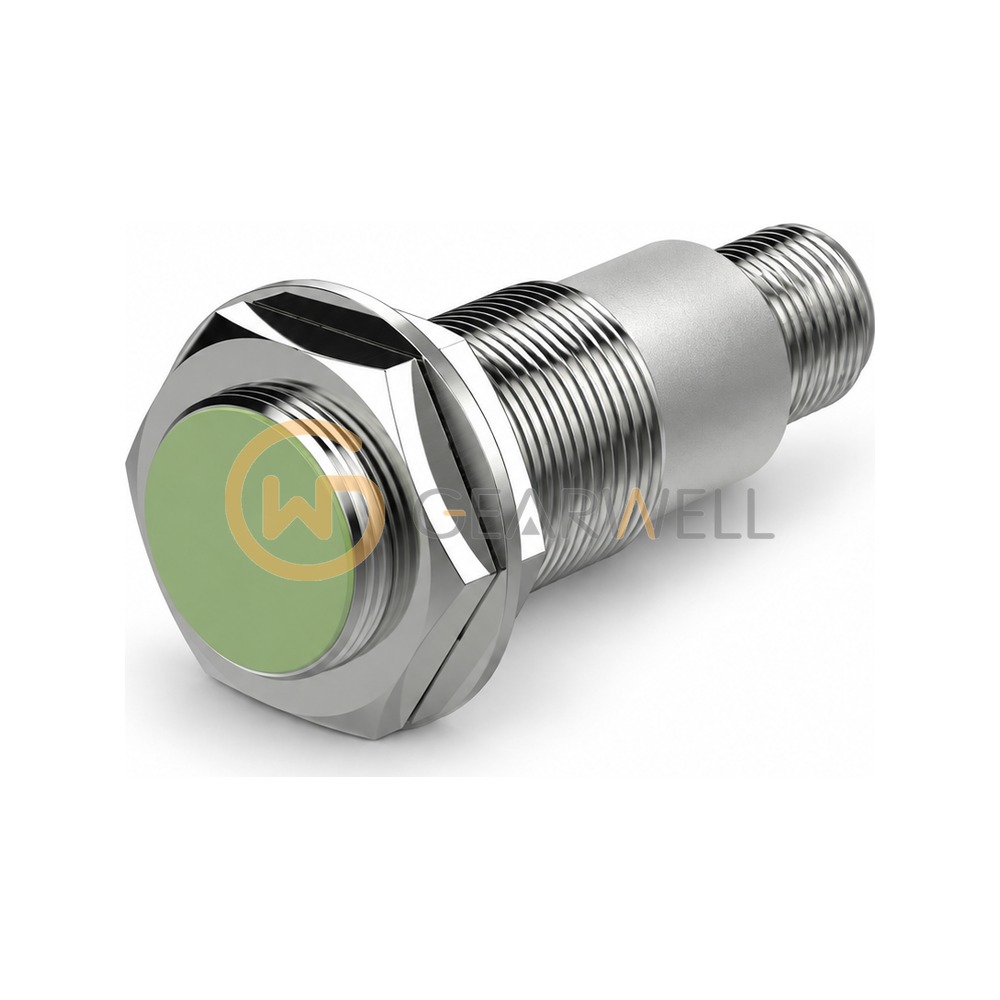

AUTONICS PRCMT18-5DO PR Series M18 Inductive Proximity Sensor
- Brand
- AUTONICS
- Model
- PRCMT18-5DO
- GEARWELL SKU
- GWP-000012974
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Connection
- M12 connector
- Protection
- IP67
- Unit weight
- ≈ 49 g
- Installation
- Flush
- Power voltage
- 12-24 VDC (operating 10-30 VDC)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | AUTONICS PRCMT18-5DO PR Series M18 Inductive Proximity Sensor |
|---|---|
| Brand | AUTONICS |
| Model | PRCMT18-5DO |
| Category | Proximity & Photoelectric Sensors |
| Connection | M12 connector |
| Protection | IP67 |
| Unit weight | ≈ 49 g |
| Installation | Flush |
| Power voltage | 12-24 VDC (operating 10-30 VDC) |
| Control output | 2 to 100 mA |
| Leakage current | Max. 0.6 mA |
| Sensing distance | 5 mm |
| Response frequency | 500 Hz |
| Sensing side diameter | Ø18 mm |
