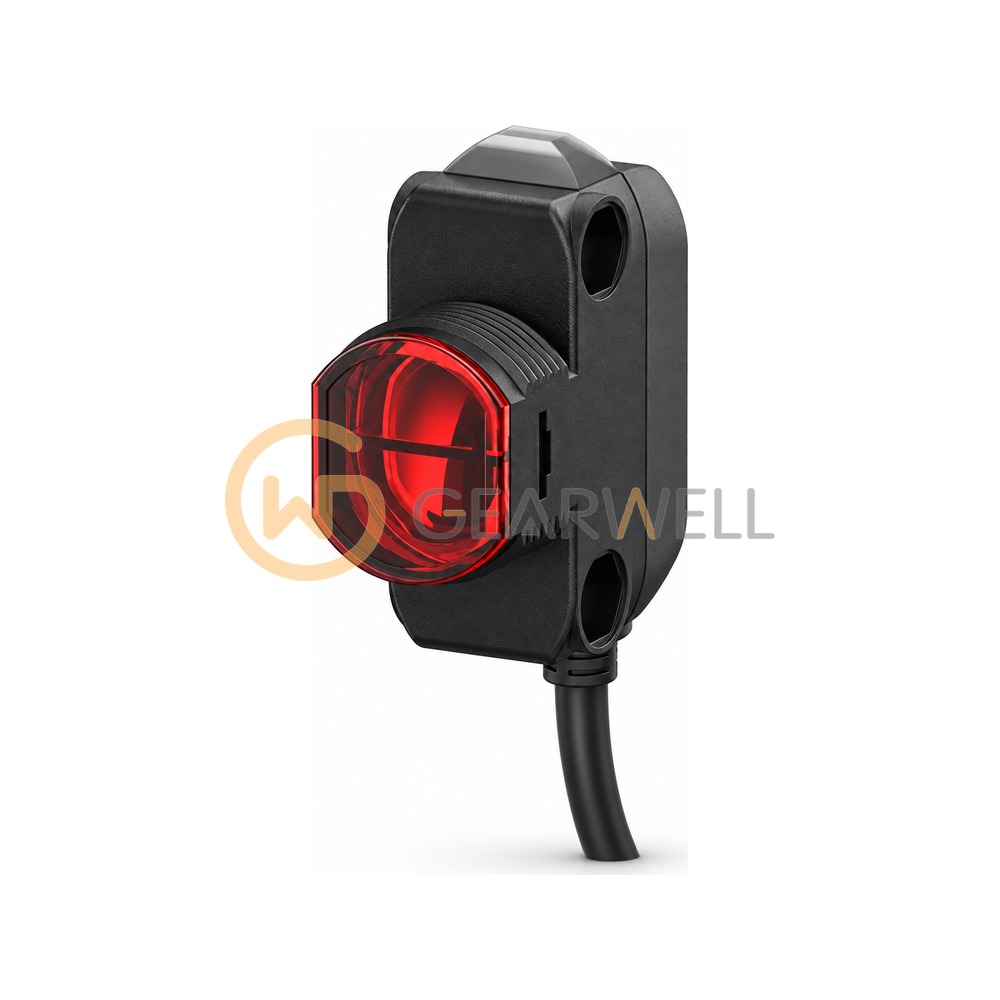

AUTONICS BH4M-PDT BH Series Polarized Retroreflective Photo Sensor
- Brand
- AUTONICS
- Model
- BH4M-PDT
- GEARWELL SKU
- GWP-000016403
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Light source
- Red LED(660nm)
- Sensing type
- Retroreflective type(built-in polarizing filter)
- Power voltage
- 12-24VDC ±10%(ripple P-P: max. 10%)
- Response time
- Max. 1ms
- Control output
- NPN, PNP open collector simultaneous output
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | AUTONICS BH4M-PDT BH Series Polarized Retroreflective Photo Sensor |
|---|---|
| Brand | AUTONICS |
| Model | BH4M-PDT |
| Category | Proximity & Photoelectric Sensors |
| Light source | Red LED(660nm) |
| Sensing type | Retroreflective type(built-in polarizing filter) |
| Power voltage | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Response time | Max. 1ms |
| Control output | NPN, PNP open collector simultaneous output |
| Operation mode | Light ON/Dark ON(set by switch) |
| Sensing target | Opaque material of min. Ø75mm |
| Connection type | Cable type(Ø4, 2.1m) |
| Sensing distance | 4m(MS-2A) |
| Protection rating | IP67 |
| Reflector (included) | MS-2A |
