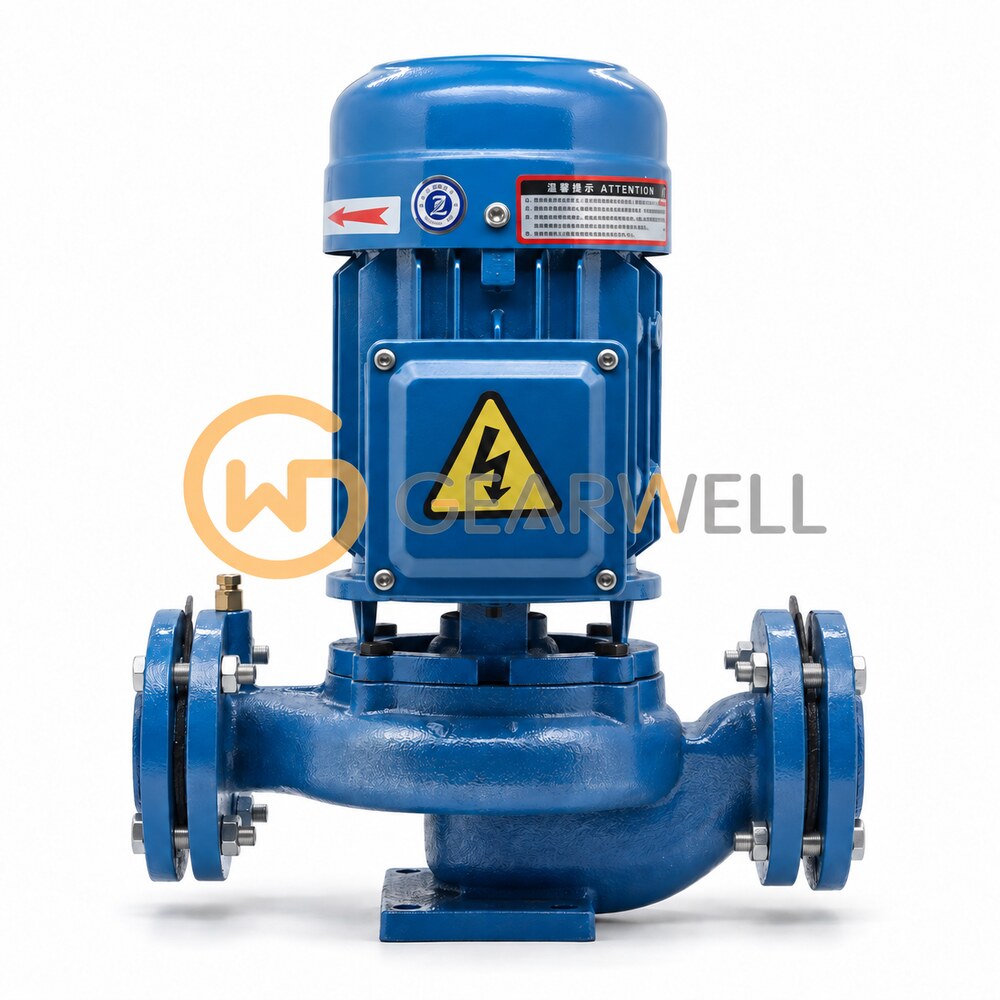

AOYUAN GD(2)50-20 Vertical Inline Water Pump

Key specifications

Source-listed motor speed: 2900 r/min
Series: AOYUAN GD(2)
Source-listed power supply: 380 V, 50 Hz
GD(2)50-20-2HP-1.5KW: 1.5 kW / 2 HP; source-listed inlet/outlet G2; listed flow 23 m3/h; head requires confirmation; listed weight 30 kg
Model selection: This page is for GD(2)50-20 only. Confirm connection dimensions, motor supply and duty point before ordering.

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	AOYUAN GD(2)50-20 Vertical Inline Water Pump
Brand	AOYUAN
Model	GD(2)50-20
Category	Water Pumps
Source-listed motor speed	2900 r/min
Series	AOYUAN GD(2)
Source-listed power supply	380 V, 50 Hz
GD(2)50-20-2HP-1.5KW	1.5 kW / 2 HP; source-listed inlet/outlet G2; listed flow 23 m3/h; head requires confirmation; listed weight 30 kg
Model selection	This page is for GD(2)50-20 only. Confirm connection dimensions, motor supply and duty point before ordering.
GD(2)50-20 head check	The source graphic lists 30 m while the model suffix is -20; head is not confirmed for this variant. Request the exact pump curve before selection.
Source-listed construction	Electric drive; cast-iron pump body; vertical motor and inline inlet/outlet
Product type	Vertical inline water pump
Source-listed complete designation	GD(2)50-20-2HP-1.5KW
Supply scope	Complete water pump model options only; impellers, seal kits and other separate accessories are not included
Connection reference	G-size designations below are source-listed inlet/outlet references; verify actual flange, thread and installation dimensions before ordering
Parameter basis	Values transcribed from the source SKU graphics, not independently verified AOYUAN performance curves. Listed flow and head must not be assumed to be a simultaneous operating point. Confirm all ratings against the supplied unit.
