AOYUAN AY-128 / AY-158 Chiller Water Pumps
- Brand
- AOYUAN
- Model
- AY-128 / AY-158
- GEARWELL SKU
- GWP-000004468
- Category
- Water Pumps
Key specifications
- Supply scope
- Complete pumps only; separate seals, impellers and other accessories are excluded
- Models
- AY-128 / AY-158
- Condition
- Condition and availability to be confirmed with quotation
- Source-listed frequency and speed
- 50 Hz; 2850 r/min
- Model and supply options
- AY-128 220V; AY-128 380V; AY-158 380V. These are separate model/supply options, not a universal-voltage motor.

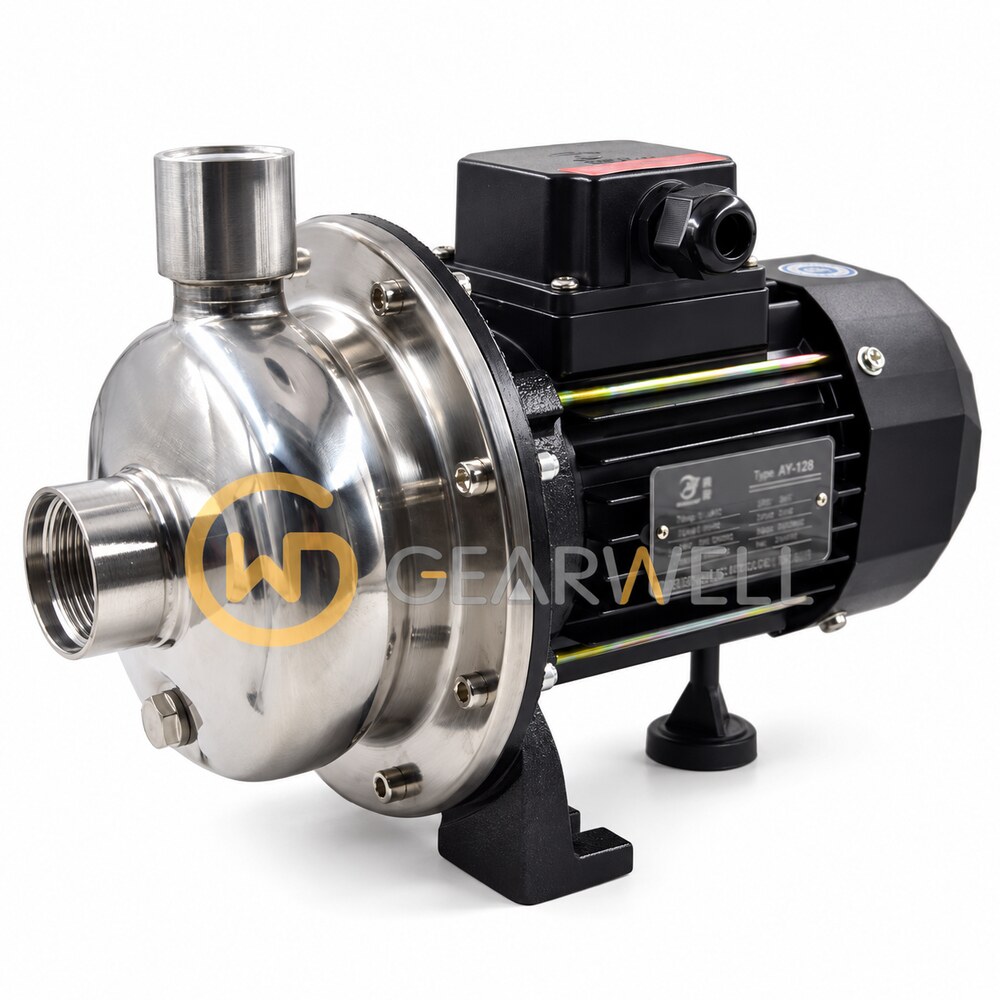

- AOYUAN AY-128 380V - Full-size product image (1000 x 1000 JPG)

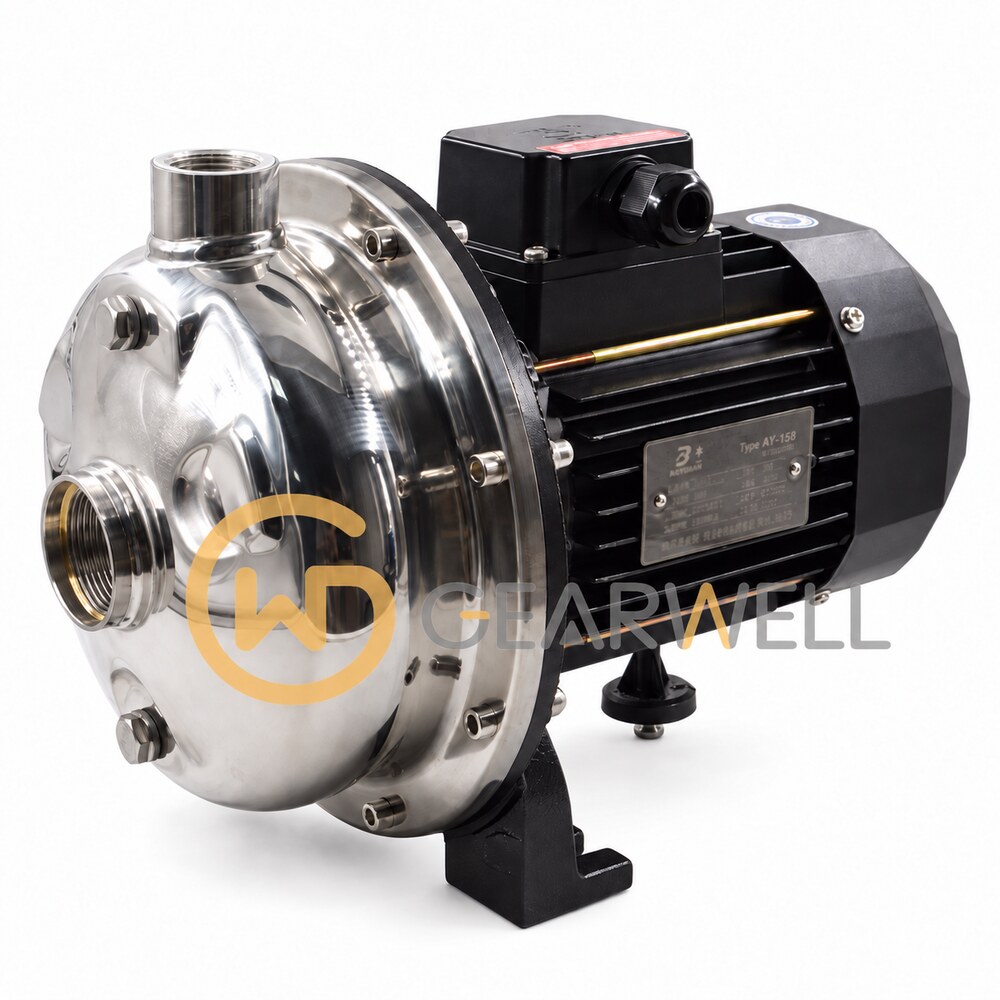

- AOYUAN AY-158 380V - Full-size product image (1000 x 1000 JPG)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | AOYUAN AY-128 / AY-158 Chiller Water Pumps |
|---|---|
| Brand | AOYUAN |
| Model | AY-128 / AY-158 |
| Category | Water Pumps |
| Supply scope | Complete pumps only; separate seals, impellers and other accessories are excluded |
| Models | AY-128 / AY-158 |
| Condition | Condition and availability to be confirmed with quotation |
| Source-listed frequency and speed | 50 Hz; 2850 r/min |
| Model and supply options | AY-128 220V; AY-128 380V; AY-158 380V. These are separate model/supply options, not a universal-voltage motor. |

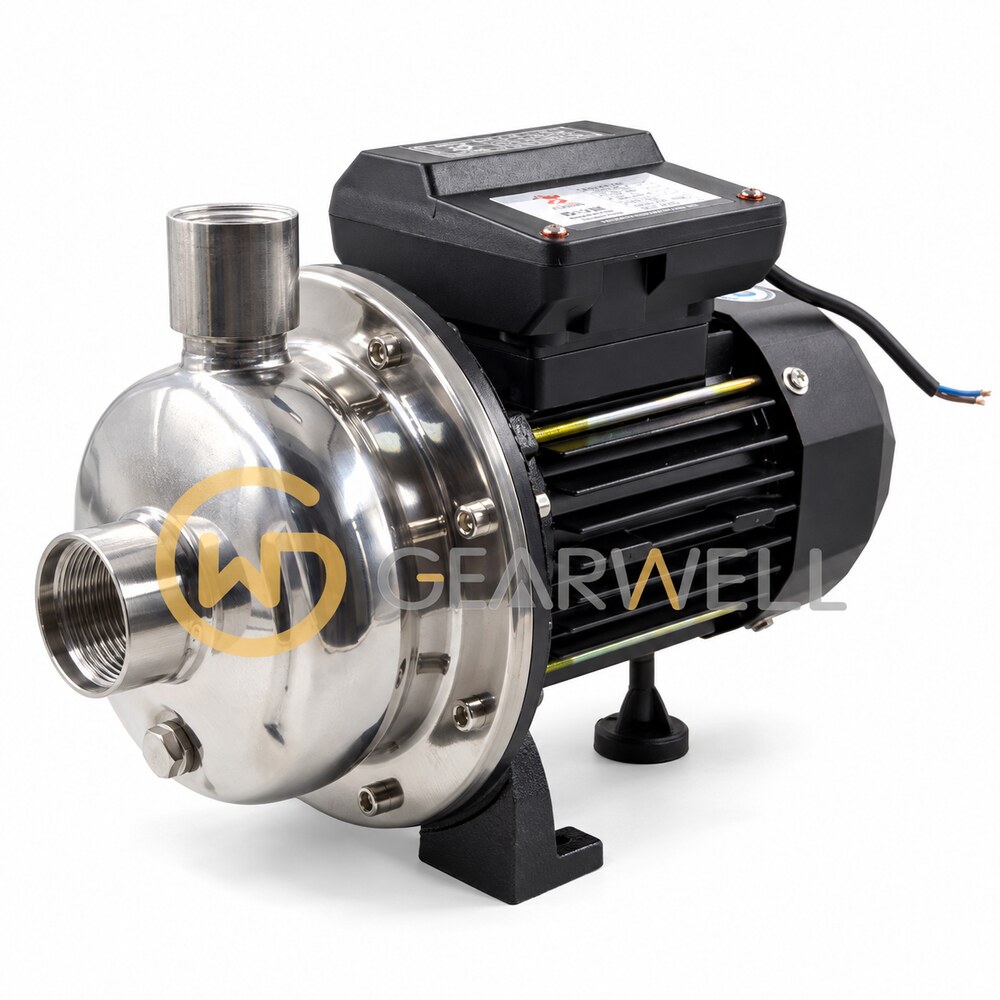

| AY-128 220V | 0.37 kW / 0.5 HP; listed head 25 m; listed flow 100 L/min; listed weight 8 kg |
| AY-128 380V | 0.37 kW / 0.5 HP; listed head 22 m; listed flow 100 L/min; listed weight 8 kg; voltage requires confirmation |
| AY-158 380V | 0.75 kW (rated power requires confirmation); listed head 26 m; listed flow 120 L/min; listed weight 13 kg |
| Source-listed application | Clean-water circulation for chillers; confirm fluid compatibility and temperature limits before selection |
| Source-listed inlet / outlet | G1 inch / G1 inch; confirm actual thread and installation dimensions before ordering |
| AY-158 power check | The source graphic lists 0.75 kW and 0.5 HP, which are inconsistent. The 0.75 kW figure below is source-listed only; horsepower is omitted and rated power requires confirmation. |
| Source-listed construction | Electric motor with stainless-steel water-pump casing. Exact alloy, impeller, shaft and seal materials require confirmation. |
| Product type | Chiller water pump |
| AY-128 380V voltage check | The source SKU option and image heading state 380V, but the same graphic parameter panel states 220V. Listed here as the source 380V option; actual motor voltage requires nameplate confirmation before ordering. |
| Material confirmation | The source title and SKU options describe stainless steel while the generic material field says cast iron. Stainless steel refers only to the source-listed pump casing; do not assume the entire unit or all wetted parts use the same alloy. |
| Parameter basis | Values transcribed from the source SKU graphics, not independently verified manufacturer performance curves. Listed flow and head are not a confirmed simultaneous duty point. Confirm exact ratings against the supplied unit. |
