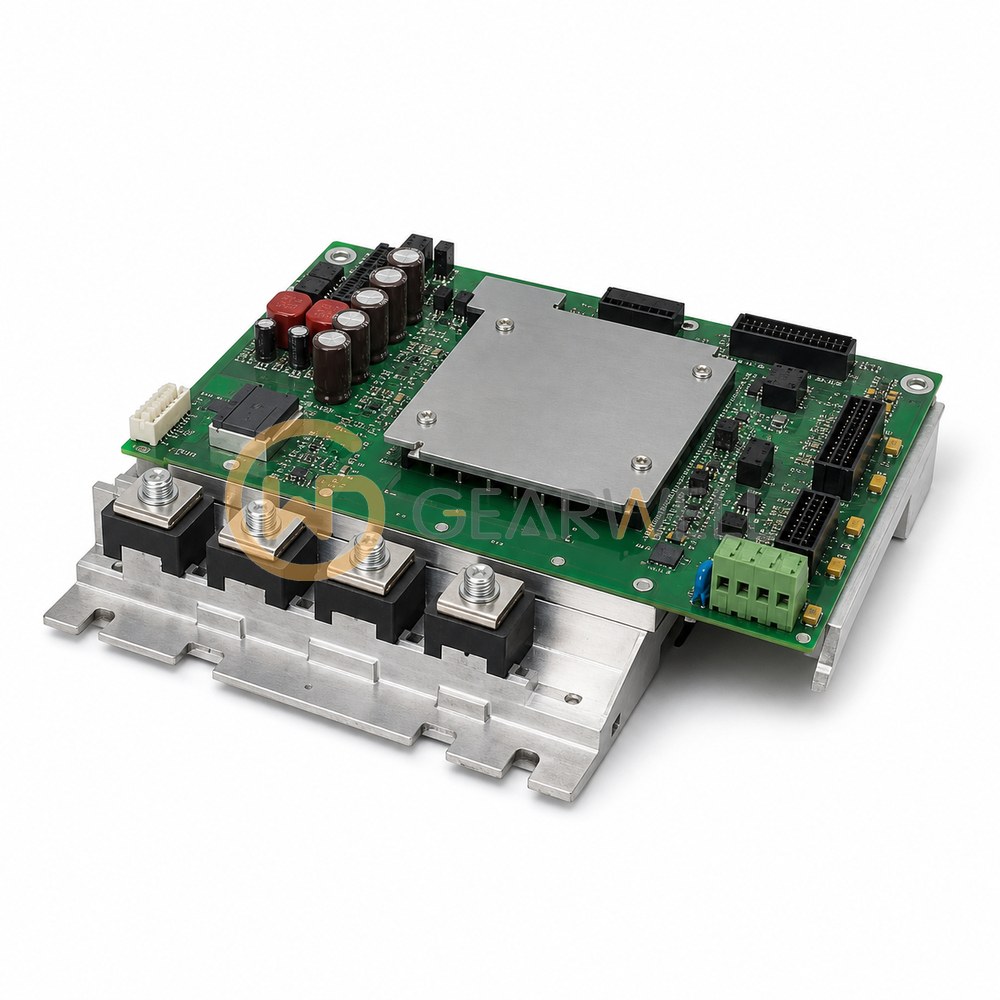

Allen-Bradley SK-R1-IG1-E510F500 PowerFlex 755 Inverter Gate Driver Board, 600/690 V
- Brand
- Allen-Bradley
- Model
- SK-R1-IG1-E510F500
- GEARWELL SKU
- GWP-000000675
- Category
- Industrial Automation Parts
Key specifications
- Inverter current ratings at 600 V
- 435 A, 460 A and 510 A
- Inverter current ratings at 690 V
- 415 A, 460 A and 500 A
- Manufacturer kit quantity
- 1 gate driver board
- Product type
- Inverter gate driver circuit board
- Drive voltage classes
- E and F (600 V / 690 V)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley SK-R1-IG1-E510F500 is an inverter gate printed circuit board for PowerFlex 755 drives in Frames 8 to 10, for the 600V 435 A, 460 A and 510 A and the 690V 415 A, 460 A and 500 A normal-duty ratings. Rockwell's spare-parts list gives a quantity of 3 per drive and rates it Level 1, printed circuit boards and other components recommended for stocking.
Technical reference
| Product name | Allen-Bradley SK-R1-IG1-E510F500 PowerFlex 755 Inverter Gate Driver Board, 600/690 V |
|---|---|
| Brand | Allen-Bradley |
| Model | SK-R1-IG1-E510F500 |
| Category | Industrial Automation Parts |
| Inverter current ratings at 600 V | 435 A, 460 A and 510 A |
| Inverter current ratings at 690 V | 415 A, 460 A and 500 A |
| Manufacturer kit quantity | 1 gate driver board |
| Product type | Inverter gate driver circuit board |
| Drive voltage classes | E and F (600 V / 690 V) |
| Documented drive family | PowerFlex 755 high-power inverter |
| Inverter phase positions | U, V or W |
| Documented drive frames | Frames 8-10; match the original inverter configuration and rating |
| Gate-board ribbon connections | J1 and J2, linked by jumper ribbon cables |
| Gate boards per inverter | 3 boards, serving phases U, V and W; replacement kit contains 1 board |
| Manufacturer stocking category (2017) | Level 1: circuit-board spare; not a statement of seller inventory |
