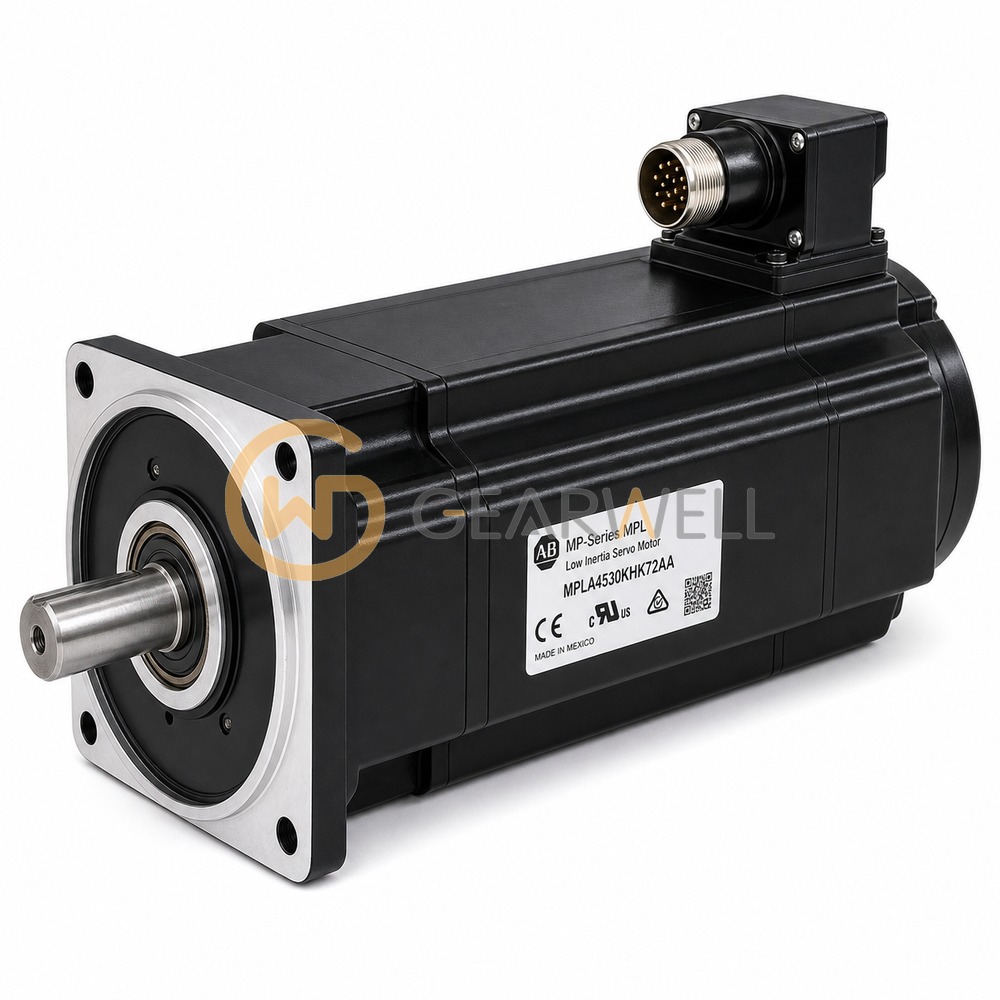

Allen-Bradley MPLA4530KHK72AA MP-Series Low-Inertia Servo Motor

Product overview

The Allen-Bradley MPL-A4530K-HK72AA is a Kinetix MPL low-inertia permanent magnet servo motor for 200 V-class drives in the 130 mm frame, rated 2.5 kW at 4000 rpm with 8.13 N·m continuous stall torque and 20.3 N·m peak stall torque. This version has a 2000 line incremental encoder, a plain shaft without key or shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, no holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
