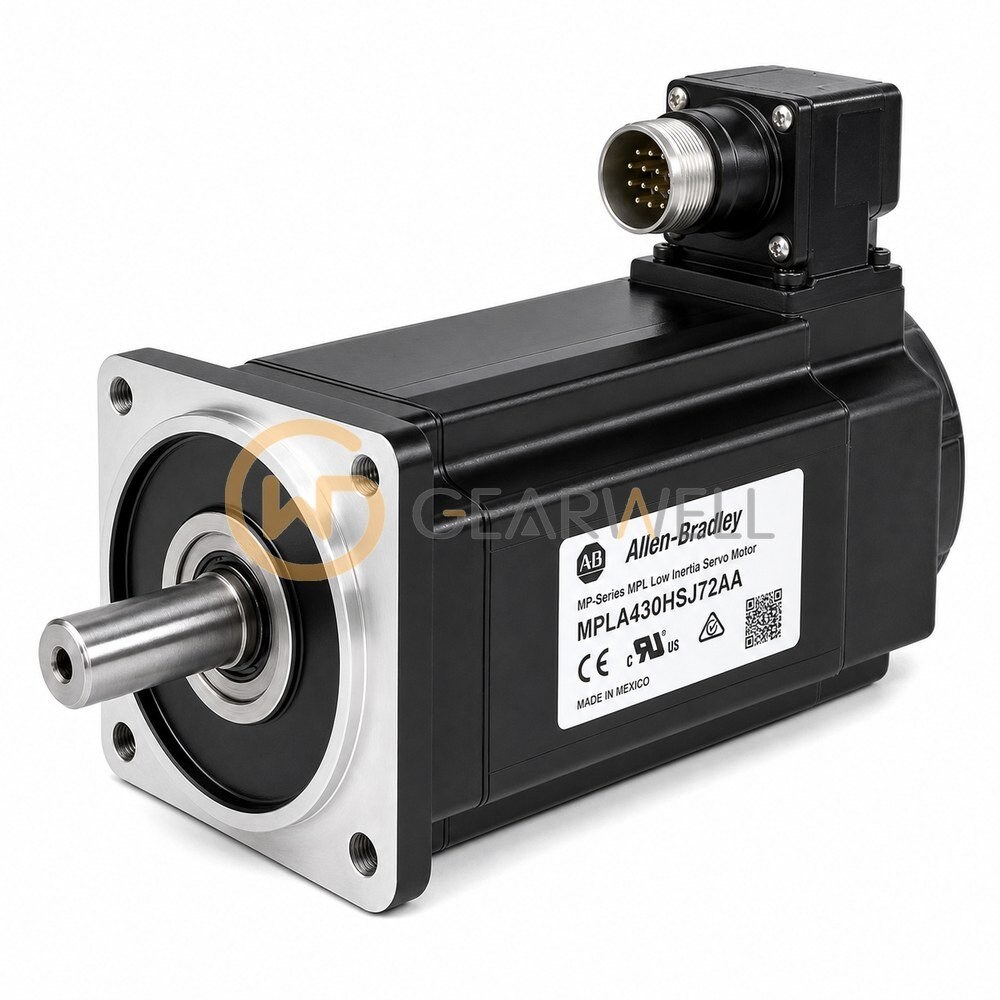

Allen-Bradley MPL-A430H-SJ72AA Kinetix MPL 1.8 kW Servo Motor
- Brand
- Allen-Bradley
- Model
- MPLA430HSJ72AA
- GEARWELL SKU
- GWP-000001602
- Category
- Industrial Automation Parts
Key specifications
- Feedback
- 1024 sin/cos absolute single-turn encoder (Hiperface)
- Frame size
- 115 mm
- Rated speed
- 3500 rpm
- Brake option
- No brake
- Product type
- Kinetix MPL low-inertia rotary servo motor
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPL-A430H-SJ72AA is a Kinetix MPL low-inertia permanent magnet servo motor for 200 V-class drives in the 115 mm frame, rated 1.8 kW at 3500 rpm with 6.21 N·m continuous stall torque and 19.8 N·m peak stall torque. This version has a 1024 sin/cos absolute single-turn encoder (Hiperface), a keyed shaft without shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, no holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
Technical reference
| Product name | Allen-Bradley MPL-A430H-SJ72AA Kinetix MPL 1.8 kW Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPLA430HSJ72AA |
| Category | Industrial Automation Parts |
| Feedback | 1024 sin/cos absolute single-turn encoder (Hiperface) |
| Frame size | 115 mm |
| Rated speed | 3500 rpm |
| Brake option | No brake |
| Product type | Kinetix MPL low-inertia rotary servo motor |
| Motor rated output | 1.8 kW |
| Maximum speed | 3500 rpm |
| Voltage class | 200 V class |
| Mounting flange | IEC metric, type FF |
| Peak stall torque | 19.8 N·m |
| Magnet stack length | 76.2 mm |
| Shaft configuration | Shaft key; no shaft seal |
| Continuous stall torque | 6.21 N·m |
