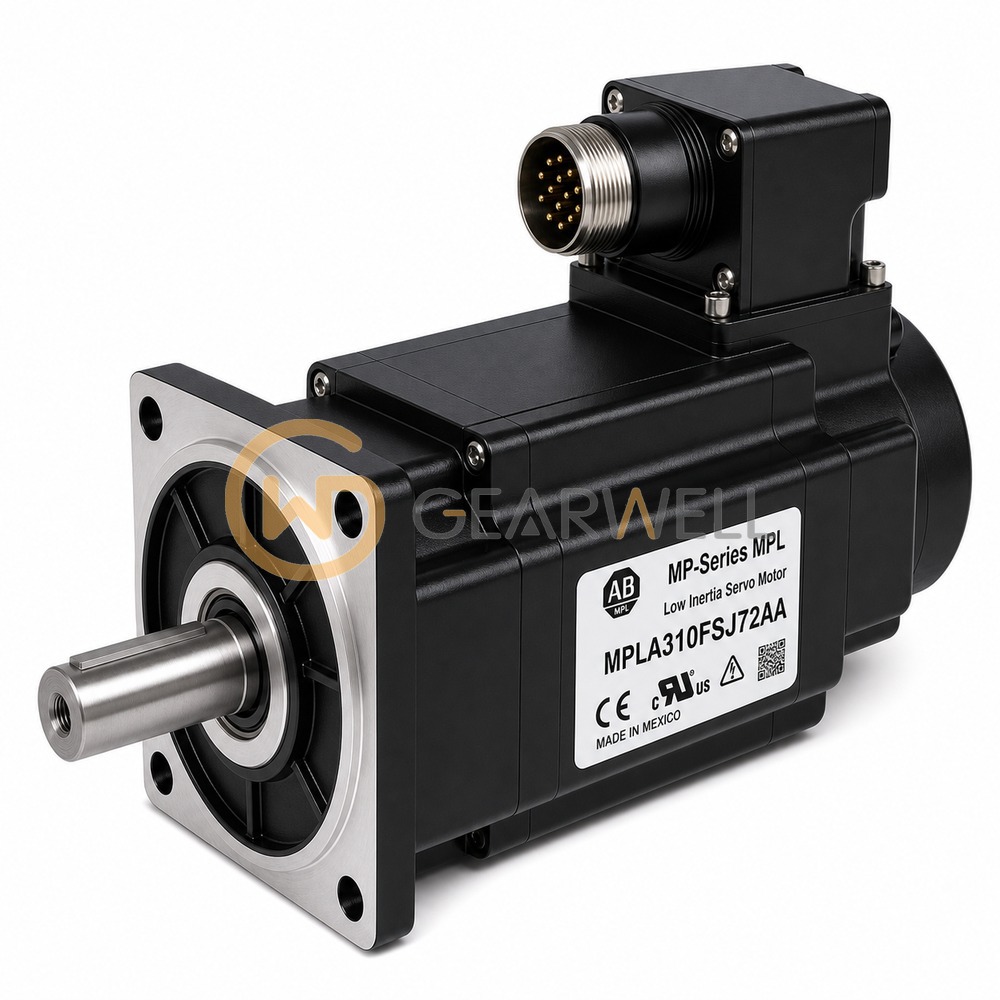

Allen-Bradley MPLA310FSJ72AA MP-Series MPL Rotary Servo Motor

Product overview

The Allen-Bradley MPL-A310F-SJ72AA is a Kinetix MPL low-inertia permanent magnet servo motor for 200 V-class drives in the 100 mm frame, rated 0.46 kW at 3000 rpm with 1.58 N·m continuous stall torque and 3.61 N·m peak stall torque. This version has a 1024 sin/cos absolute single-turn encoder (Hiperface), a keyed shaft without shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, no holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
