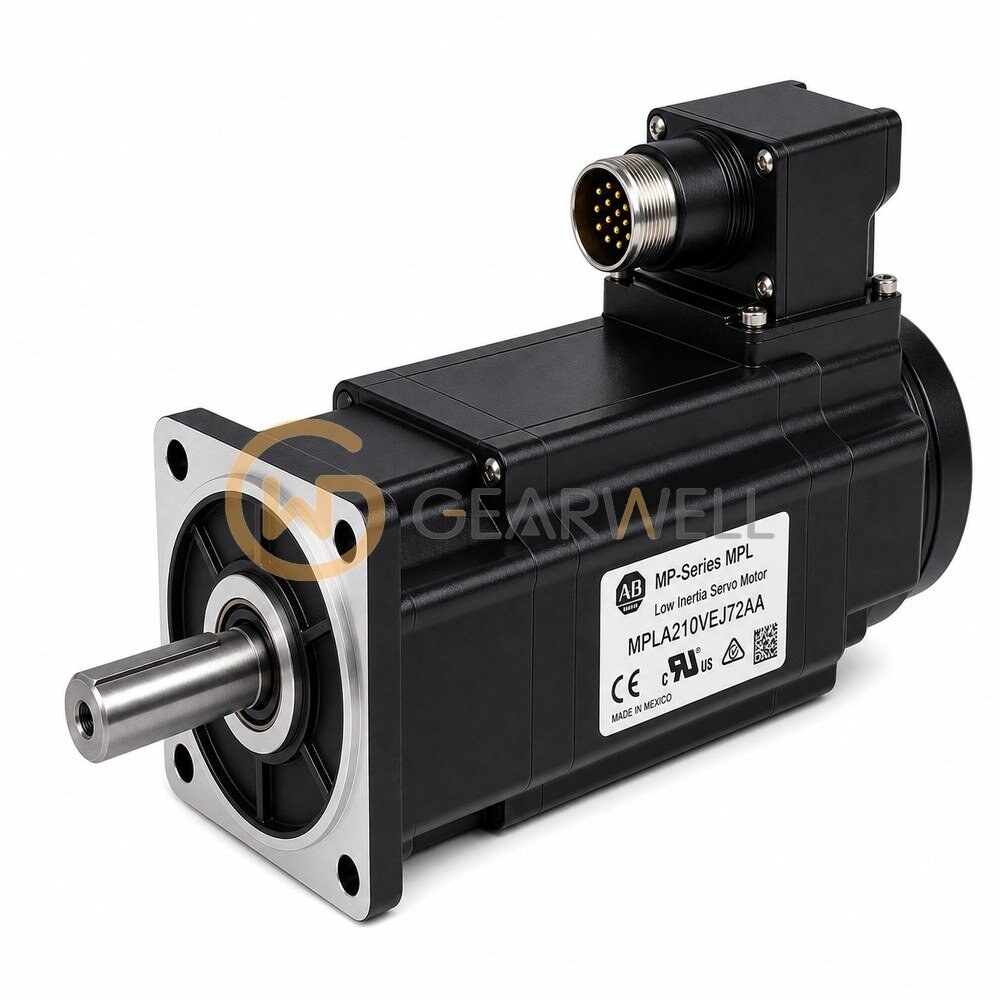

Allen-Bradley MPL-A210V-EJ72AA Kinetix MPL 0.37 kW Servo Motor
- Brand
- Allen-Bradley
- Model
- MPLA210VEJ72AA
- GEARWELL SKU
- GWP-000004055
- Category
- Industrial Automation Parts
Key specifications
- Frame size
- 75 mm
- Voltage class
- 200 V class
- Feedback
- 128 sin/cos absolute single-turn encoder (Hiperface)
- Connectors
- SpeedTEC DIN, right-angle, 180-degree rotatable
- Rated speed
- 8000 rpm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPL-A210V-EJ72AA is a Kinetix MPL low-inertia permanent magnet servo motor for 200 V-class drives in the 75 mm frame, rated 0.37 kW at 8000 rpm with 0.55 N·m continuous stall torque and 1.50 N·m peak stall torque. This version has a 128 sin/cos absolute single-turn encoder (Hiperface), a keyed shaft without shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, no holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
Technical reference
| Product name | Allen-Bradley MPL-A210V-EJ72AA Kinetix MPL 0.37 kW Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPLA210VEJ72AA |
| Category | Industrial Automation Parts |
| Frame size | 75 mm |
| Voltage class | 200 V class |
| Feedback | 128 sin/cos absolute single-turn encoder (Hiperface) |
| Connectors | SpeedTEC DIN, right-angle, 180-degree rotatable |
| Rated speed | 8000 rpm |
| Brake option | No brake |
| Motor rated output | 0.37 kW |
| Magnet stack length | 25.4 mm |
| Shaft configuration | Shaft key; no shaft seal |
