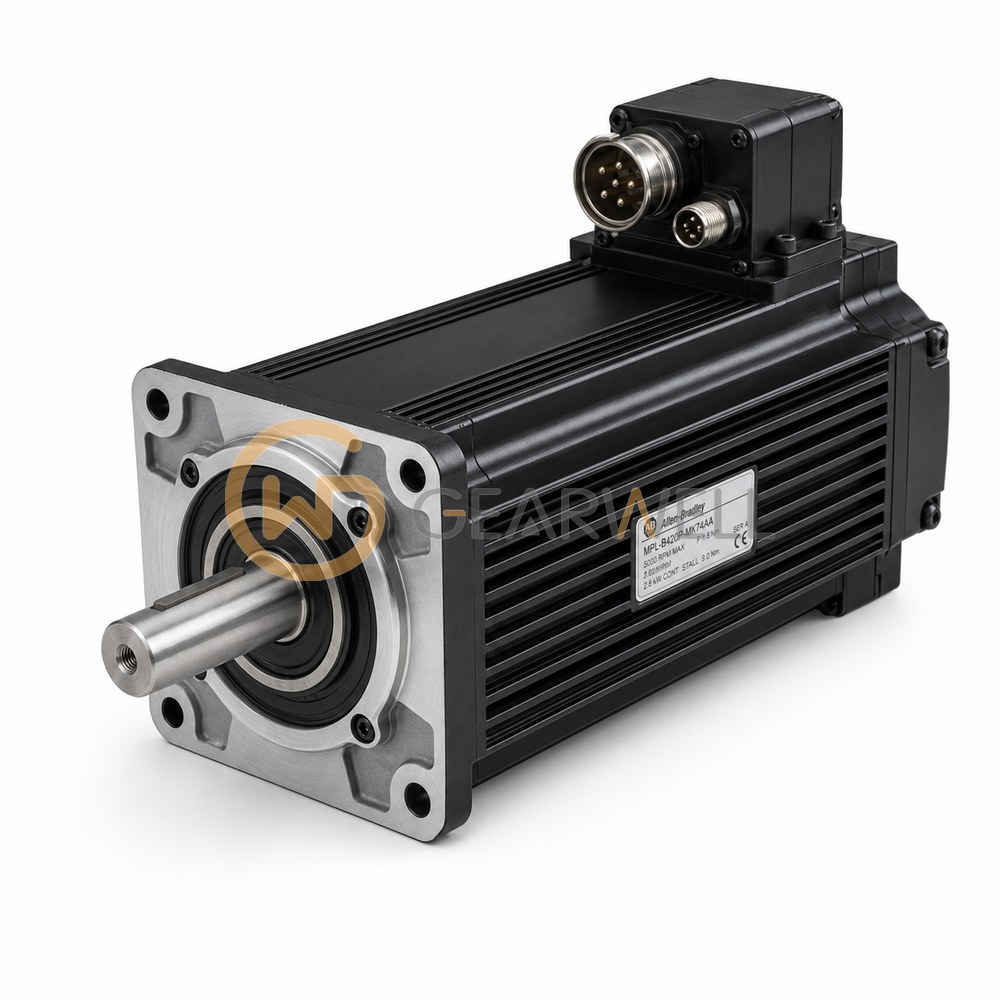

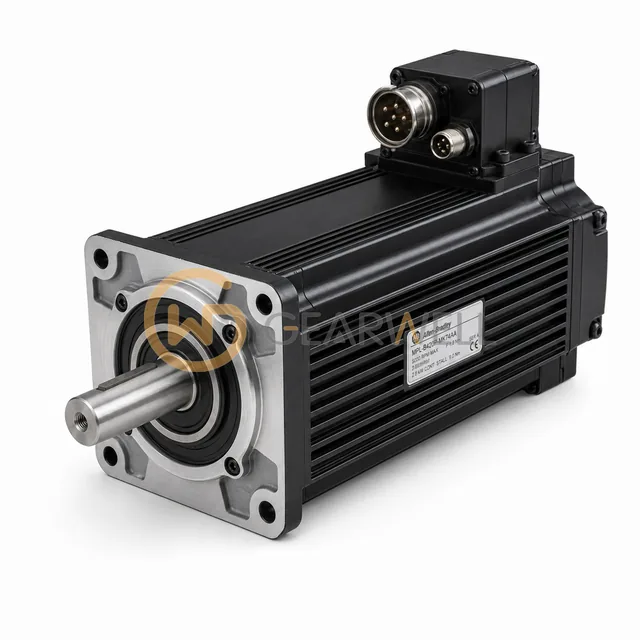

Allen-Bradley MPL-B420P-MK74AA Low-Inertia Servo Motor
- Brand
- Allen-Bradley
- Model
- MPL-B420P-MK74AA
- GEARWELL SKU
- GWP-000000185
- Category
- Servo Systems
Key specifications
- Type
- servo motor
- Shaft
- Keyless shaft extension; no shaft seal
- Feedback
- Multi-turn absolute encoder, 1024 sin/cos, Hiperface
- Connectors
- SpeedTec DIN right-angle connectors, 180-degree rotatable
- Frame size
- 115 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPL-B420P-MK74AA is a Kinetix MPL low-inertia permanent magnet servo motor for 400 V-class drives in the 115 mm frame, rated 1.9 kW at 5000 rpm with 4.74 N·m continuous stall torque and 13.5 N·m peak stall torque. This version has a 1024 sin/cos absolute multi-turn encoder (Hiperface), a plain shaft without key or shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, a 24 V DC holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
Technical reference
| Product name | Allen-Bradley MPL-B420P-MK74AA Low-Inertia Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B420P-MK74AA |
| Category | Servo Systems |
| Type | servo motor |
| Shaft | Keyless shaft extension; no shaft seal |
| Feedback | Multi-turn absolute encoder, 1024 sin/cos, Hiperface |
| Connectors | SpeedTec DIN right-angle connectors, 180-degree rotatable |
| Frame size | 115 mm |
| Holding brake | 24 V DC holding brake |
| Voltage class | 400 V class |
| Mounting flange | IEC metric, free mounting holes (Type FF) |
| Motor voltage (catalog) | 460 V AC |
| Magnet Stack Length | 20 = 50.8 mm (2.0 in.) |
