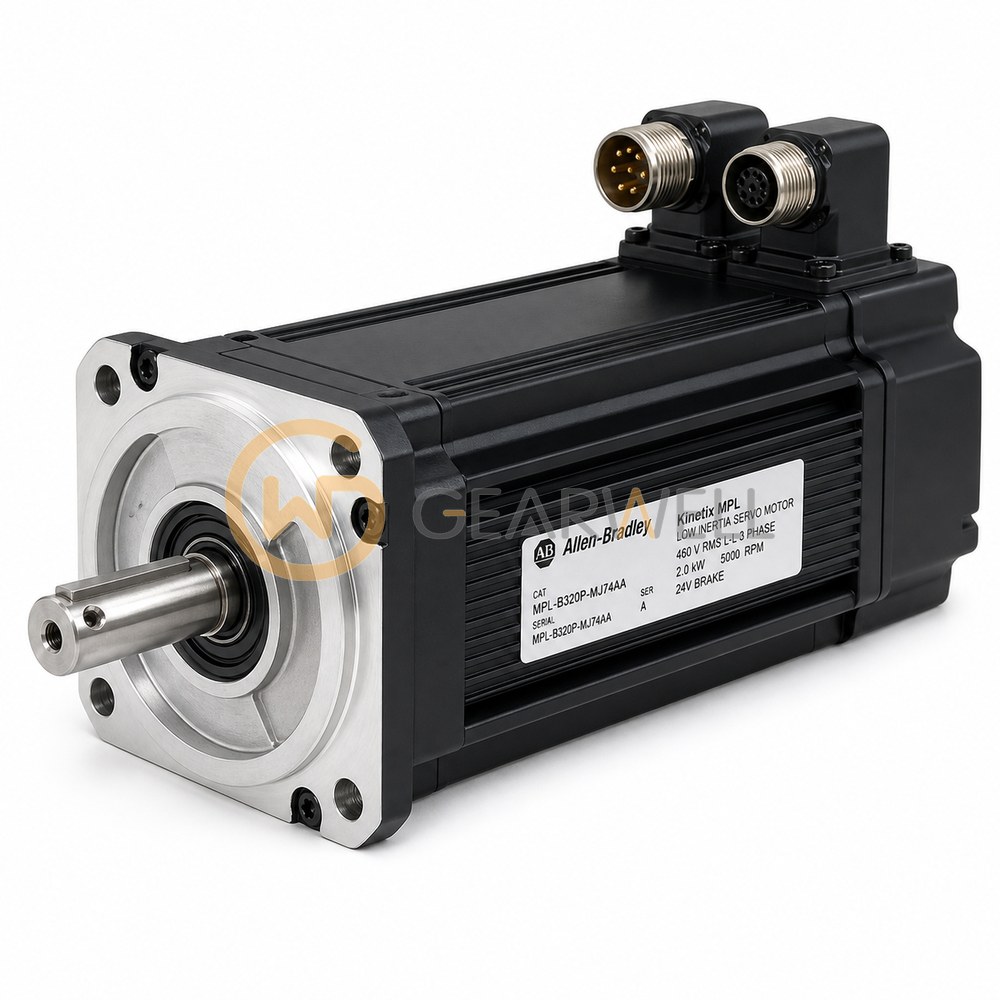

Allen-Bradley MPL-B320P-MJ74AA Low-Inertia Servo Motor
- Brand
- Allen-Bradley
- Model
- MPL-B320P-MJ74AA
- GEARWELL SKU
- GWP-000001535
- Category
- Servo Systems
Key specifications
- Type
- Servo Motor
- Holding brake
- 24 V DC holding brake
- Shaft
- Keyed shaft extension; no shaft seal
- Voltage class
- 400 V class
- Feedback
- Multi-turn absolute encoder, 1024 sin/cos, Hiperface
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPL-B320P-MJ74AA is a Kinetix MPL low-inertia permanent magnet servo motor for 400 V-class drives in the 100 mm frame, rated 1.5 kW at 5000 rpm with 3.05 N·m continuous stall torque and 7.91 N·m peak stall torque. This version has a 1024 sin/cos absolute multi-turn encoder (Hiperface), a keyed shaft without shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, a 24 V DC holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
Technical reference
| Product name | Allen-Bradley MPL-B320P-MJ74AA Low-Inertia Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B320P-MJ74AA |
| Category | Servo Systems |
| Type | Servo Motor |
| Holding brake | 24 V DC holding brake |
| Shaft | Keyed shaft extension; no shaft seal |
| Voltage class | 400 V class |
| Feedback | Multi-turn absolute encoder, 1024 sin/cos, Hiperface |
| Connectors | SpeedTec DIN right-angle connectors, 180-degree rotatable |
| Frame size | 100 mm |
| Factory Options | Standard |
| Magnet stack length | 50.8 mm |
