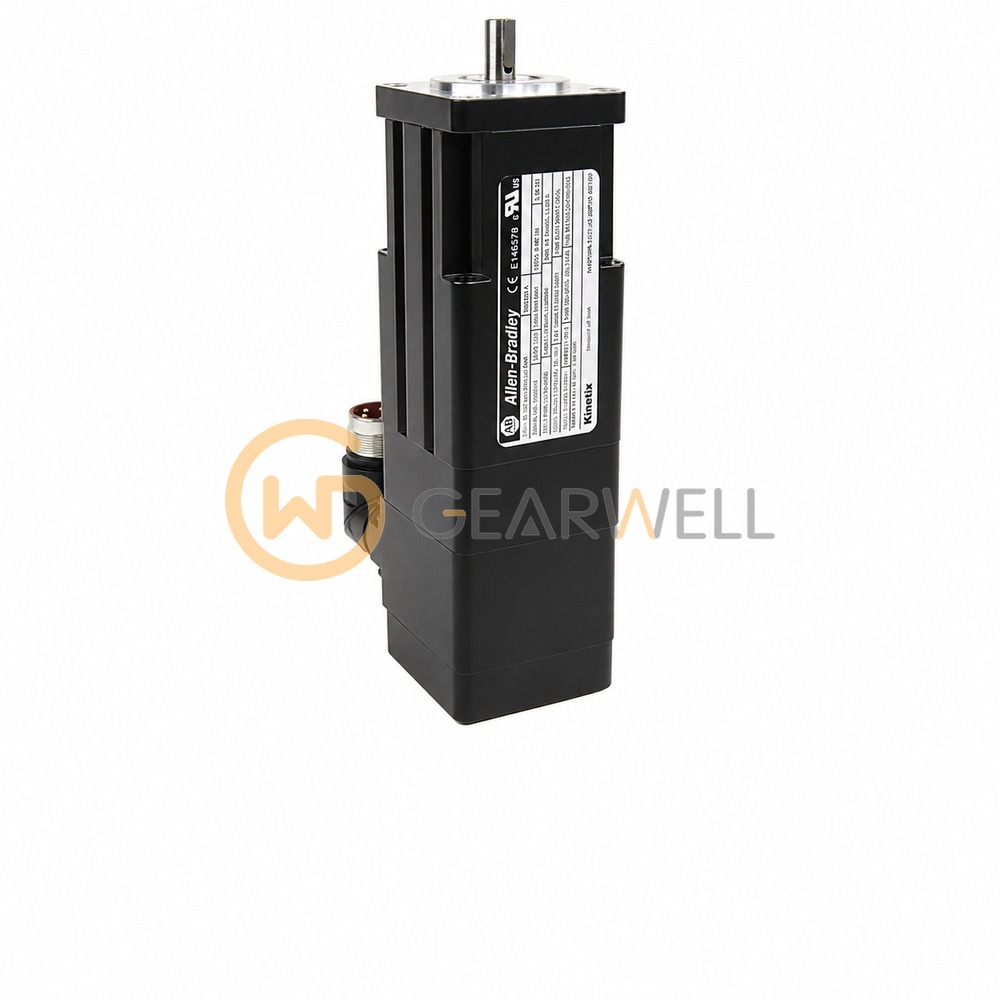

Allen-Bradley MPL-A1530U-EJ74AA MPL Low-Inertia Brushless Servo Motor

Product overview

The Allen-Bradley MPL-A1530U-EJ74AA is a Kinetix MPL low-inertia permanent magnet servo motor for 200 V-class drives in the 63 mm frame, rated 0.39 kW at 7000 rpm with 0.90 N·m continuous stall torque and 2.80 N·m peak stall torque. This version has a 128 sin/cos absolute single-turn encoder (Hiperface), a keyed shaft without shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, a 24 V DC holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
