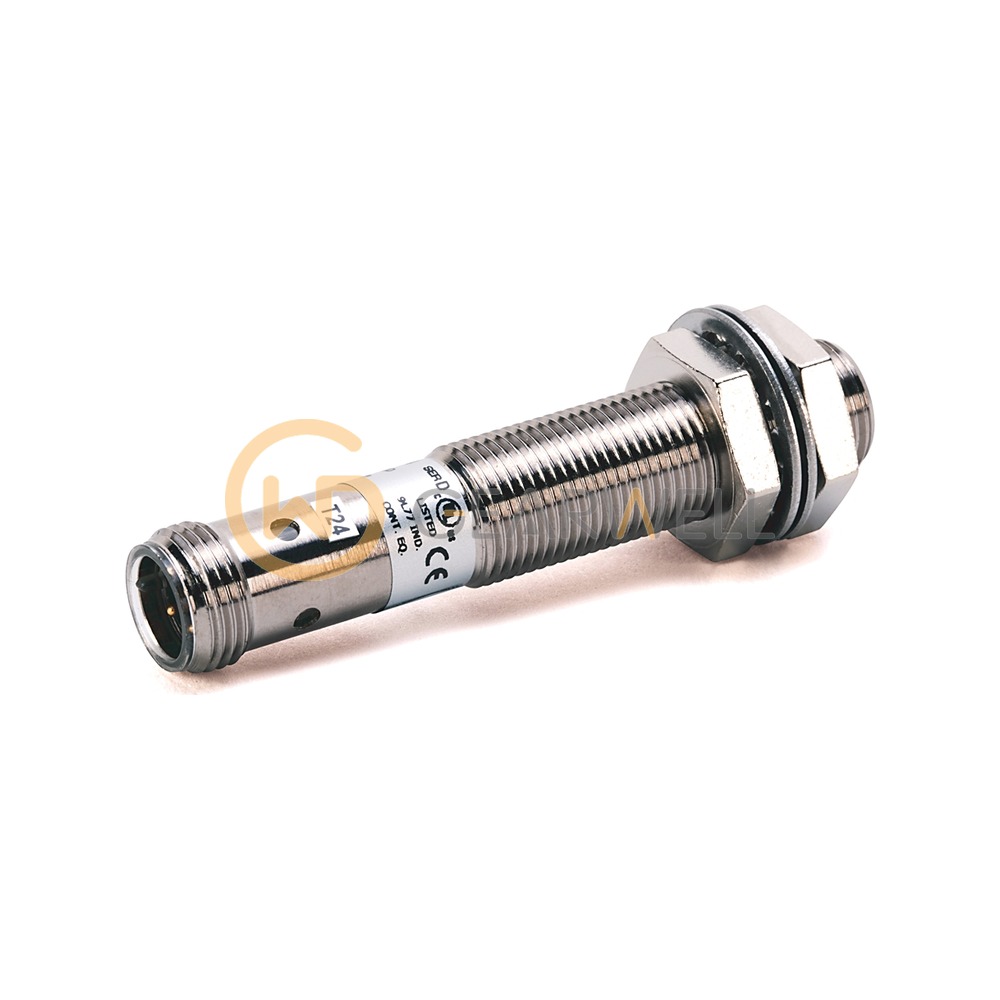

Allen-Bradley 872C-M4NP12-D4 872C 12 mm Inductive Proximity Sensor
- Brand
- Allen-Bradley
- Model
- 872C-M4NP12-D4
- GEARWELL SKU
- GWP-000014723
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Barrel
- 12 mm standard, chrome plated brass
- Output
- N.O., Source (PNP)
- Connection
- Micro (M12) quick-disconnect, DC
- Description
- 12 mm Barrel Inductive Prox Sensor
- Sensor type
- 3-Wire DC extended range, shielded
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 872C-M4NP12-D4 is an 872C WorldProx extended-range inductive proximity sensor in a 12 mm standard barrel, shielded, with 4 mm nominal sensing distance, PNP normally open (N.O.) output and a micro QD (M12) connector. Its switching frequency is 2550 Hz. It runs on 10…30V DC and is protected against false pulse on power, transient noise, reverse polarity, short circuit and overload. The same sensor is listed with cable (872C-M4NP12-E2) and Pico QD (872C-M4NP12-P3) connections.
Technical reference
| Product name | Allen-Bradley 872C-M4NP12-D4 872C 12 mm Inductive Proximity Sensor |
|---|---|
| Brand | Allen-Bradley |
| Model | 872C-M4NP12-D4 |
| Category | Proximity & Photoelectric Sensors |
| Barrel | 12 mm standard, chrome plated brass |
| Output | N.O., Source (PNP) |
| Connection | Micro (M12) quick-disconnect, DC |
| Description | 12 mm Barrel Inductive Prox Sensor |
| Sensor type | 3-Wire DC extended range, shielded |
| Catalog number | 872C-M4NP12-D4 |
| Voltage rating | 10-30V DC |
| Nominal sensing distance | 4 mm |
| Lifecycle status (Rockwell Automation) | Active |
