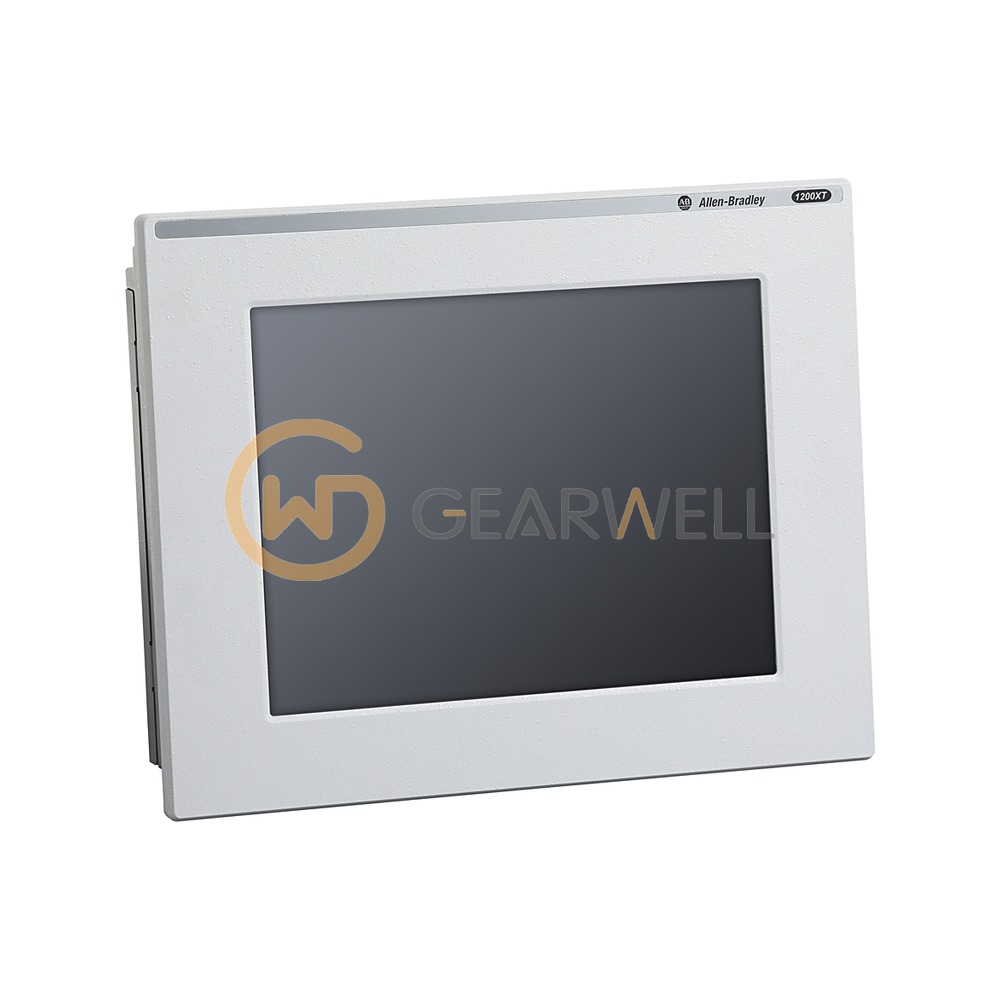

Allen-Bradley 6181X-12A2SWX1DC 1200XT Integrated Display Computer

Product overview

The Allen-Bradley 6181X-12A2SWX1DC is a 1200XT integrated display industrial computer for hazardous locations, Series H, with a 12.1 in. active matrix color TFT display (1024 x 768, 700 cd/m2) and a resistive, sunlight readable touch screen. It has an Intel Core i3-5010U, 2.1 GHz processor, 8 GB DDR3 RAM (16 GB max), a 128 GB MLC solid-state drive, 1 half-length PCIe slot, 2 RS-232 ports, 4 USB 2.0 ports, 2 Ethernet LAN ports and 1 DVI-I and 1 DisplayPort video output. It takes 18…32V DC (SELV), 50 W max, and weighs about 9 kg. In the United States it is rated Class I Division 2, Groups A, B, C, D T4 for -20 °C < Ta < 55 °C on the display side, and its ATEX marking includes IP66.
