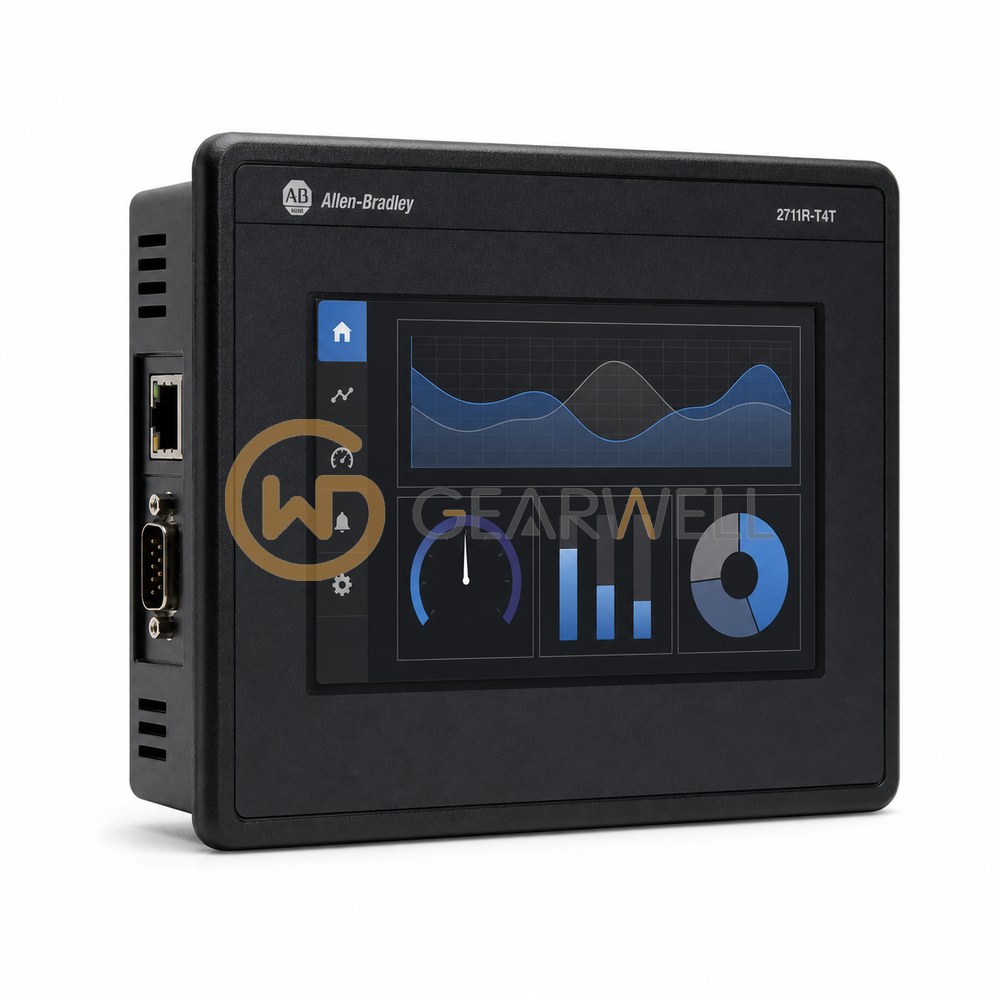

Allen-Bradley 2711R-T4T PanelView 800 4.3-inch Touch and Function-Key HMI
- Brand
- Allen-Bradley
- Model
- 2711R-T4T
- GEARWELL SKU
- GWP-000004356
- Category
- HMIs & Industrial PCs
Key specifications
- Display resolution
- 480 x 272 pixels
- Display size
- 4.3 in (4-inch class in installation manual)
- Panel cutout (H x W)
- 99.0 x 119.0 mm (H x W), ±0.5 mm
- Product type
- PanelView 800 terminal with touchscreen and function keys
- Input voltage
- 24 V DC nominal (18...32 V DC)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2711R-T4T is a PanelView 800 terminal with a 4 in. widescreen color TFT display, 480 x 272 pixels, 65K colors and an LED backlight rated 40,000 hours, operated by analog touch and function keys. Power consumption is 9 W max. It has an 800 MHz CPU running Windows CE 6.0, 256 MB flash and 256 MB RAM, one 10/100 Mbps Ethernet port, separate RS-232 and RS-422/RS-485 ports, a USB host port and a micro-SD slot. It is programmed with Connected Components Workbench (release 8.0 and later) for Micro800 and MicroLogix controllers, runs on 24V DC (18…32V DC), is rated for 0…50 °C, and the front bezel is IP65, NEMA 4X, 12, 13.
Technical reference
| Product name | Allen-Bradley 2711R-T4T PanelView 800 4.3-inch Touch and Function-Key HMI |
|---|---|
| Brand | Allen-Bradley |
| Model | 2711R-T4T |
| Category | HMIs & Industrial PCs |
| Display resolution | 480 x 272 pixels |
| Display size | 4.3 in (4-inch class in installation manual) |
| Panel cutout (H x W) | 99.0 x 119.0 mm (H x W), ±0.5 mm |
| Product type | PanelView 800 terminal with touchscreen and function keys |
| Input voltage | 24 V DC nominal (18...32 V DC) |
| Product family | PanelView 800 |
| Communication ports | One 10/100 Mbps Ethernet port, RS-232, RS-422/RS-485 and USB host |
