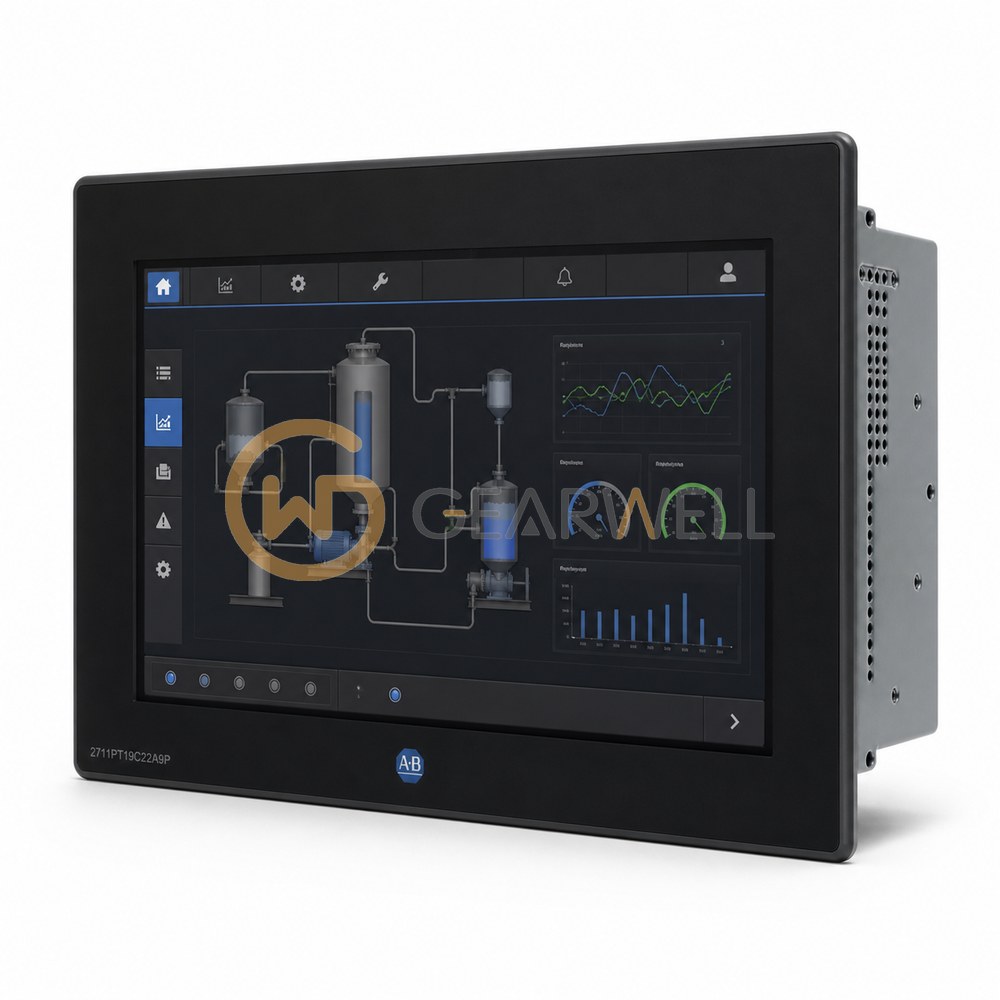

Allen-Bradley 2711P-T19C22A9P PanelView Plus 7 Performance 19-inch Touchscreen HMI
- Brand
- Allen-Bradley
- Model
- 2711PT19C22A9P
- GEARWELL SKU
- GWP-000001303
- Category
- HMIs & Industrial PCs
Key specifications
- Overall height
- 411 mm (16.18 in)
- Display size
- 19 in
- Input voltage
- 100...240 V AC
- Panel cutout (H x W)
- 383 x 457 mm (H x W)
- Operator input
- Analog resistive touchscreen
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2711P-T19C22A9P is a PanelView Plus 7 Performance operator terminal with a 19-in. color TFT touch screen at 1280 x 1024 SXGA resolution, two 10/100 Ethernet ports for star, linear or DLR networks and a 100…240V AC supply. Rockwell lists the AC-powered A9P versions as discontinued. It runs FactoryTalk View Machine Edition applications with ControlLogix and CompactLogix 5370 controllers on EtherNet/IP. The front is rated NEMA and UL Type 12, 13 and 4X and IP66, for 0…55 °C operation (19-in. Series A: 0…50 °C).
Technical reference
| Product name | Allen-Bradley 2711P-T19C22A9P PanelView Plus 7 Performance 19-inch Touchscreen HMI |
|---|---|
| Brand | Allen-Bradley |
| Model | 2711PT19C22A9P |
| Category | HMIs & Industrial PCs |
| Overall height | 411 mm (16.18 in) |
| Display size | 19 in |
| Input voltage | 100...240 V AC |
| Panel cutout (H x W) | 383 x 457 mm (H x W) |
| Operator input | Analog resistive touchscreen |
| Typical display brightness | 300 cd/m² (nits) or greater |
| Ethernet interfaces | Two 10/100Base-T Ethernet ports; star, linear and DLR topologies |
| Maximum power consumption | 105 VA maximum |
| Display resolution | 1280 x 1024 SXGA |
