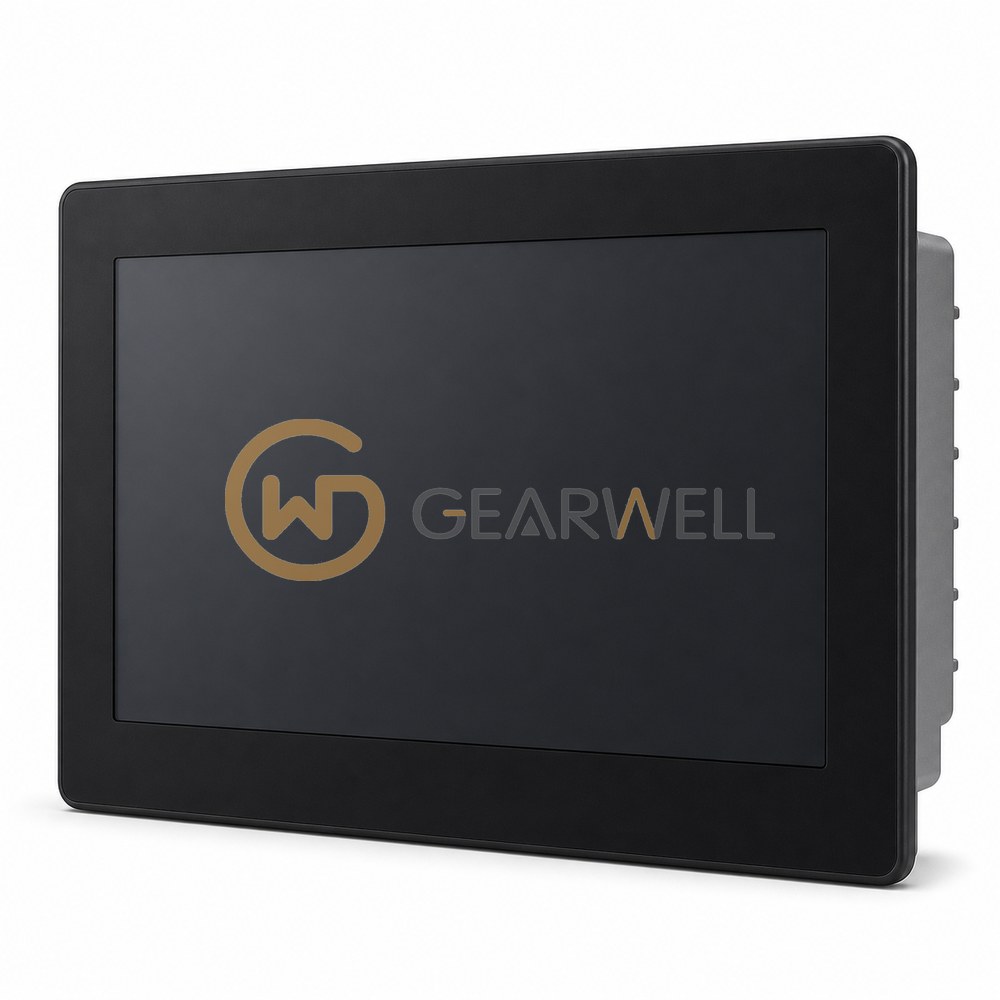

Allen-Bradley 2711P-T12W22D9PK PanelView Plus 7 Performance 12.1-inch Conformal-Coated Touchscreen HMI
- Brand
- Allen-Bradley
- Model
- 2711PT12W22D9PK
- GEARWELL SKU
- GWP-000004335
- Category
- HMIs & Industrial PCs
Key specifications
- Memory by hardware series
- Series A: 512 MB RAM, 512 MB storage (approximately 80 MB for applications); Series B: 4 GB RAM, 19.87 GB storage (approximately 2 GB for applications)
- Input power
- 24 V DC nominal (18...30 V DC)
- Display size
- 12.1 in widescreen
- Display type
- TFT color
- Panel cutout (H x W)
- 218 x 312 mm (H x W)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2711P-T12W22D9PK is a PanelView Plus 7 Performance operator terminal with a 12.1-in. widescreen color TFT touch screen at 1280 x 800 WXGA resolution, two 10/100 Ethernet ports for star, linear or DLR networks and a 24V DC supply. Series B terminals run Windows 10 IoT Core with 4 GB RAM and about 2 GB for applications, while Series A units used Windows CE 6.0. They run FactoryTalk View Machine Edition applications with ControlLogix and CompactLogix 5370 controllers on EtherNet/IP. The front is rated NEMA and UL Type 12, 13 and 4X and IP66, for 0…55 °C operation. The K suffix means the electronics are conformal coated for harsh, corrosive environments, rated G3 to ANSI/ISA 71.04-2013.
Technical reference
| Product name | Allen-Bradley 2711P-T12W22D9PK PanelView Plus 7 Performance 12.1-inch Conformal-Coated Touchscreen HMI |
|---|---|
| Brand | Allen-Bradley |
| Model | 2711PT12W22D9PK |
| Category | HMIs & Industrial PCs |
| Memory by hardware series | Series A: 512 MB RAM, 512 MB storage (approximately 80 MB for applications); Series B: 4 GB RAM, 19.87 GB storage (approximately 2 GB for applications) |
| Input power | 24 V DC nominal (18...30 V DC) |
| Display size | 12.1 in widescreen |
| Display type | TFT color |
| Panel cutout (H x W) | 218 x 312 mm (H x W) |
| Product type | PanelView Plus 7 Performance touchscreen terminal |
| Operator input | Analog resistive touchscreen |
| Operating system by hardware series | Series A: Windows CE 6.0 with Extended Features; Series B: Windows 10 IoT Core |
| Ethernet interfaces | Two 10/100Base-T Ethernet ports; star, linear and DLR topologies |
| Maximum power consumption | Series A: 50 W maximum; Series B: 33 W maximum |
| Display resolution | 1280 x 800 WXGA |
| Operating temperature | 0...55 °C |
| Manufacturer catalog number | 2711P-T12W22D9PK |
