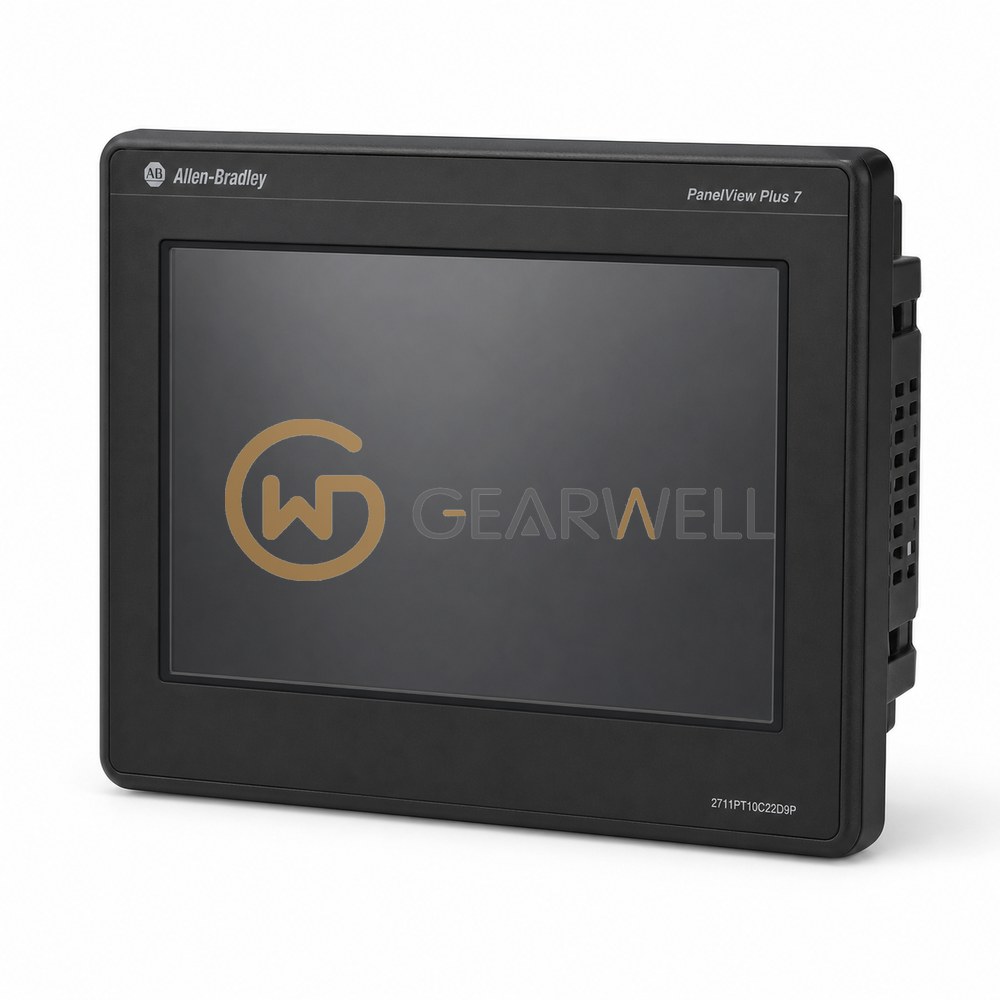

Allen-Bradley 2711P-T10C22D9P PanelView Plus 7 Performance 10.4-inch Touchscreen HMI
- Brand
- Allen-Bradley
- Model
- 2711PT10C22D9P
- GEARWELL SKU
- GWP-000003167
- Category
- HMIs & Industrial PCs
Key specifications
- Overall height
- 252 mm (9.92 in)
- Memory by hardware series
- Series A: 512 MB RAM, 512 MB storage (approximately 80 MB for applications); Series B: 4 GB RAM, 19.87 GB storage (approximately 2 GB for applications)
- Display size
- 10.4 in
- Product type
- PanelView Plus 7 Performance touchscreen terminal
- Operator input
- Analog resistive touchscreen
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2711P-T10C22D9P is a PanelView Plus 7 Performance operator terminal with a 10.4-in. color TFT touch screen at 800 x 600 resolution, two 10/100 Ethernet ports for star, linear or DLR networks and a 24V DC supply. Series B terminals run Windows 10 IoT Core with 4 GB RAM and about 2 GB for applications, while Series A units used Windows CE 6.0. They run FactoryTalk View Machine Edition applications with ControlLogix and CompactLogix 5370 controllers on EtherNet/IP. The front is rated NEMA and UL Type 12, 13 and 4X and IP66, for 0…55 °C operation.
Technical reference
| Product name | Allen-Bradley 2711P-T10C22D9P PanelView Plus 7 Performance 10.4-inch Touchscreen HMI |
|---|---|
| Brand | Allen-Bradley |
| Model | 2711PT10C22D9P |
| Category | HMIs & Industrial PCs |
| Overall height | 252 mm (9.92 in) |
| Memory by hardware series | Series A: 512 MB RAM, 512 MB storage (approximately 80 MB for applications); Series B: 4 GB RAM, 19.87 GB storage (approximately 2 GB for applications) |
| Display size | 10.4 in |
| Product type | PanelView Plus 7 Performance touchscreen terminal |
| Operator input | Analog resistive touchscreen |
| Typical display brightness | 300 cd/m² (nits) or greater |
| Manufacturer lifecycle status | Active |
| Operating system by hardware series | Series A: Windows CE 6.0 with Extended Features; Series B: Windows 10 IoT Core |
| Ethernet interfaces | Two 10/100Base-T Ethernet ports; star, linear and DLR topologies |
| Display resolution | 800 x 600 SVGA |
