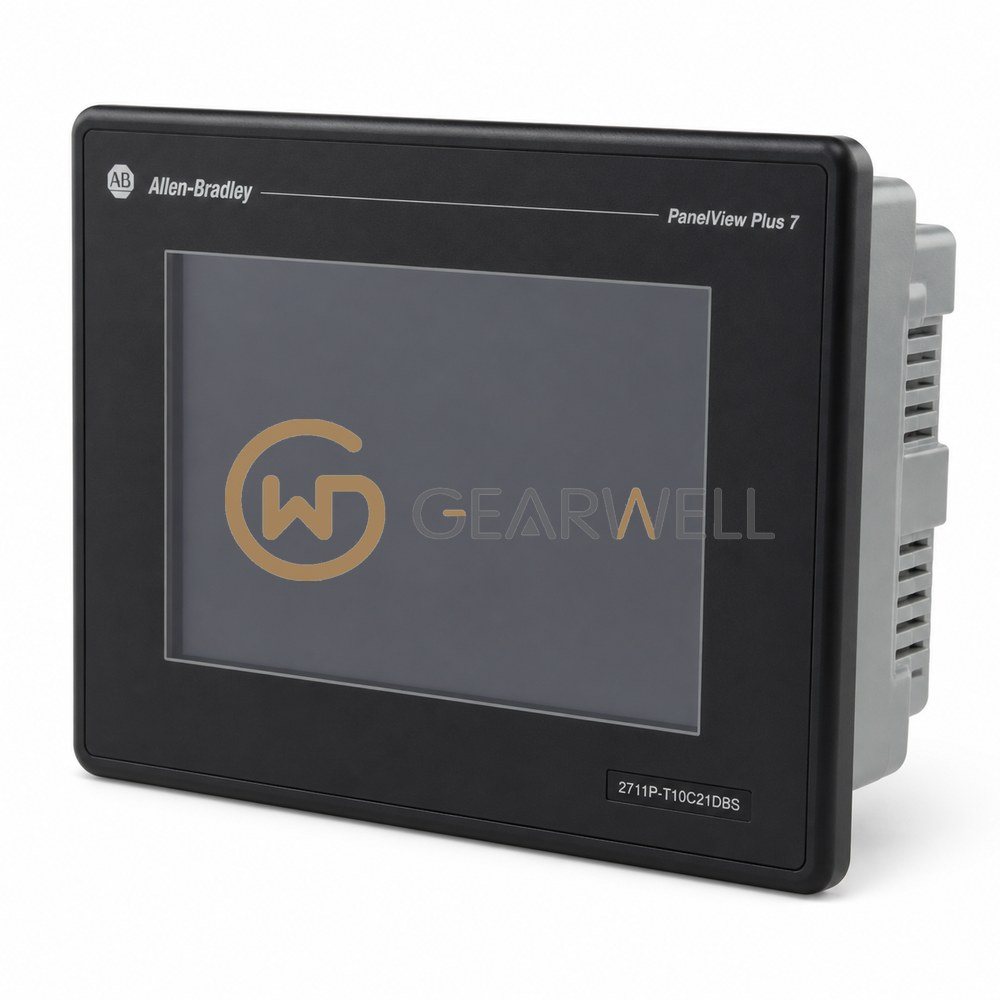

Allen-Bradley 2711P-T10C21D8S PanelView Plus 7 Standard 10.4-inch Single-Ethernet HMI
- Brand
- Allen-Bradley
- Model
- 2711PT10C21D8S
- GEARWELL SKU
- GWP-000001315
- Category
- Industrial Automation Parts
Key specifications
- Memory
- 512 MB RAM; 512 MB storage; 80 MB nonvolatile application storage
- Display size, diagonal
- 10.4 in
- Display type
- Color TFT LCD
- Panel cutout (H x W), approximate
- 224 x 269 mm
- Product type
- PanelView Plus 7 Standard operator terminal
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2711P-T10C21D8S is a PanelView Plus 7 Standard operator terminal with a 10.4-in. color TFT touch screen at 800 x 600 SVGA resolution, one 10/100 Ethernet port with IEEE 1588 support and a 24V DC supply. Rockwell sizes the Standard terminal for one controller, up to 100 screens and up to 500 alarms, and it runs FactoryTalk View Machine Edition applications on Windows CE with a PDF viewer, an SD card slot and USB host and device ports. It connects to ControlLogix 5570 and CompactLogix 5370 controllers over EtherNet/IP and is certified for Class I, Div. 2 and ATEX, IECEx and INMETRO Zones 2 and 22. Series D terminals need firmware version 13.x or later.
Technical reference
| Product name | Allen-Bradley 2711P-T10C21D8S PanelView Plus 7 Standard 10.4-inch Single-Ethernet HMI |
|---|---|
| Brand | Allen-Bradley |
| Model | 2711PT10C21D8S |
| Category | Industrial Automation Parts |
| Memory | 512 MB RAM; 512 MB storage; 80 MB nonvolatile application storage |
| Display size, diagonal | 10.4 in |
| Display type | Color TFT LCD |
| Panel cutout (H x W), approximate | 224 x 269 mm |
| Product type | PanelView Plus 7 Standard operator terminal |
| Brand marking | Allen-Bradley brand marking |
| Input voltage | 24 V DC nominal (18...30 V DC) |
| Ethernet ports | 1 x 10/100Base-T; Auto MDI/MDI-X; IEEE 1588 support |
| Operator input | Analog resistive touch screen |
| Maximum DC power consumption | 50 W maximum (2.1 A at 24 V DC) |
| Display resolution | 800 x 600 SVGA |
| Overall dimensions (H x W x D), approximate | 252 x 297 x 56.5 mm |
| Operating temperature | 0 to 55 °C |
