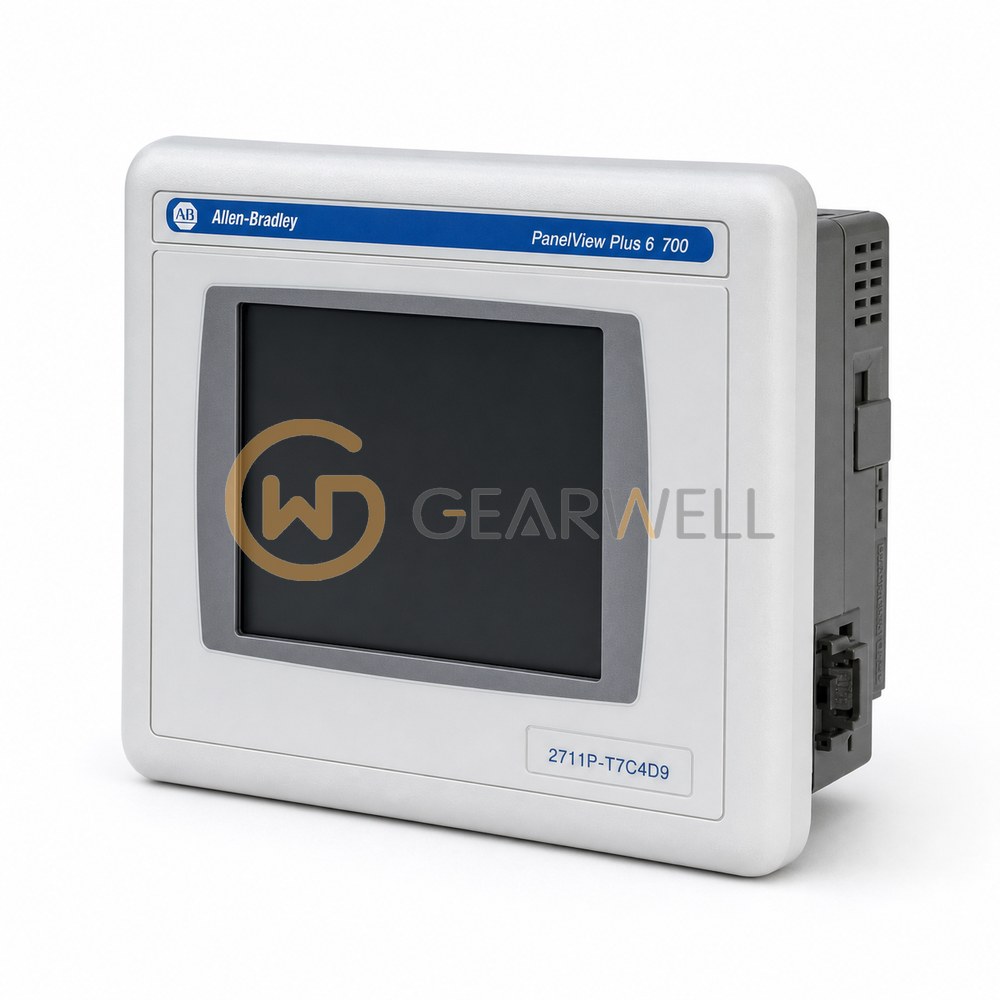

Allen-Bradley 2711P-T7C4D9 PanelView Plus 6 700 6.5-inch Touchscreen HMI

Key specifications

Memory: 512 MB RAM; 512 MB nonvolatile memory (approximately 79 MB free user memory)
Display resolution: 640 x 480 pixels
Terminal class: PanelView Plus 6 700
Display size: 6.5 in
Display type: Color active-matrix TFT

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Allen-Bradley 2711P-T7C4D9 PanelView Plus 6 700 6.5-inch Touchscreen HMI
Brand	Allen-Bradley
Model	2711P-T7C4D9
Category	HMIs & Industrial PCs
Memory	512 MB RAM; 512 MB nonvolatile memory (approximately 79 MB free user memory)
Display resolution	640 x 480 pixels
Terminal class	PanelView Plus 6 700
Display size	6.5 in
Display type	Color active-matrix TFT
Input voltage	24 V DC nominal (18...32 V DC)
Depth for this power configuration	55 mm without optional communication module
Operator input	Analog resistive touchscreen
Catalog operating system	Windows CE 6.0 with extended features and file viewers
Panel cutout (H x W)	154 x 220 mm (H x W)
Power consumption	70 W maximum; 39 W typical
Communication interfaces	10/100 Mbps Ethernet, RS-232 and two USB host ports; network interface for an optional communication module
Installed front protection	IP65 at the front when properly installed
