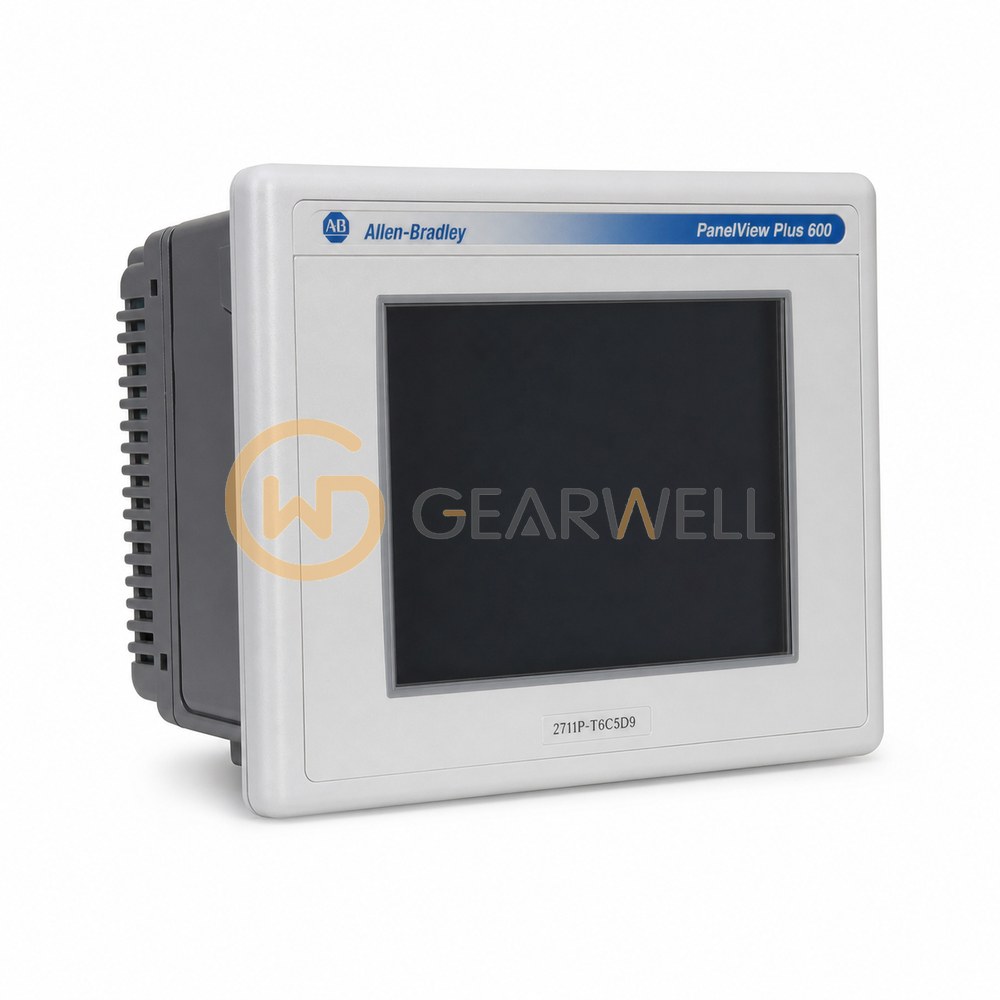

Allen-Bradley 2711P-T6C5D9 PanelView Plus 6 600 5.7-inch Touchscreen HMI

Key specifications

Memory: 256 MB RAM; 512 MB nonvolatile memory (approximately 73 MB free user memory)
Display resolution: 320 x 240 pixels
Display size: 5.7 in
Display type: Color active-matrix TFT
Input voltage: 24 V DC nominal (18...30 V DC)

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Allen-Bradley 2711P-T6C5D9 PanelView Plus 6 600 5.7-inch Touchscreen HMI
Brand	Allen-Bradley
Model	2711P-T6C5D9
Category	HMIs & Industrial PCs
Memory	256 MB RAM; 512 MB nonvolatile memory (approximately 73 MB free user memory)
Display resolution	320 x 240 pixels
Display size	5.7 in
Display type	Color active-matrix TFT
Input voltage	24 V DC nominal (18...30 V DC)
Depth for this power configuration	68 mm
Operator input	Analog resistive touchscreen
Catalog operating system	Windows CE 6.0 with extended features and file viewers
Panel cutout (H x W)	123 x 156 mm (H x W)
Dimensions (H x W x D)	152 x 185 x 68 mm (H x W x D)
Communication interfaces	RS-232, one USB host and one USB device port
Installed front protection	IP66 at the front when properly installed
Installed enclosure rating	NEMA/UL Type 4X (indoor use only), when properly installed
