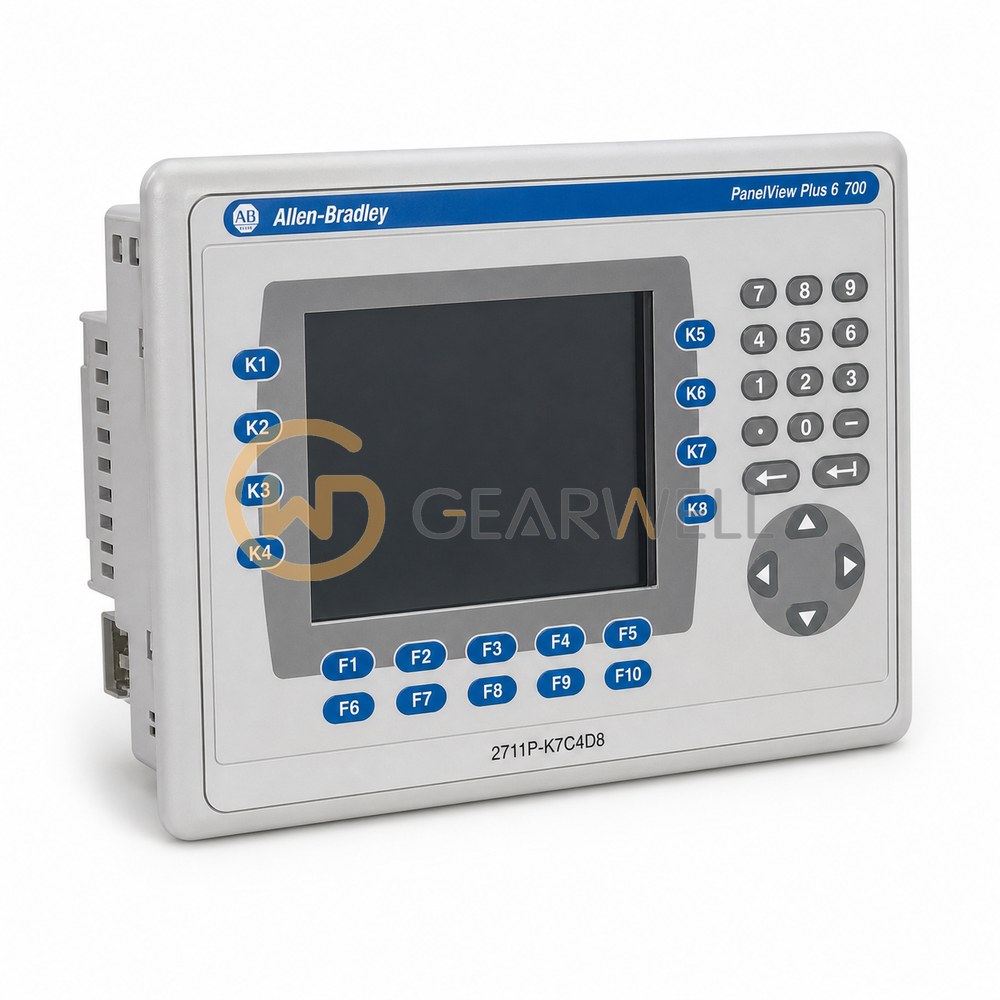

Allen-Bradley 2711P-K7C4D8 PanelView Plus 6 700 6.5-inch Keypad HMI

Key specifications

Memory: 512 MB RAM; 512 MB nonvolatile memory (approximately 79 MB free user memory)
Display resolution: 640 x 480 pixels
Terminal class: PanelView Plus 6 700
Display size: 6.5 in
Display type: Color active-matrix TFT

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Allen-Bradley 2711P-K7C4D8 PanelView Plus 6 700 6.5-inch Keypad HMI
Brand	Allen-Bradley
Model	2711P-K7C4D8
Category	HMIs & Industrial PCs
Memory	512 MB RAM; 512 MB nonvolatile memory (approximately 79 MB free user memory)
Display resolution	640 x 480 pixels
Terminal class	PanelView Plus 6 700
Display size	6.5 in
Display type	Color active-matrix TFT
Input voltage	24 V DC nominal (18...32 V DC)
Depth for this power configuration	55 mm without optional communication module
Operator input	Keypad
Catalog operating system	Windows CE 6.0 without extended features
Panel cutout (H x W)	167 x 264 mm (H x W)
Power consumption	70 W maximum; 39 W typical
Communication interfaces	10/100 Mbps Ethernet, RS-232 and two USB host ports; network interface for an optional communication module
Installed front protection	IP65 at the front when properly installed
