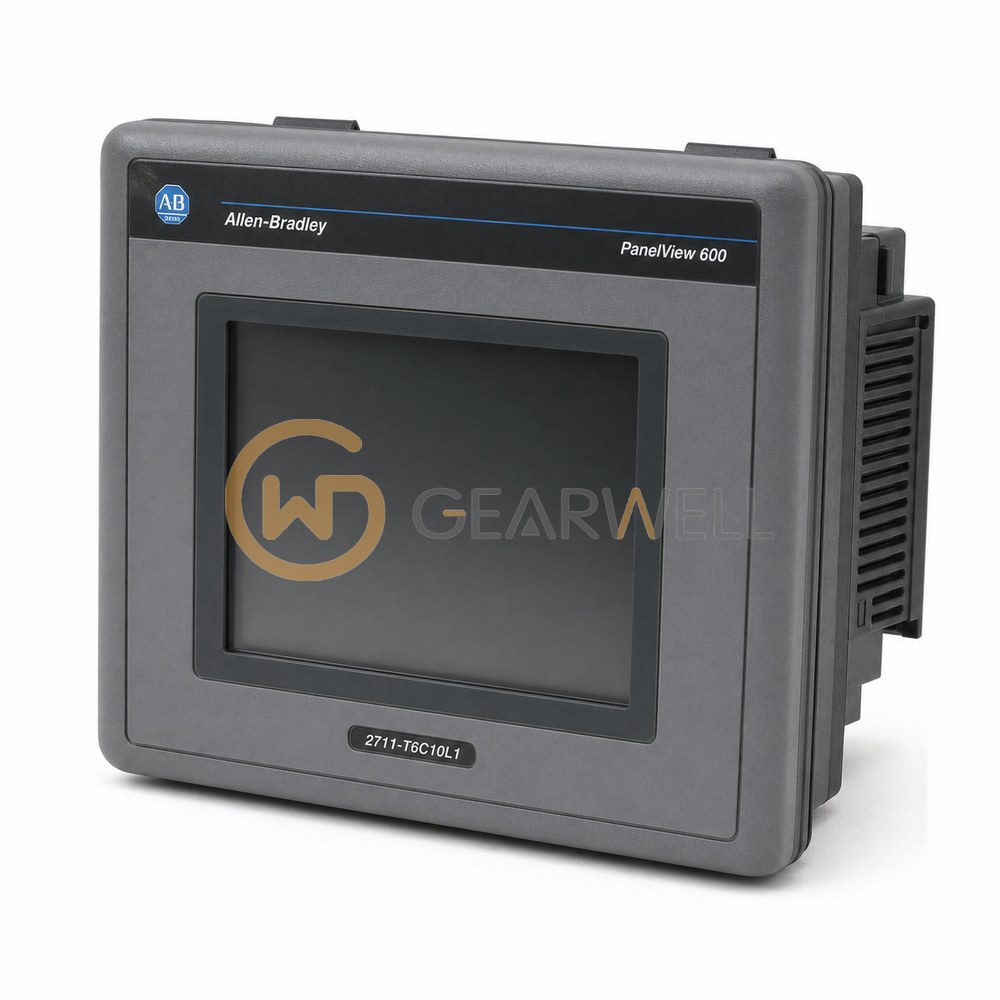

Allen-Bradley 2711-T6C10L1 PanelView 600 5-inch Touchscreen HMI
- Brand
- Allen-Bradley
- Model
- 2711-T6C10L1
- GEARWELL SKU
- GWP-000000488
- Category
- HMIs & Industrial PCs
Key specifications
- Power
- DC
- Nonvolatile memory
- 240 KB
- Dimensions (H x W x D)
- 152 x 185 x 96 mm (H x W x D)
- Display resolution
- 320 x 240 pixels
- Display area (W x H)
- 115 x 87 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2711-T6C10L1 is a PanelView Standard 600 color terminal operated by a touch screen. It has a DeviceNet port and an RS-232 printer port. It runs on 24V DC only (18…32V DC), 24 W max. It is designed to be installed in a NEMA Type 12, 13, 4X (indoor use only), IP54 or IP65 enclosure.
Technical reference
| Product name | Allen-Bradley 2711-T6C10L1 PanelView 600 5-inch Touchscreen HMI |
|---|---|
| Brand | Allen-Bradley |
| Model | 2711-T6C10L1 |
| Category | HMIs & Industrial PCs |
| Power | DC |
| Nonvolatile memory | 240 KB |
| Dimensions (H x W x D) | 152 x 185 x 96 mm (H x W x D) |
| Display resolution | 320 x 240 pixels |
| Display area (W x H) | 115 x 87 mm |
| Display size | 5 in |
| Display type | Color active-matrix TFT |
| Product type | PanelView Standard 600 terminal |
| Communication | DeviceNet |
| Input voltage | 24 V DC nominal (18...32 V DC) |
| Operator input | Touchscreen |
| Maximum power consumption | 24 W maximum |
| RS-232 printer port | Yes |
