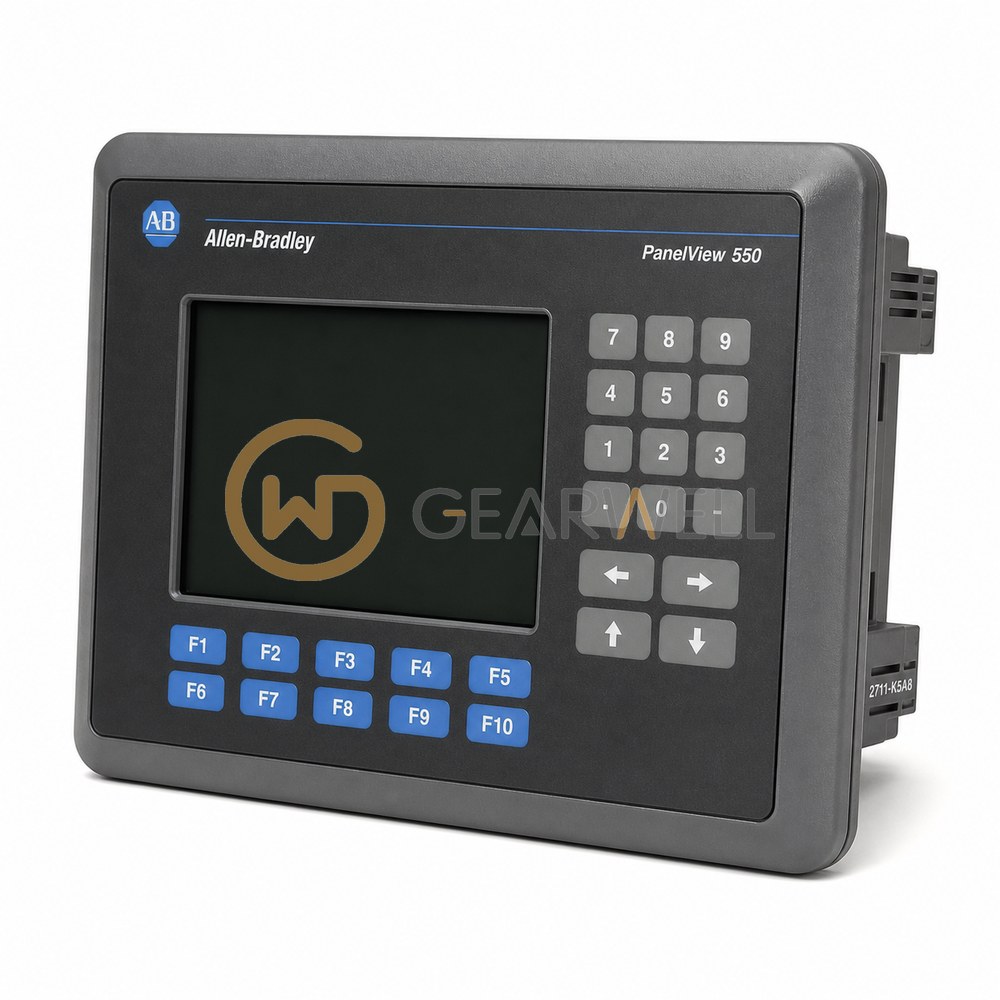

Allen-Bradley 2711-K5A8 PanelView 550 5.5-inch Keypad HMI
- Brand
- Allen-Bradley
- Model
- 2711-K5A8
- GEARWELL SKU
- GWP-000001143
- Category
- HMIs & Industrial PCs
Key specifications
- Power
- AC
- Nonvolatile / RAM memory
- 240 KB / 170 KB
- Dimensions (H x W x D)
- 167 x 266 x 106 mm (H x W x D)
- Display resolution
- 256 x 128 pixels
- Display area (W x H)
- 120 x 60 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2711-K5A8 is a PanelView Standard 550 monochrome terminal operated by a keypad. It has a DH+ port and an RS-232 printer port. It runs on 85…264V AC, 47…63 Hz, and consumes 45 VA max. It is designed to be installed in a NEMA Type 12, 13, 4X (indoor use only), IP54 or IP65 enclosure.
Technical reference
| Product name | Allen-Bradley 2711-K5A8 PanelView 550 5.5-inch Keypad HMI |
|---|---|
| Brand | Allen-Bradley |
| Model | 2711-K5A8 |
| Category | HMIs & Industrial PCs |
| Power | AC |
| Nonvolatile / RAM memory | 240 KB / 170 KB |
| Dimensions (H x W x D) | 167 x 266 x 106 mm (H x W x D) |
| Display resolution | 256 x 128 pixels |
| Display area (W x H) | 120 x 60 mm |
| Display size | 5.5 in |
| Display type | Monochrome LCD blue-mode display |
| Product type | PanelView Standard 550 terminal |
| Communication | DH+ |
| Input voltage | 85...264 V AC, 47...63 Hz |
| Operator input | Keypad |
| Maximum power consumption | 45 VA maximum |
| RS-232 printer port | Yes |
