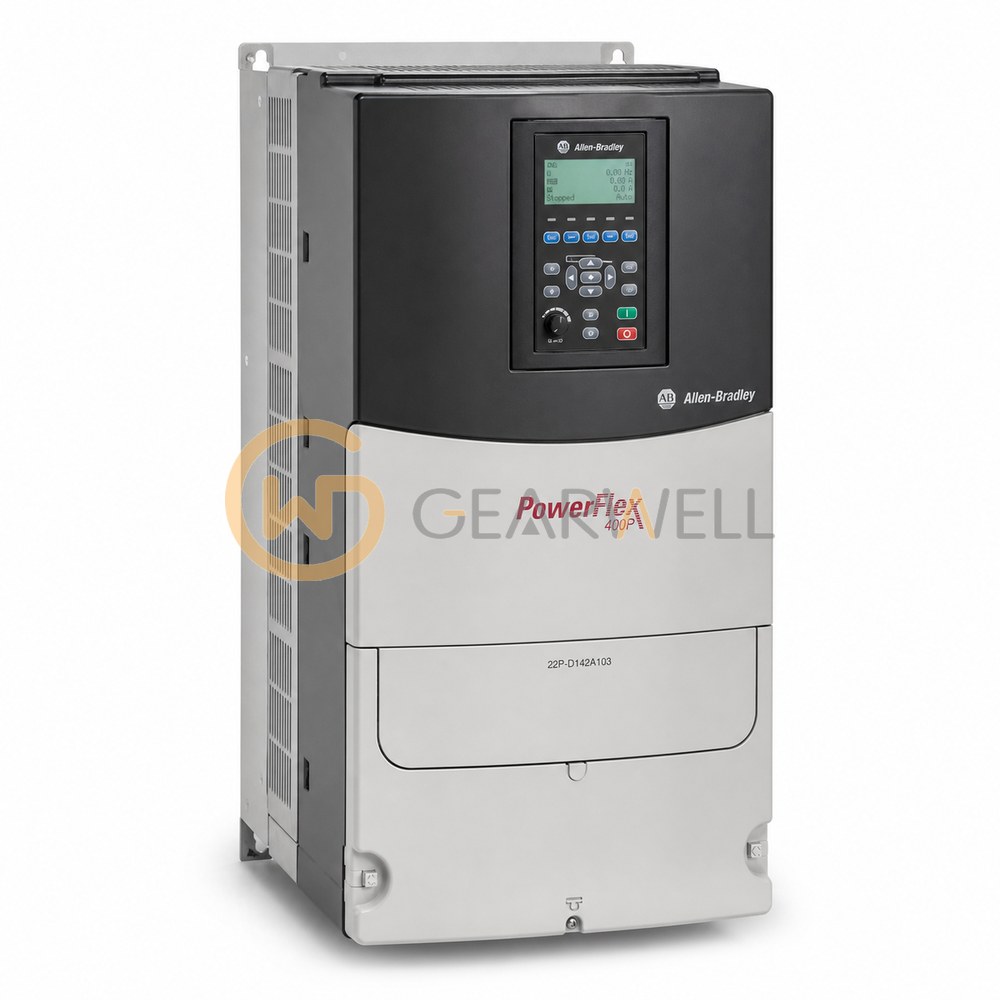

Allen-Bradley 22P-D142A103 PowerFlex 400P 75 kW ND AC Drive
- Brand
- Allen-Bradley
- Model
- 22P-D142A103
- GEARWELL SKU
- GWP-000003715
- Category
- Variable Frequency Drives
Key specifications
- Enclosure and mounting
- Panel mount, IP30
- EMC filtering
- No integral EMC filter
- Frame size
- E
- Product type
- PowerFlex 400P AC variable frequency drive
- Communication
- RS485 / DSI
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 22P-D142A103 PowerFlex 400P 75 kW ND AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 22P-D142A103 |
| Category | Variable Frequency Drives |
| Enclosure and mounting | Panel mount, IP30 |
| EMC filtering | No integral EMC filter |
| Frame size | E |
| Product type | PowerFlex 400P AC variable frequency drive |
| Communication | RS485 / DSI |
| AC input | 380-480 V AC, 3-phase, 50/60 Hz (permitted range: 340-528 V AC) |
| Output voltage | 0-460 V AC, 3-phase |
| Operator interface | Fixed keypad with integral LCD and four LED indicators |
| Heavy-duty motor power | 55 kW (75 HP) |
| Normal-duty motor power | 75 kW (100 HP) |
| Continuous output current (normal duty) | 142 A at 45 °C; 128 A at 50 °C |
| One-minute output current | 158 A |
| Three-second output current | 213 A |
