Allen-Bradley 22C-D012F103 PowerFlex 400 5.5 kW 480 V AC VFD

Product overview

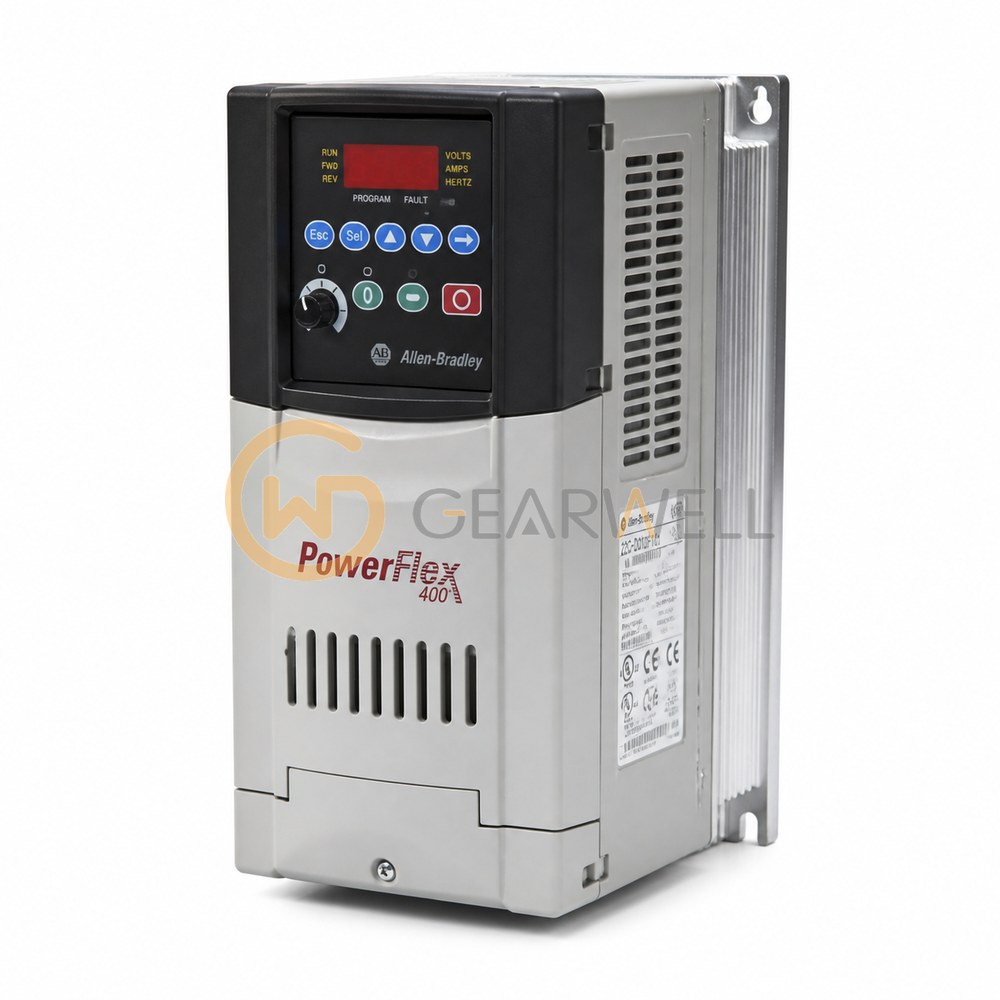

The Allen-Bradley 22C-D012F103 is a PowerFlex 400 AC drive from Rockwell's PowerFlex family. It is rated 5.5 kW (7.5 HP), for 380…480 V AC 3-phase input and 0…460 V 3-phase output, in frame C. Output current is 12 A. It is a flange-mount drive whose heatsink mounts through the back of the enclosure, removing a large portion of the heat from the cabinet; the backside is rated IP66, NEMA/UL Type 4X/12. It is designed for variable-torque fan and pump applications, with sinusoidal PWM volts/hertz control, output frequency 0…320 Hz, 110% overload for up to 1 minute, built-in PID, a purge input and a fire/freeze (function loss) input. The integral keypad has a 2-line, 16-character LCD and configurable Hand/Off/Auto keys; Modbus RTU, P1-FLN and Metasys N2 are embedded on the RS-485 port. I/O comprises 3 semi-programmable and 4 programmable digital inputs, one isolated –10…+10 V or 4…20 mA and one non-isolated 0…10 V or 4…20 mA analog input, two programmable form C relays, one opto output and two analog outputs (0…10 V or 0…20 mA). The drive is UL listed for plenums, and optional 22-COMM adapters add DeviceNet, EtherNet/IP, PROFIBUS DP, LonWorks or BACnet.
