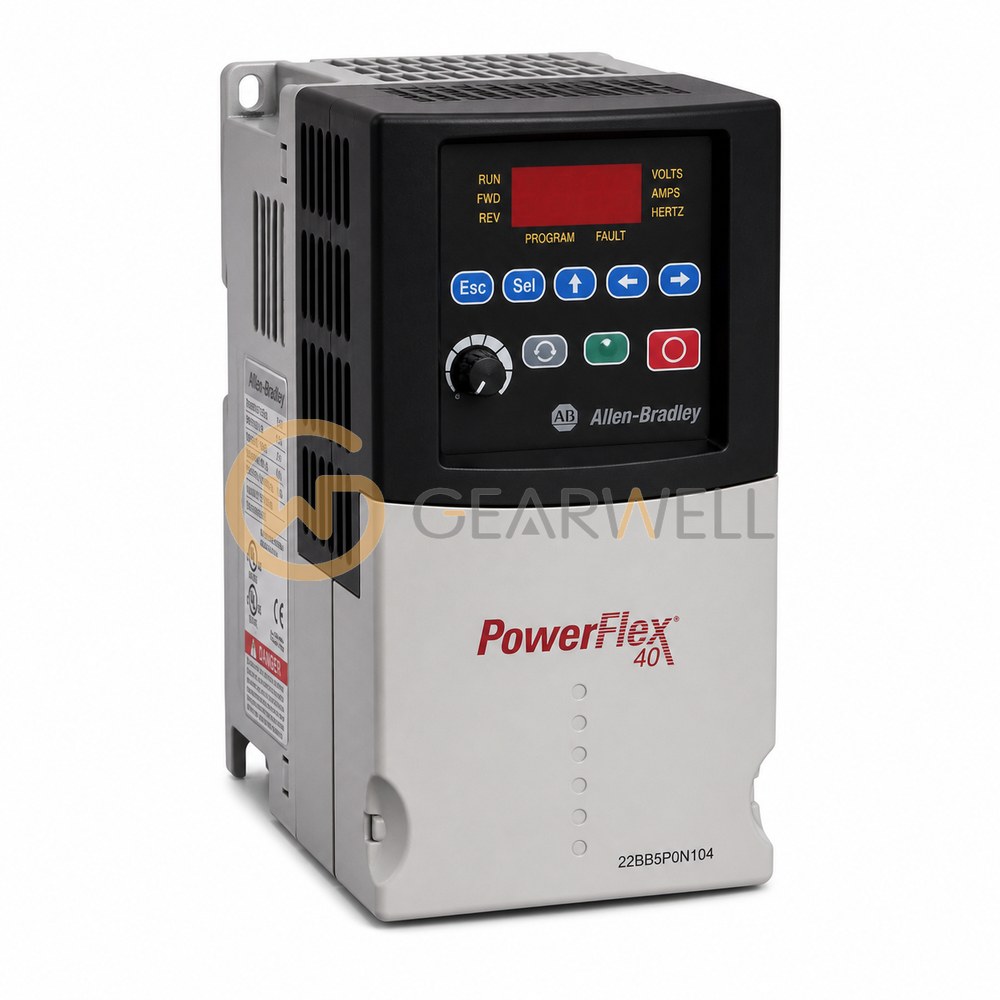

Allen-Bradley 22B-B5P0N104 PowerFlex 40 0.75 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 22BB5P0N104
- GEARWELL SKU
- GWP-000000583
- Category
- Variable Frequency Drives
Key specifications
- Enclosure and mounting
- Panel mount, IP20 open
- EMC filtering
- No integral EMC filter
- Displacement power factor
- 0.98 across the speed range
- Product type
- PowerFlex 40 AC variable frequency drive
- Communication
- RS485
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 22B-B5P0N104 is a PowerFlex 40 AC drive from Rockwell's PowerFlex family. It is rated 0.75 kW (1.0 HP) with 5.0 A output current, for 200…240 V AC 3-phase input and 0…230 V 3-phase output, in an IP20 / NEMA/UL Type Open panel mount design (frame B). The IP20 version is rated for -10…+50 °C ambient. It has an internal brake IGBT for dynamic braking. Input current is 5.7 A (2.45 kVA) over a 180…264 V AC supply range. It uses sensorless vector control with autotune, programmable output frequency 0…400 Hz, 150% overload for 60 s or 200% for 3 s, an adjustable PWM carrier of 2…16 kHz, integral PID and timer, counter, basic logic and StepLogic functions. I/O is 24 V DC sink or source with three dedicated and four programmable digital inputs, a ±10 V and a 4…20 mA analog input, one analog output (0…10 V or 0…20 mA), two opto outputs and one form C relay output, plus an RS-485 (DSI) port; optional 22-COMM adapters add DeviceNet, EtherNet/IP, PROFIBUS DP, ControlNet, LonWorks or BACnet.
Technical reference
| Product name | Allen-Bradley 22B-B5P0N104 PowerFlex 40 0.75 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 22BB5P0N104 |
| Category | Variable Frequency Drives |
| Enclosure and mounting | Panel mount, IP20 open |
| EMC filtering | No integral EMC filter |
| Displacement power factor | 0.98 across the speed range |
| Product type | PowerFlex 40 AC variable frequency drive |
| Communication | RS485 |
| Nominal AC input frequency | 50/60 Hz |
| Manufacturer lifecycle status | Discontinued |
| Rated motor power | 0.75 kW (1 HP) |
| Configuration summary | The Allen-Bradley 22B-B5P0N104 PowerFlex 40 AC drive uses 200-240 V AC, 3-phase, 50/60 Hz input. Its motor rating is 0.75 kW (1 HP). Rated output current is 5 A. This frame B configuration uses panel mount, IP20 open, integral digital keypad with LED display and RS485 communication. There is no integral EMC filter. An internal brake IGBT is included; an external braking resistor is a separate item. |
| AC input | 200-240 V AC, 3-phase, 50/60 Hz |
| Rated output current | 5 A |
