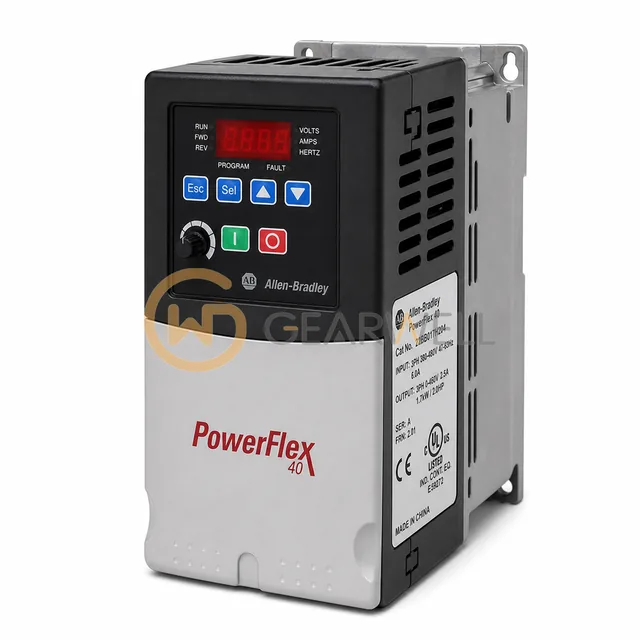

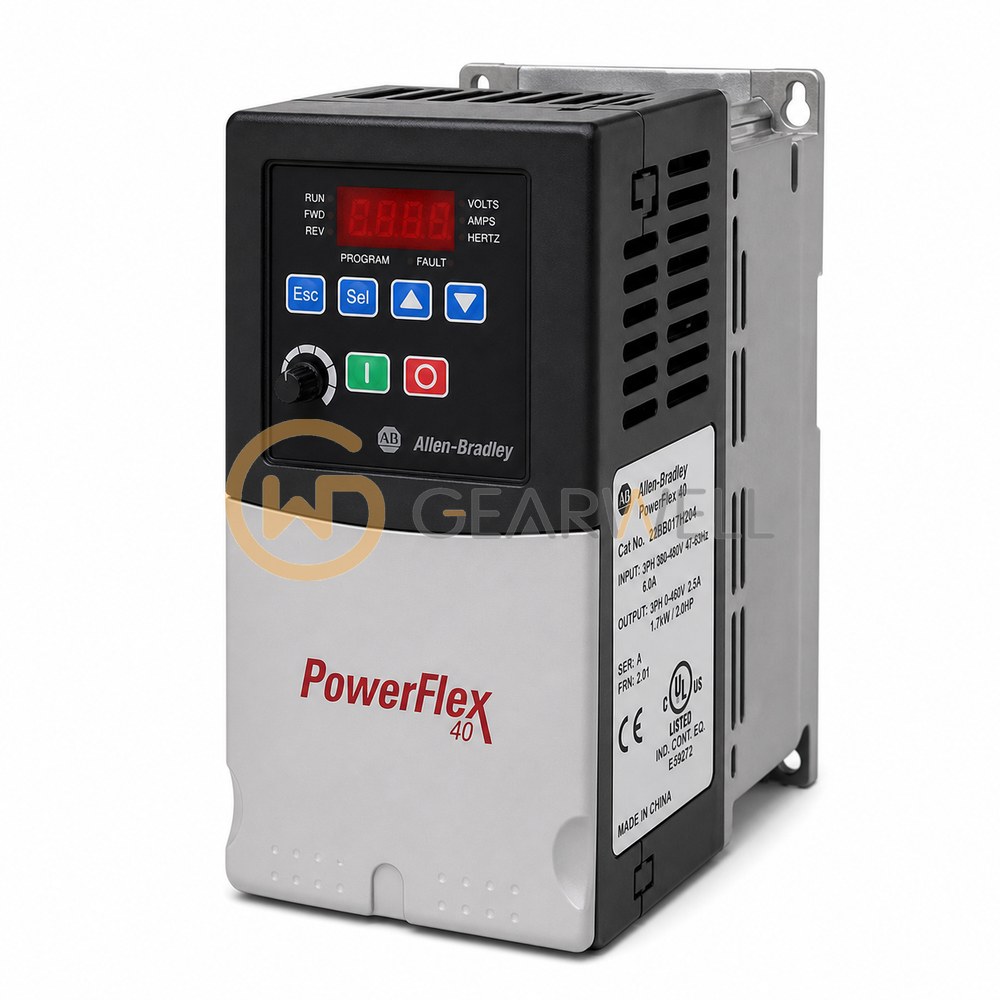

Allen-Bradley 22B-B017H204 PowerFlex 40 3.7 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 22BB017H204
- GEARWELL SKU
- GWP-000003380
- Category
- Variable Frequency Drives
Key specifications
- Enclosure and mounting
- Replacement plate drive, IP20 open
- Internal brake IGBT
- Included
- EMC filtering
- No integral EMC filter
- Frame size
- B
- Product type
- PowerFlex 40 AC variable frequency drive
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 22B-B017H204 PowerFlex 40 3.7 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 22BB017H204 |
| Category | Variable Frequency Drives |
| Enclosure and mounting | Replacement plate drive, IP20 open |
| Internal brake IGBT | Included |
| EMC filtering | No integral EMC filter |
| Frame size | B |
| Product type | PowerFlex 40 AC variable frequency drive |
| Rated motor power | 3.7 kW (5 HP) |
| Communication | RS485 |
| Manufacturer lifecycle status | Active |
| Configuration summary | The Allen-Bradley 22B-B017H204 PowerFlex 40 AC drive uses 200-240 V AC, 3-phase, 50/60 Hz input. Its motor rating is 3.7 kW (5 HP). This frame B configuration uses replacement plate drive, IP20 open, integral digital keypad with LED display and RS485 communication. There is no integral EMC filter. An internal brake IGBT is included; an external braking resistor is a separate item. The output-current rating requires confirmation from the exact unit nameplate because the manufacturer sources are inconsistent. |
| AC input | 200-240 V AC, 3-phase, 50/60 Hz |
