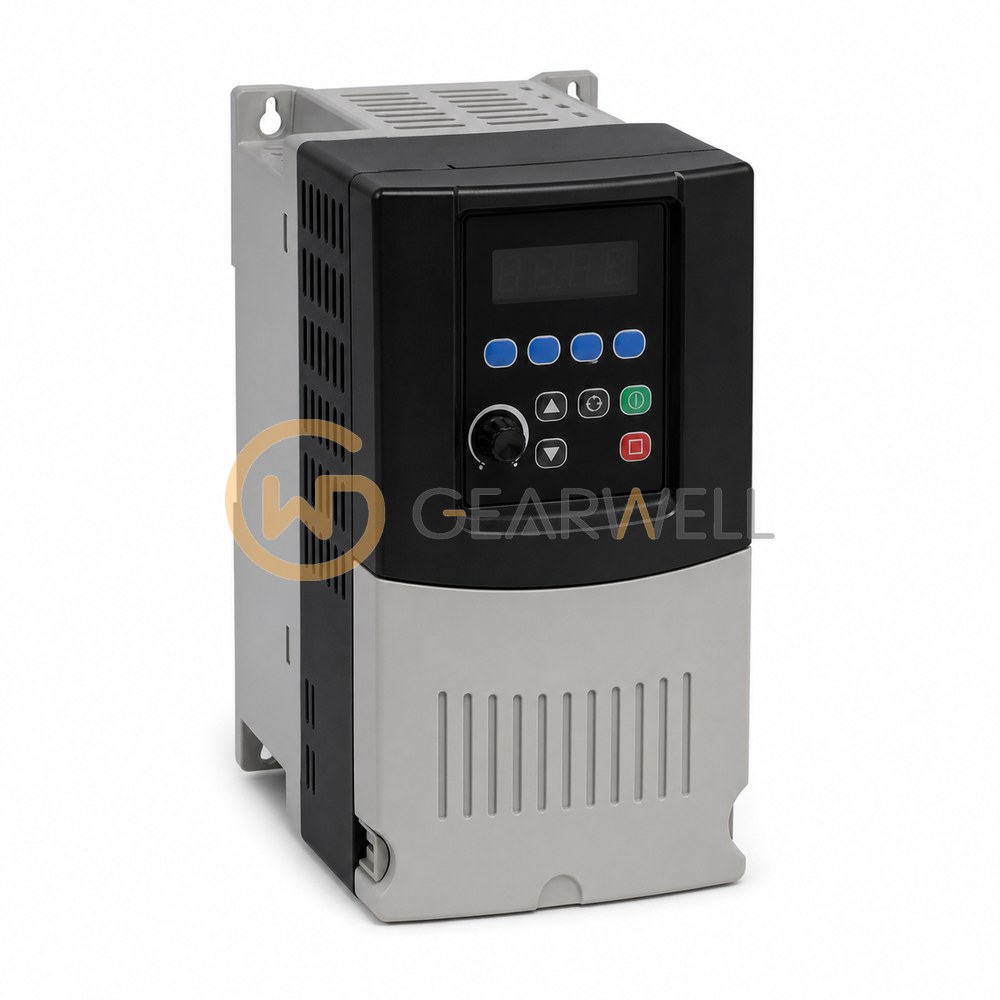

Allen-Bradley 22B-A8P0N114 PowerFlex 40 1.5 kW AC Drive

Product overview

The Allen-Bradley 22B-A8P0N114 is a PowerFlex 40 AC drive from Rockwell's PowerFlex family. It is rated 1.5 kW (2.0 HP) with 8.0 A output current, for 200…240 V AC 1-phase input and 0…230 V 3-phase output, in an IP20 / NEMA/UL Type Open panel mount design (frame B). The IP20 version is rated for -10…+50 °C ambient. It has an integral "S Type" EMC filter. It has an internal brake IGBT for dynamic braking. It uses sensorless vector control with autotune, programmable output frequency 0…400 Hz, 150% overload for 60 s or 200% for 3 s, an adjustable PWM carrier of 2…16 kHz, integral PID and timer, counter, basic logic and StepLogic functions. I/O is 24 V DC sink or source with three dedicated and four programmable digital inputs, a ±10 V and a 4…20 mA analog input, one analog output (0…10 V or 0…20 mA), two opto outputs and one form C relay output, plus an RS-485 (DSI) port; optional 22-COMM adapters add DeviceNet, EtherNet/IP, PROFIBUS DP, ControlNet, LonWorks or BACnet.
