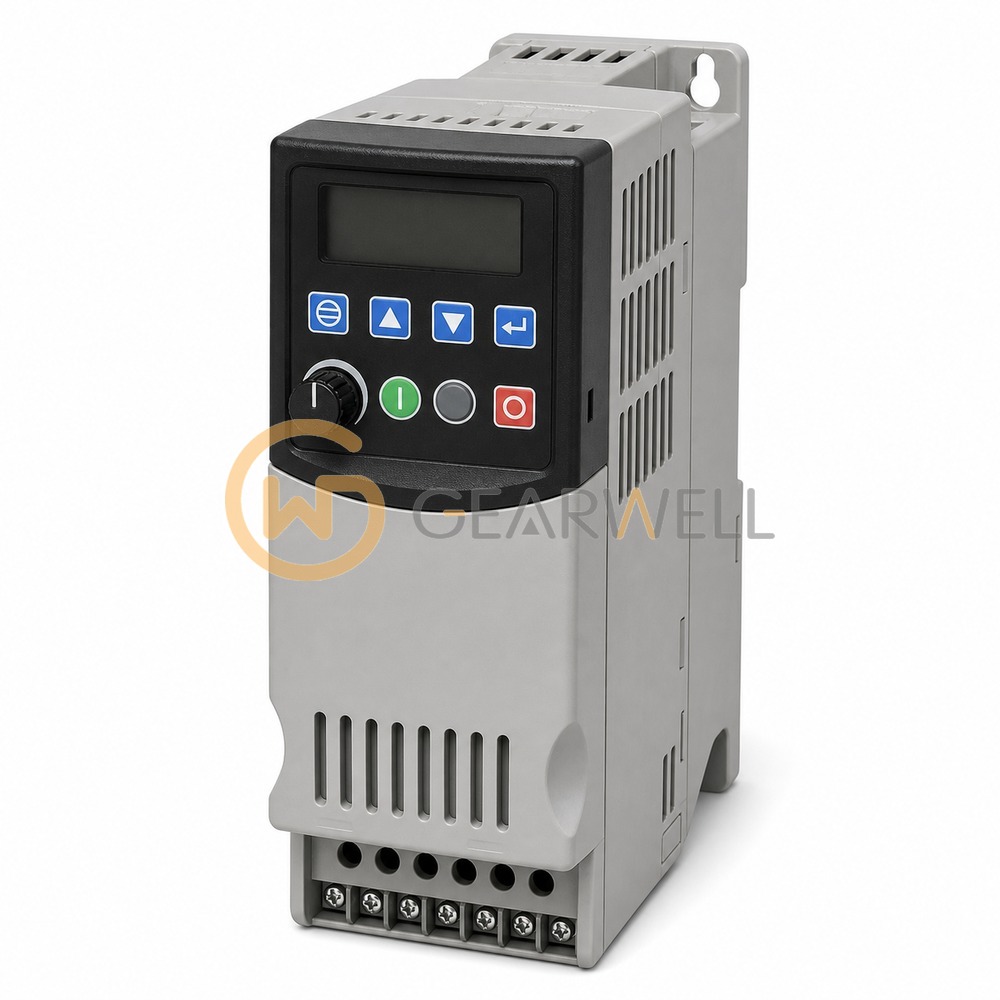

Allen-Bradley 22AV4P5N104 PowerFlex 4 AC Drive

Product overview

The Allen-Bradley 22A-V4P5N104 is a PowerFlex 4 AC drive from Rockwell's PowerFlex family. It is rated 0.75 kW (1.0 HP) with 4.5 A output current, for 100…120 V AC 1-phase input and 0…230 V 3-phase output, in an IP20 / NEMA/UL Type Open panel mount design (frame B). The IP20 version is rated for -10…+50 °C ambient. It has an internal brake IGBT for dynamic braking. Input current is 18.0 A (2.25 kVA) over a 90…126 V AC supply range. It uses V/Hz control with automatic boost (IR compensation) and slip compensation, programmable output frequency 0…240 Hz, 150% overload for 60 s or 200% for 3 s and an adjustable PWM carrier of 2…16 kHz. The integral keypad has a potentiometer and a 4-digit display; I/O is 24 V DC sink or source with three dedicated inputs (stop, start, direction), two programmable digital inputs, a 0…10 V and a 4…20 mA analog input, and one form C relay output, plus an RS-485 (DSI) port.
