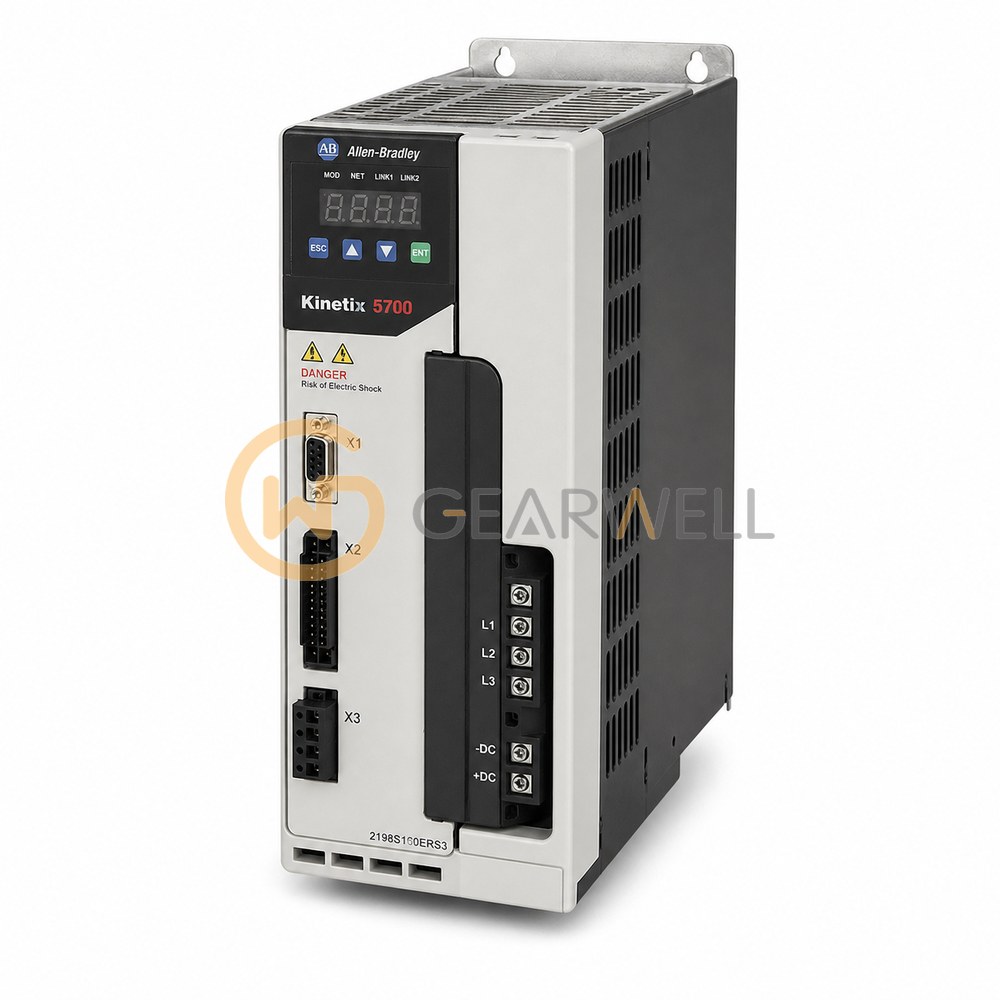

Allen-Bradley 2198-S160-ERS3 Kinetix 5700 Single-Axis Servo Inverter

Brand: Allen-Bradley
Model: 2198S160ERS3
GEARWELL SKU: GWP-000002773
Category: Servo Systems

Key specifications

Module width: 100 mm
Axis count: 1
Product type: Single-axis inverter
Control power: 21.6-26.4 V DC (24 V DC nominal)
Product series: Kinetix 5700

Kinetix 2198 catalog number list (PDF, 126 KB)

Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Product overview

The Allen-Bradley 2198-S160-ERS3 is a Kinetix 5700 single-axis inverter from Rockwell's Kinetix servo drive family. It delivers 85.0 A rms continuous and 160.0 A rms peak output current (peak current duration 1.0 second), with 60.1 kW continuous output power at 480V nominal, and draws 92.3 A DC from the 276…747V DC bus. Kinetix 5700 drives are designed for machines with high axis counts and high power requirements; drive modules connect and operate by using ControlLogix, GuardLogix, CompactLogix or Compact GuardLogix controllers with the Studio 5000 Logix Designer application. The family is TÜV certified for functional safety up to SIL CL3 (IEC 61800-5-2, IEC 61508 and IEC 62061) and PL e, Category 3 (ISO 13849-1). It has IP20 protection and a 0…50 °C operating ambient temperature.

Technical reference

Product name	Allen-Bradley 2198-S160-ERS3 Kinetix 5700 Single-Axis Servo Inverter
Brand	Allen-Bradley
Model	2198S160ERS3
Category	Servo Systems
Module width	100 mm
Axis count	1
Product type	Single-axis inverter
Control power	21.6-26.4 V DC (24 V DC nominal)
Product series	Kinetix 5700
DC-bus input voltage	276-747 V DC
Safety interface	Safe Torque Off (STO)
Network interface	EtherNet/IP
Official catalog number	2198-S160-ERS3
Peak output current (RMS)	160 A RMS; up to 1.0 s
Continuous output power	30.1 kW at 240 V AC nominal three-phase supply; 60.1 kW at 480 V AC nominal three-phase supply
Continuous output current (RMS)	85 A RMS
