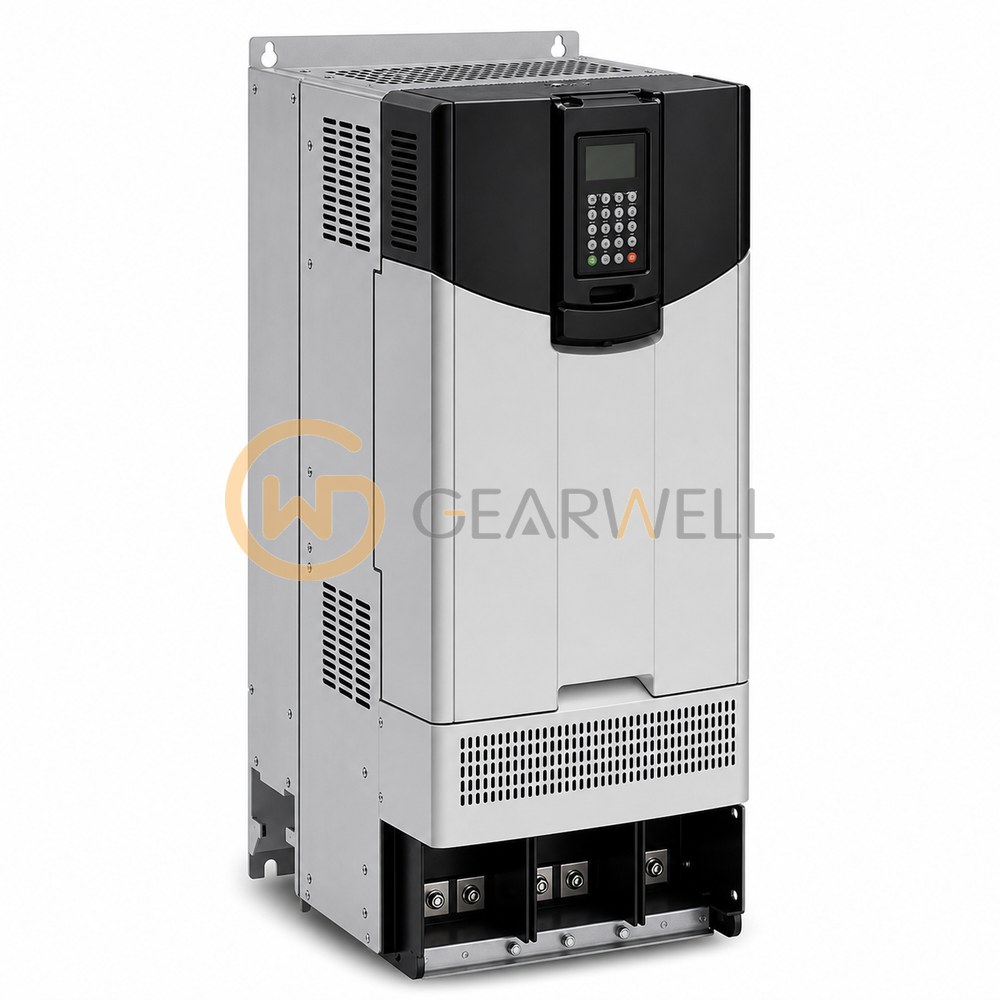

Allen-Bradley 20G21GC030JA0NNNNN PowerFlex 755TS 400 V AC 15 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20G21GC030JA0NNNNN
- GEARWELL SKU
- GWP-000003876
- Category
- Variable Frequency Drives
Key specifications
- Input configuration
- AC input with precharge and DC terminals
- Drive frame
- 3
- Nominal input voltage
- 400 V AC, three-phase
- Rated motor output
- 30 A continuous, 15 kW normal duty; 11 kW heavy duty
- Operator interface
- No factory-fitted HIM
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 20G21GC030JA0NNNNN PowerFlex 755TS 400 V AC 15 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G21GC030JA0NNNNN |
| Category | Variable Frequency Drives |
| Input configuration | AC input with precharge and DC terminals |
| Drive frame | 3 |
| Nominal input voltage | 400 V AC, three-phase |
| Rated motor output | 30 A continuous, 15 kW normal duty; 11 kW heavy duty |
| Operator interface | No factory-fitted HIM |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Built-in communication | Dual embedded EtherNet/IP ports |
| Configured enclosure | IP54, NEMA/UL Type 12 |
| Protection and cooling | Standard corrosive-gas protection; forced-air cooling |
