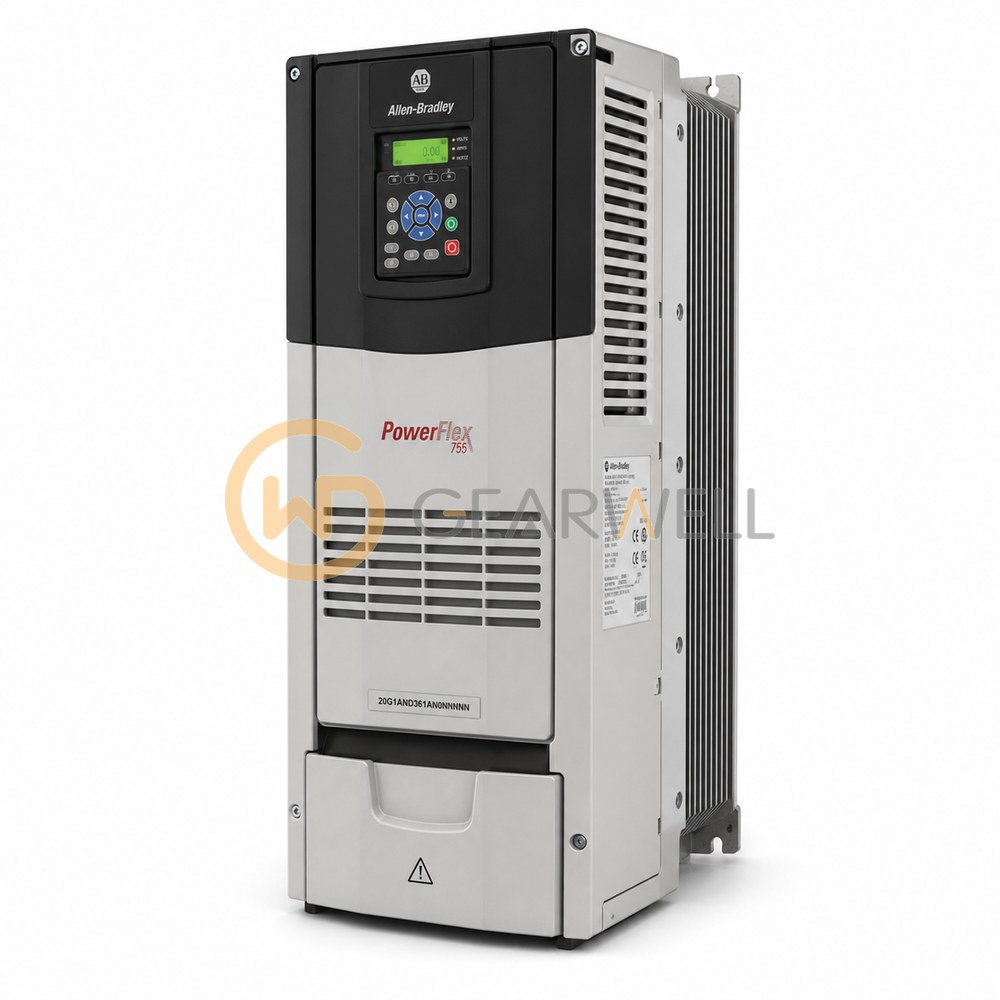

Allen-Bradley 20G1AND361AN0NNNNN PowerFlex 755 480 V AC 300 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20G1AND361AN0NNNNN
- GEARWELL SKU
- GWP-000002934
- Category
- Variable Frequency Drives
Key specifications
- Drive family
- PowerFlex 755
- Drive frame
- 7
- Product type
- Variable-frequency AC motor drive
- Manufacturer lifecycle status
- discontinued
- Rated motor output
- 361 A continuous, 300 hp normal duty; 250 hp heavy duty
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G1AND361AN0NNNNN is a PowerFlex 755 AC drive for the 480 V AC / 650 V DC class in frame 7, built as an IP00, NEMA/UL Type Open wall-mount chassis with AC input with precharge and no DC terminals. Rockwell rates it at 361 A and 300 Hp for normal duty and 302 A and 250 Hp for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and no internal dynamic braking transistor. Wall-mount frames 1…7 include a DC link choke, and frame 6…7 Open Type drives can be converted to IP20, NEMA/UL Type 1 with the 20-750-NEMA1-Fx kit. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G1AND361AN0NNNNN PowerFlex 755 480 V AC 300 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G1AND361AN0NNNNN |
| Category | Variable Frequency Drives |
| Drive family | PowerFlex 755 |
| Drive frame | 7 |
| Product type | Variable-frequency AC motor drive |
| Manufacturer lifecycle status | discontinued |
| Rated motor output | 361 A continuous, 300 hp normal duty; 250 hp heavy duty |
| Nominal input voltage | 480 V AC, three-phase |
| Built-in communication | Embedded EtherNet/IP port |
| Configured enclosure | IP00, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper removed |
